Evaporative Emissions System: Maintenance

Normal maintenance of the Fuel Evaporation Emission Control System is not required. Should any of the components of the system become damaged or fail to operate properly, they should be replaced. When inspecting or repairing the system, check all clips and hose connections for tightness. Make sure that no fuel can pass into the activated carbon canister.

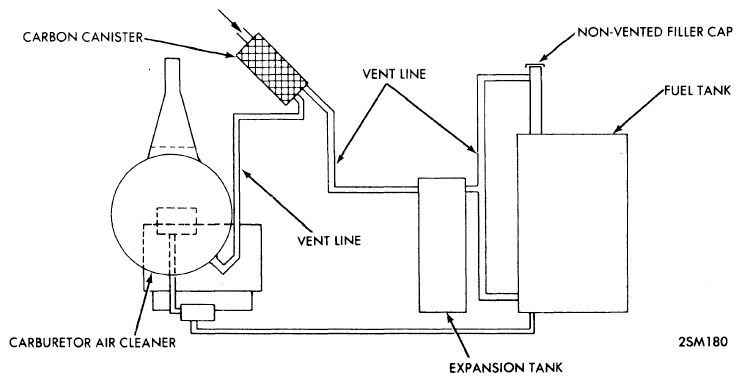

Fig 1: AUDI FUEL EVAPORATION EMISSION CONTROL SYSTEM
G09309563Courtesy of AUDI OF AMERICA, LLC
