Front Suspension: Description

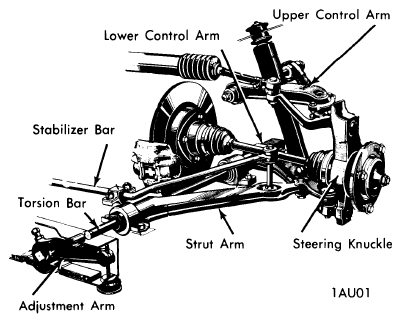

Audi Super 90 is front wheel drive using independent type suspension with torsion bars. Steering knuckle is mounted between upper and lower control arm and supports drive axle bearing carrier. Steering knuckle is connected to upper and lower control arms by means of ball joints. Strut arms are connected at front to lower control arms and at rear to chassis. Torsion bars are connected at front to lower control arms and at rear to adjustment levers. Shock absorbers are connected at bottom to lower control arms and at top to inner fender panel. A stabilizer bar is mounted to chassis and connected at ends to strut arms.
