Wiring Diagrams

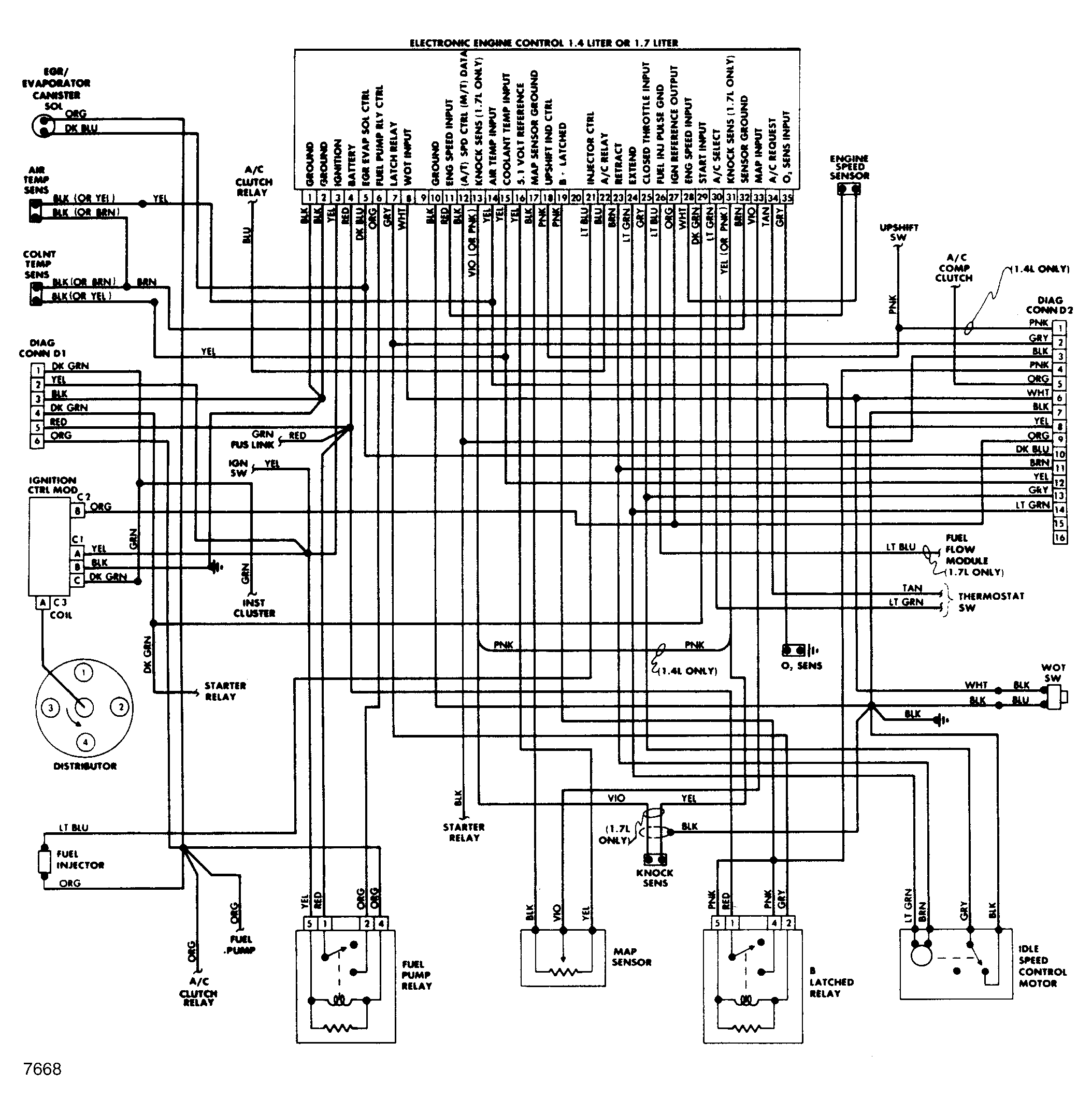

Fig 1: 1986 TBI System Wiring Diagram 1.4L & 1.7L

G7668

Fig 2: 1987 TBI System Wiring Diagram 1.4L & 1.7L

G7668

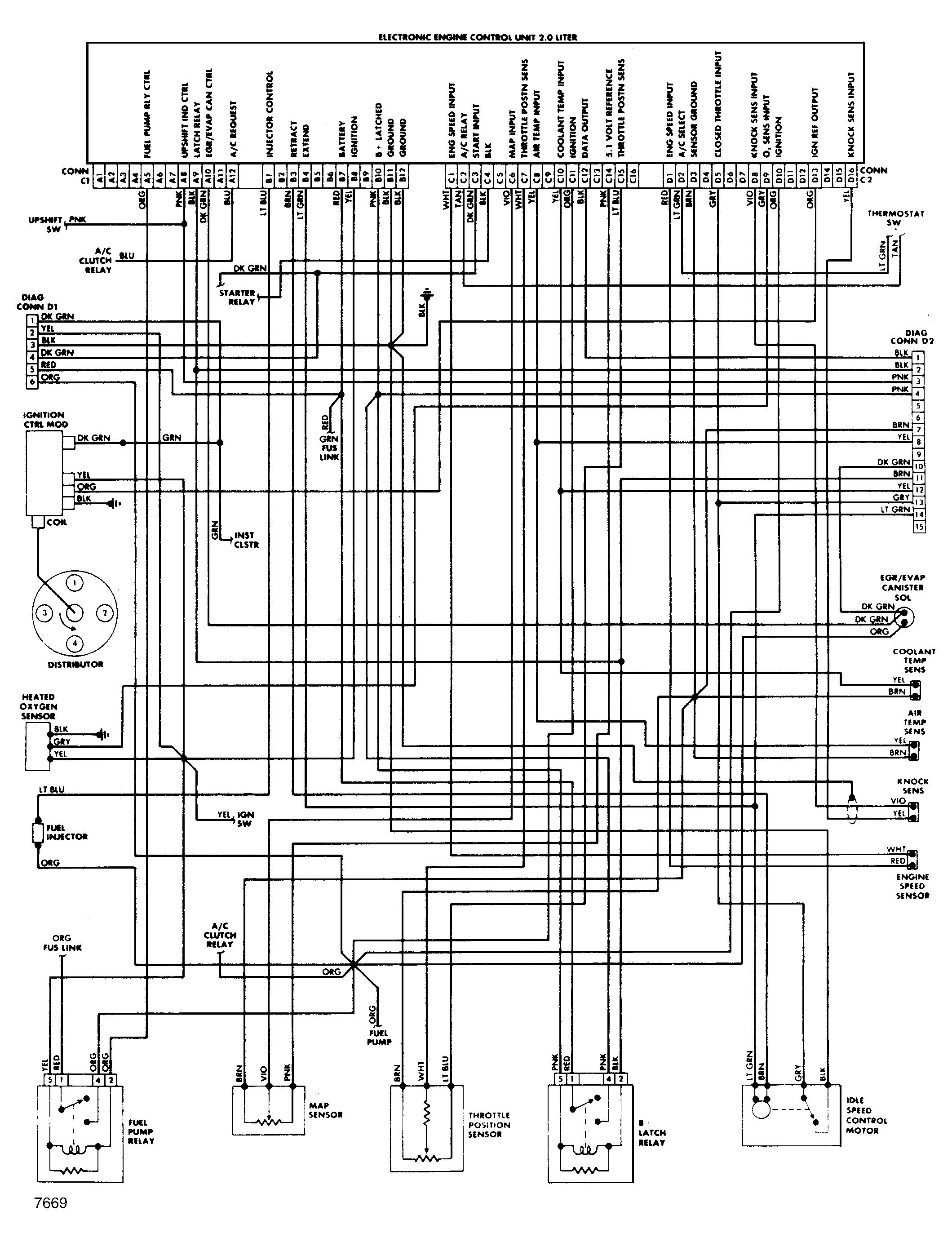

Fig 3: 1987 TBI System Wiring Diagram GTA 2.0L

G7669
