Tests 4 & 4A: System Operational Check

These tests check engine start-up circuit, fuel injector, closed loop air/fuel mixture function, coolant temperature sensor function, MAT sensor function, detonation sensor closed loop ignition retard/advance function, EGR valve and canister purge solenoid function, idle speed control and A/C control functions.

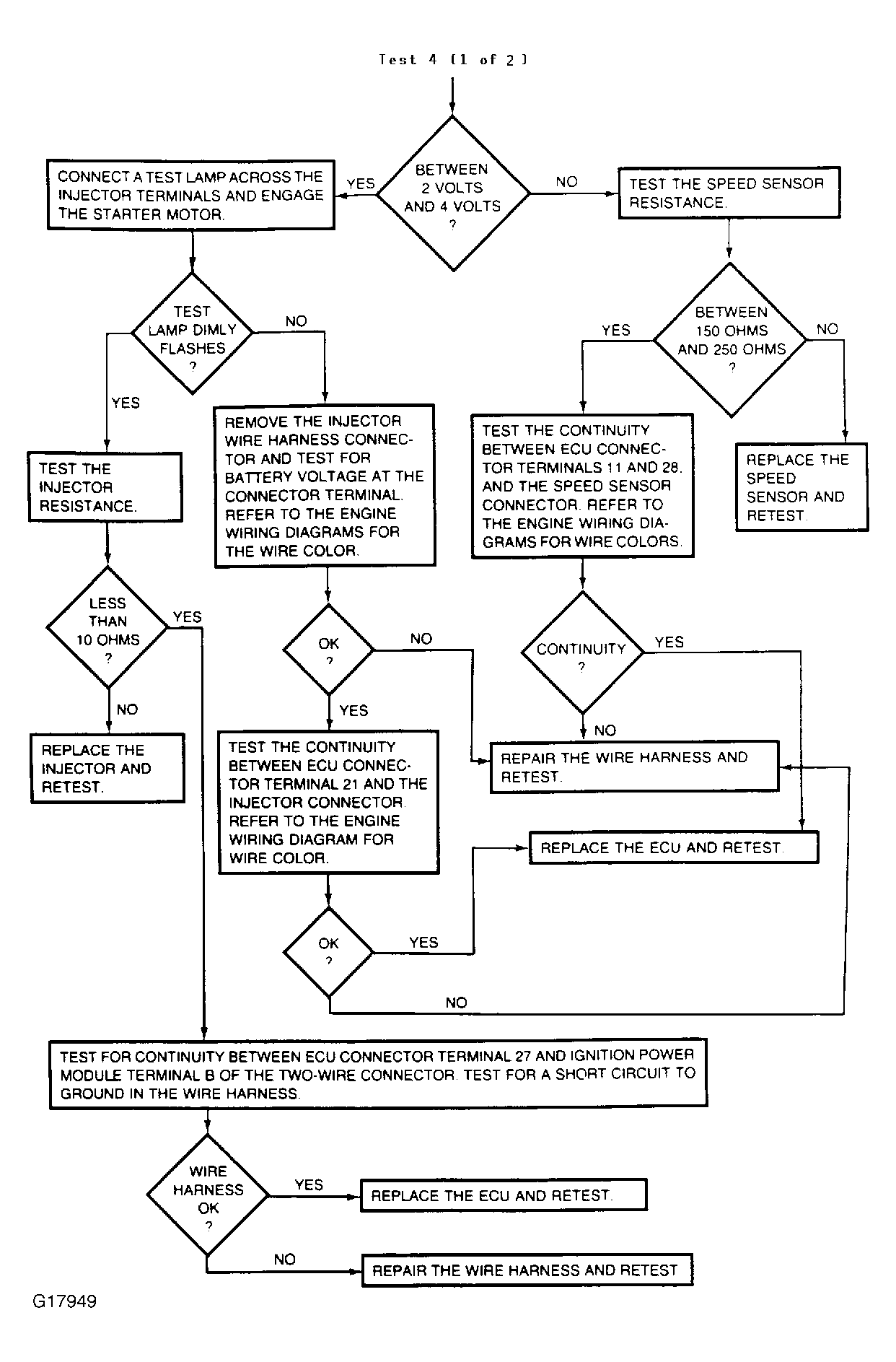

Fig 1: Test 4, System Operational Check (1 Of 2)

G17949

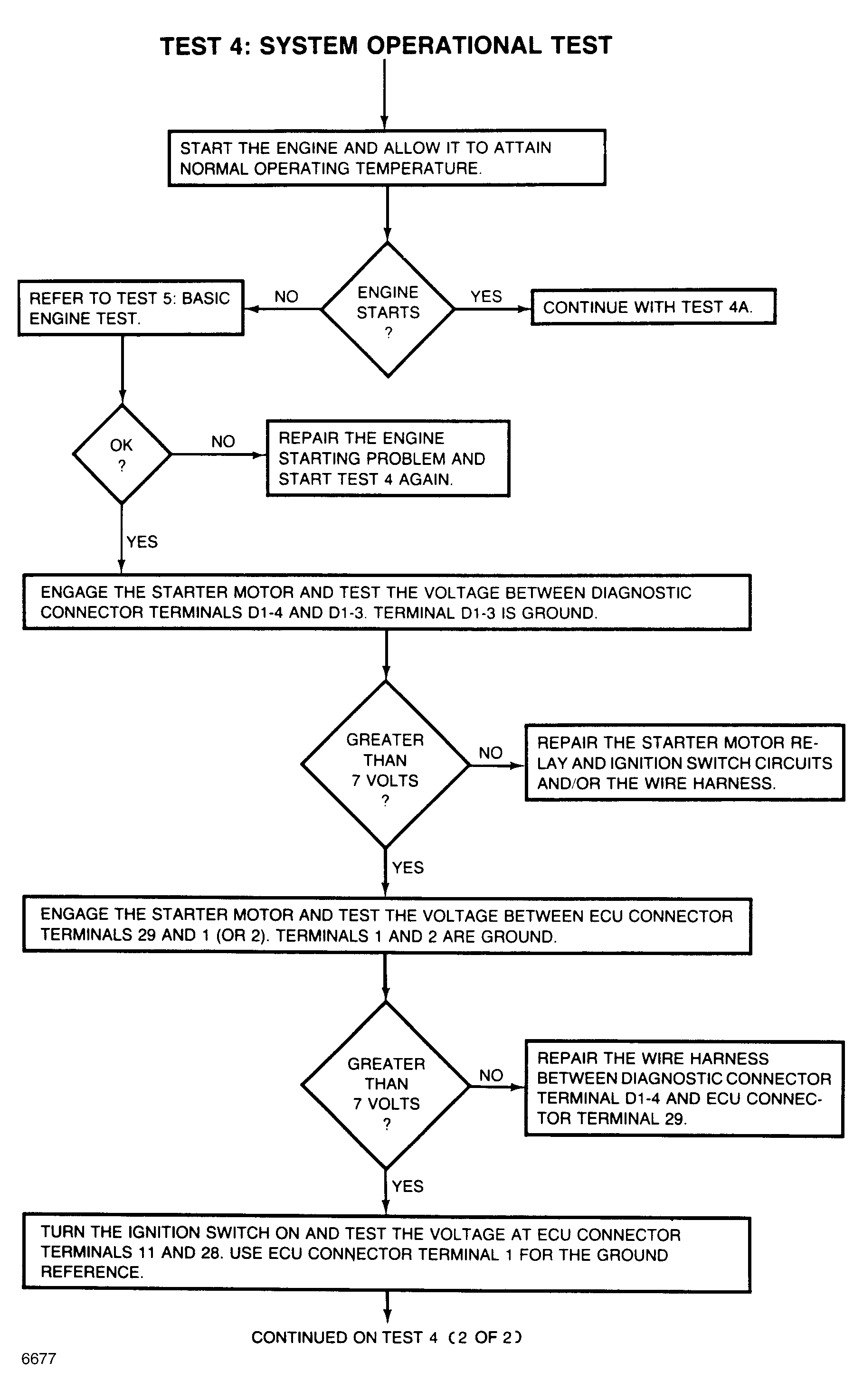

Fig 2: Test 4, System Operational Check (2 Of 2)

G6677

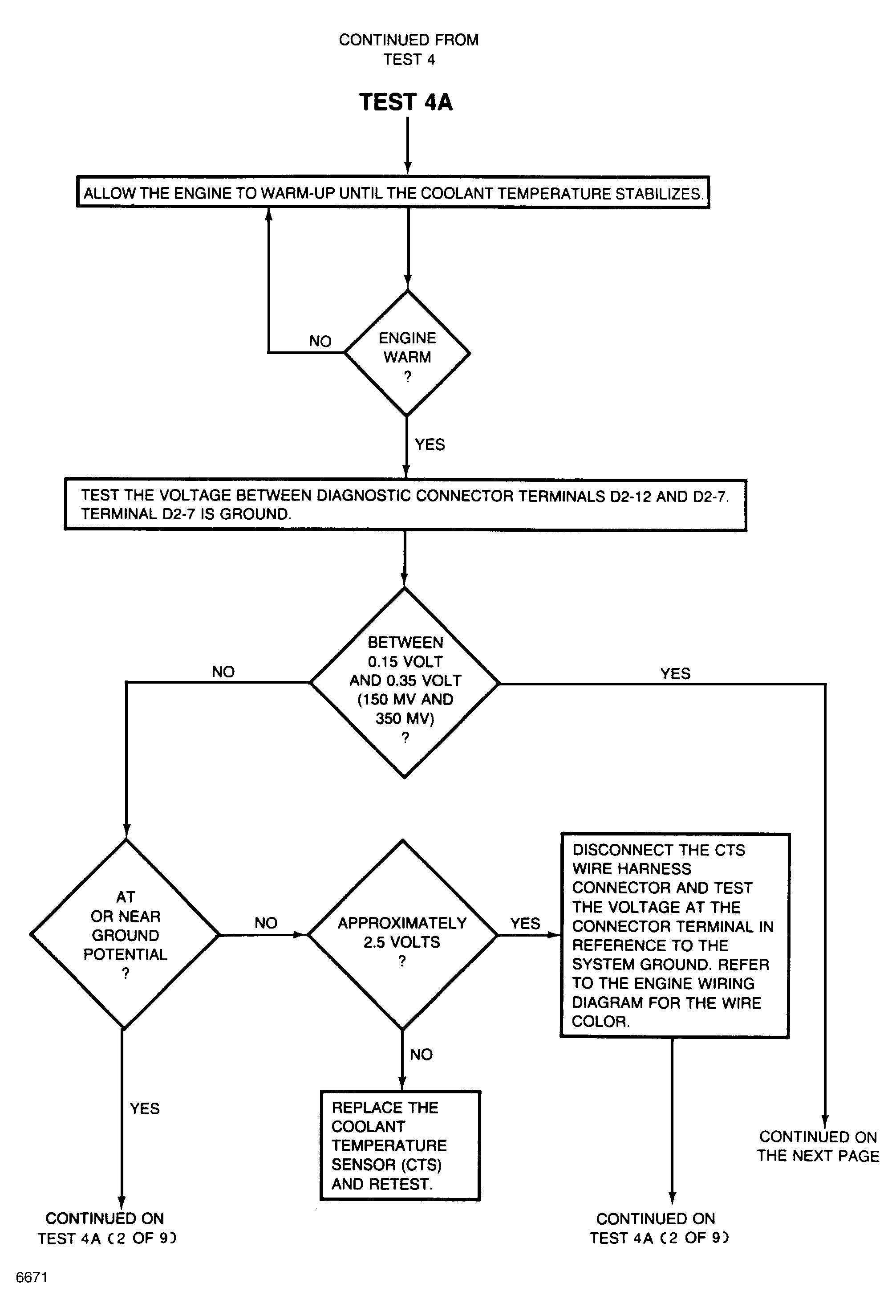

Fig 3: Test 4A, System Operational Check (1 Of 9)

G6671

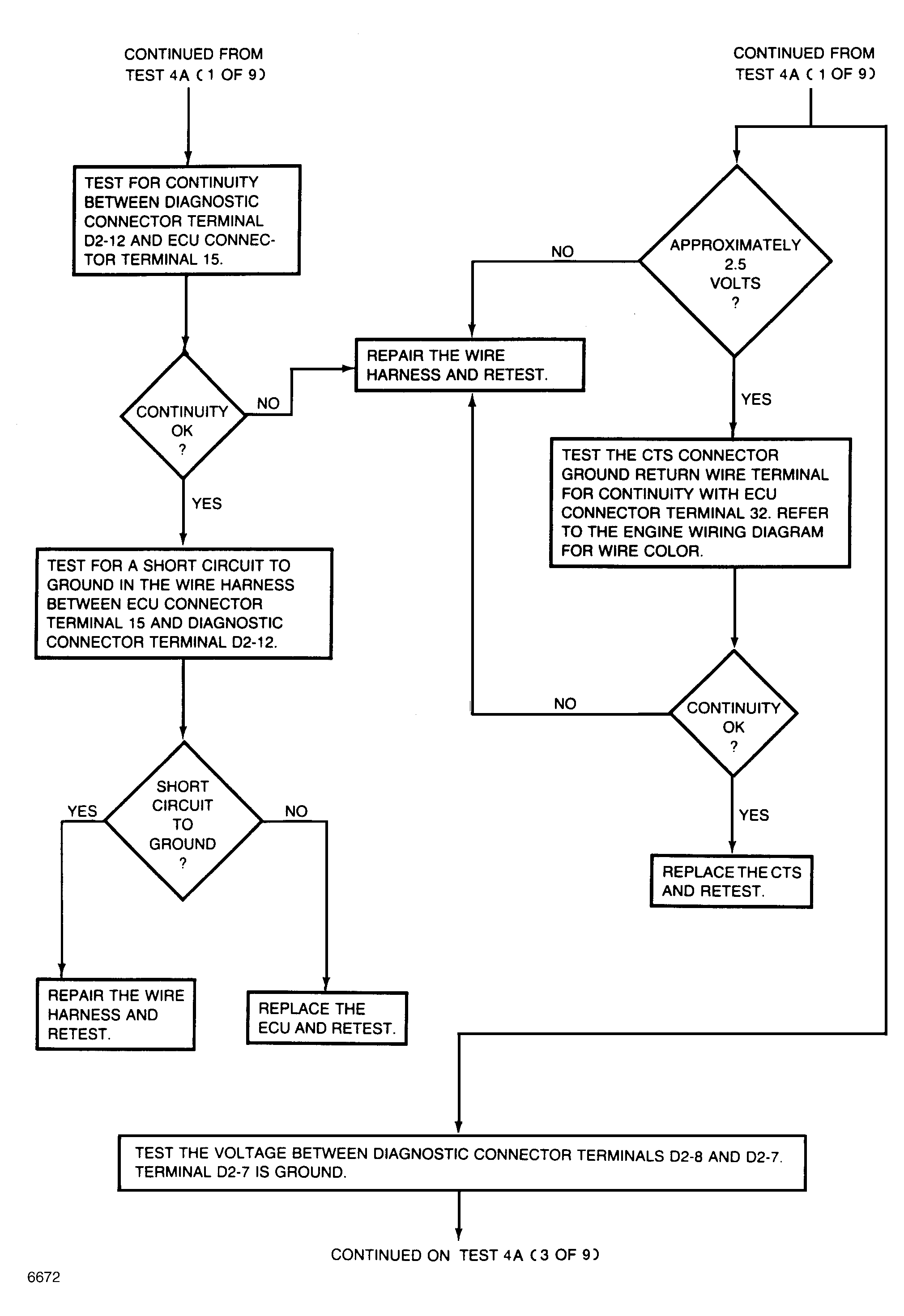

Fig 4: Test 4A, System Operational Check (2 Of 9)

G6672

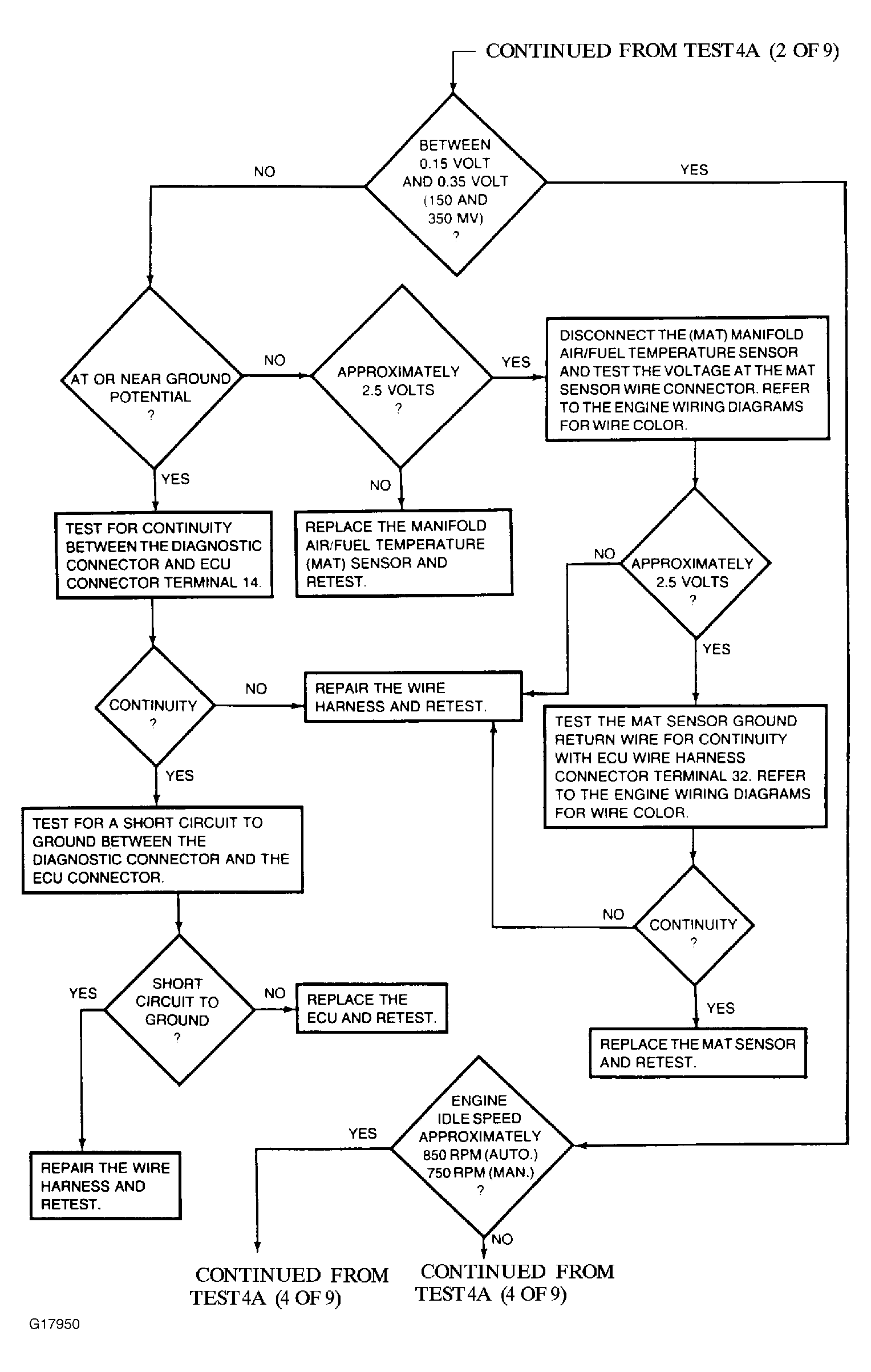

Fig 5: Test 4A, System Operational Check (3 Of 9)

G17950

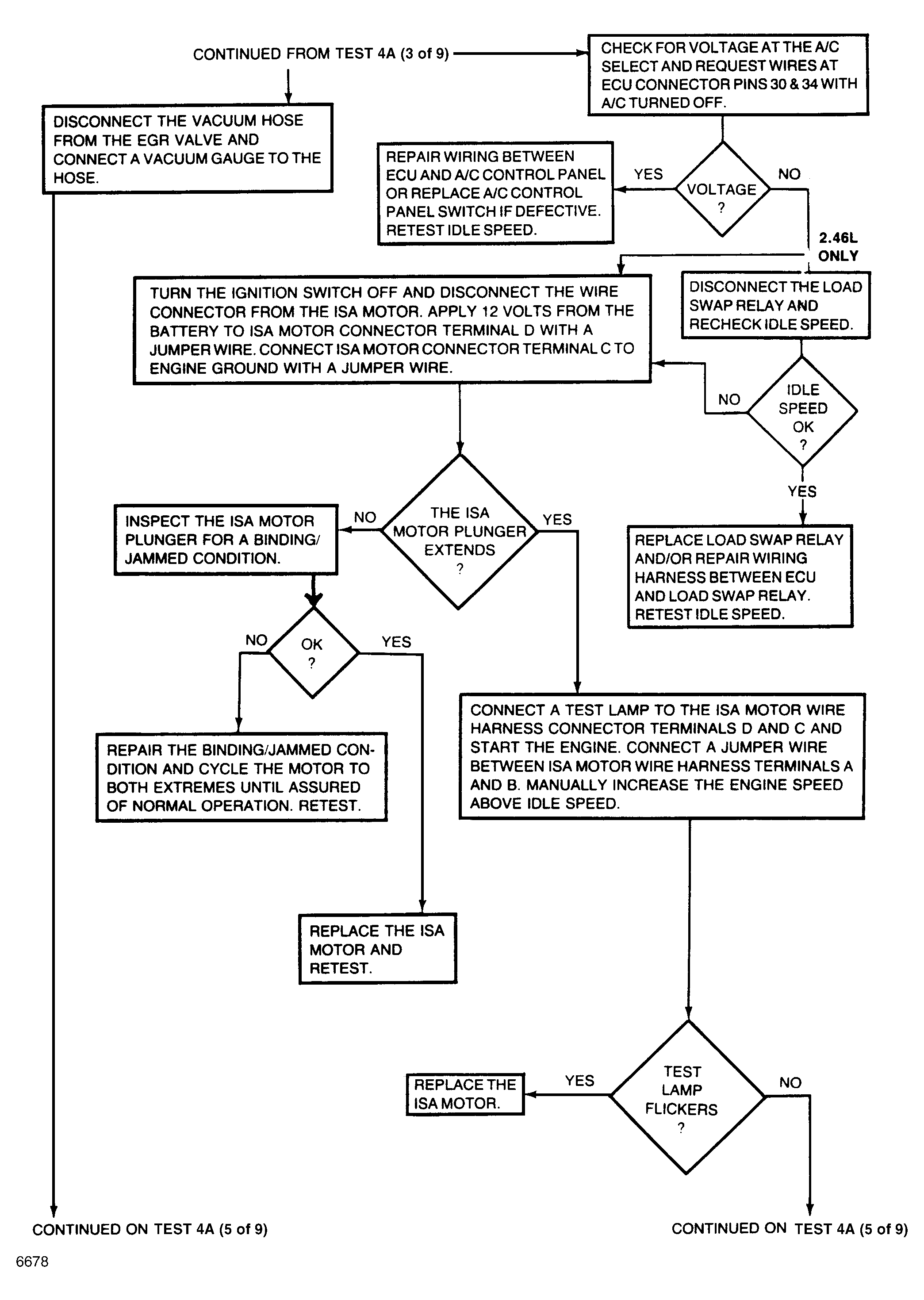

Fig 6: Test 4A, System Operational Check (4 Of 9)

G6678

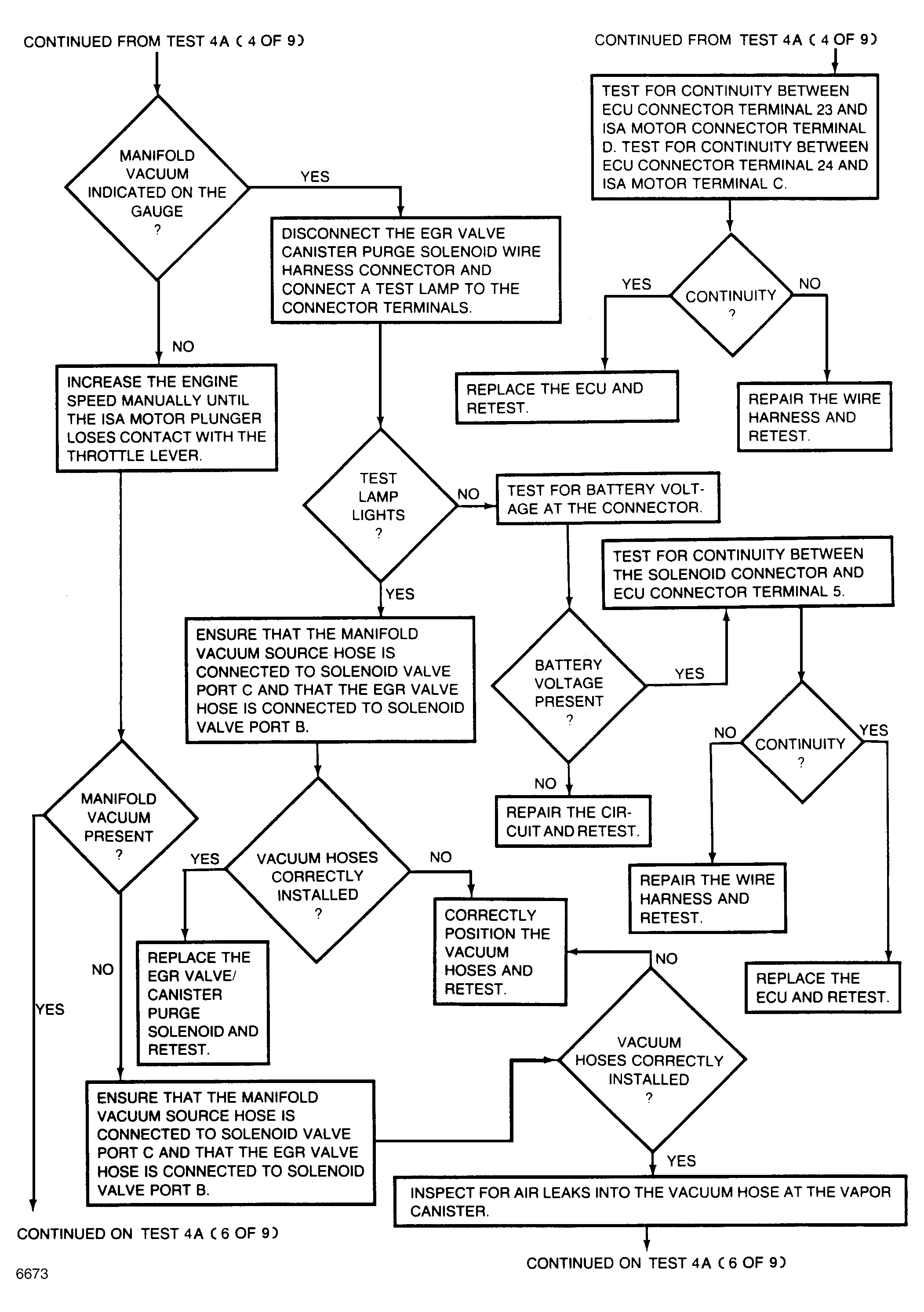

Fig 7: Test 4A, System Operational Check (5 Of 9)

G6673

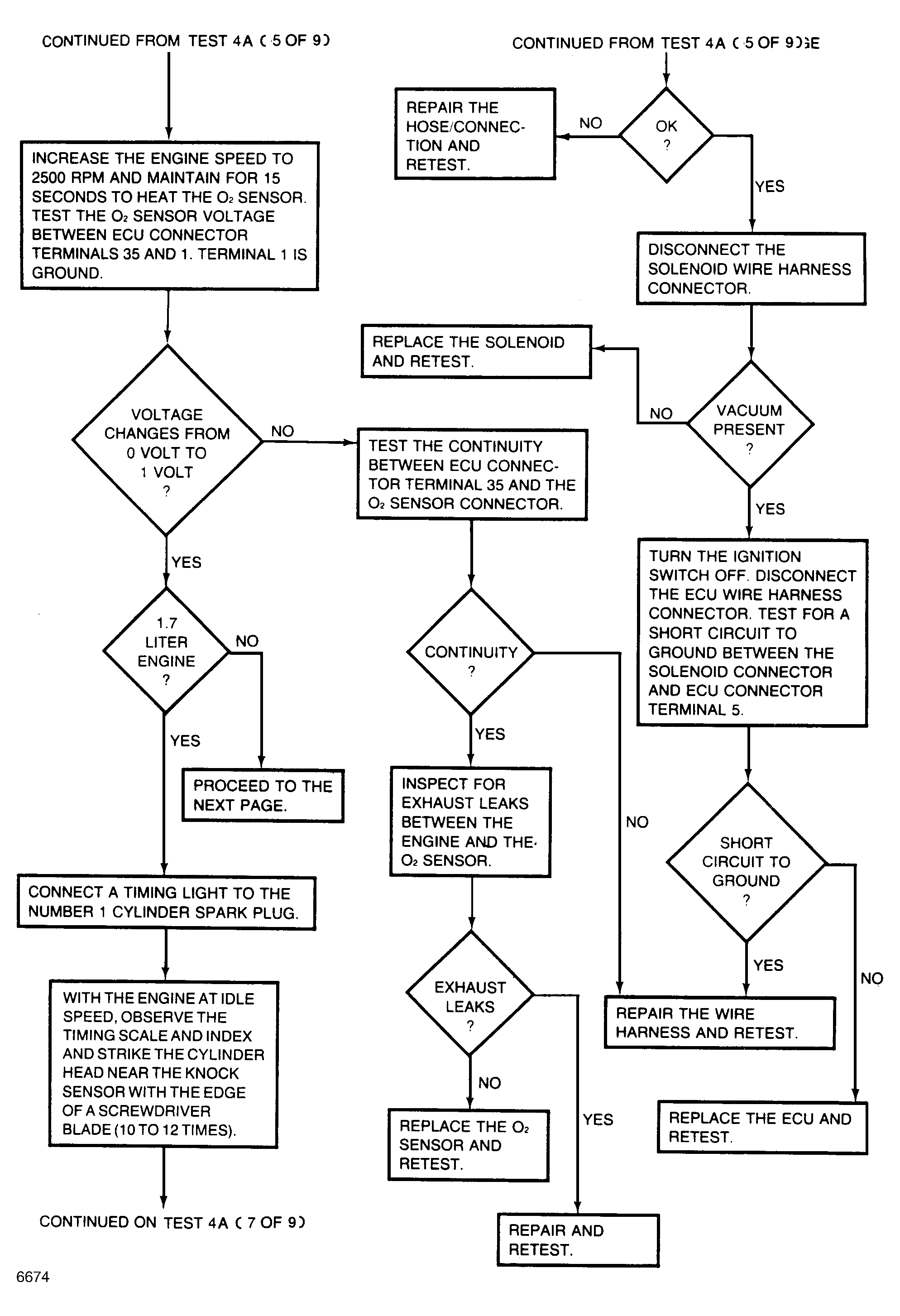

Fig 8: Test 4A, System Operational Check (6 Of 9)

G6674

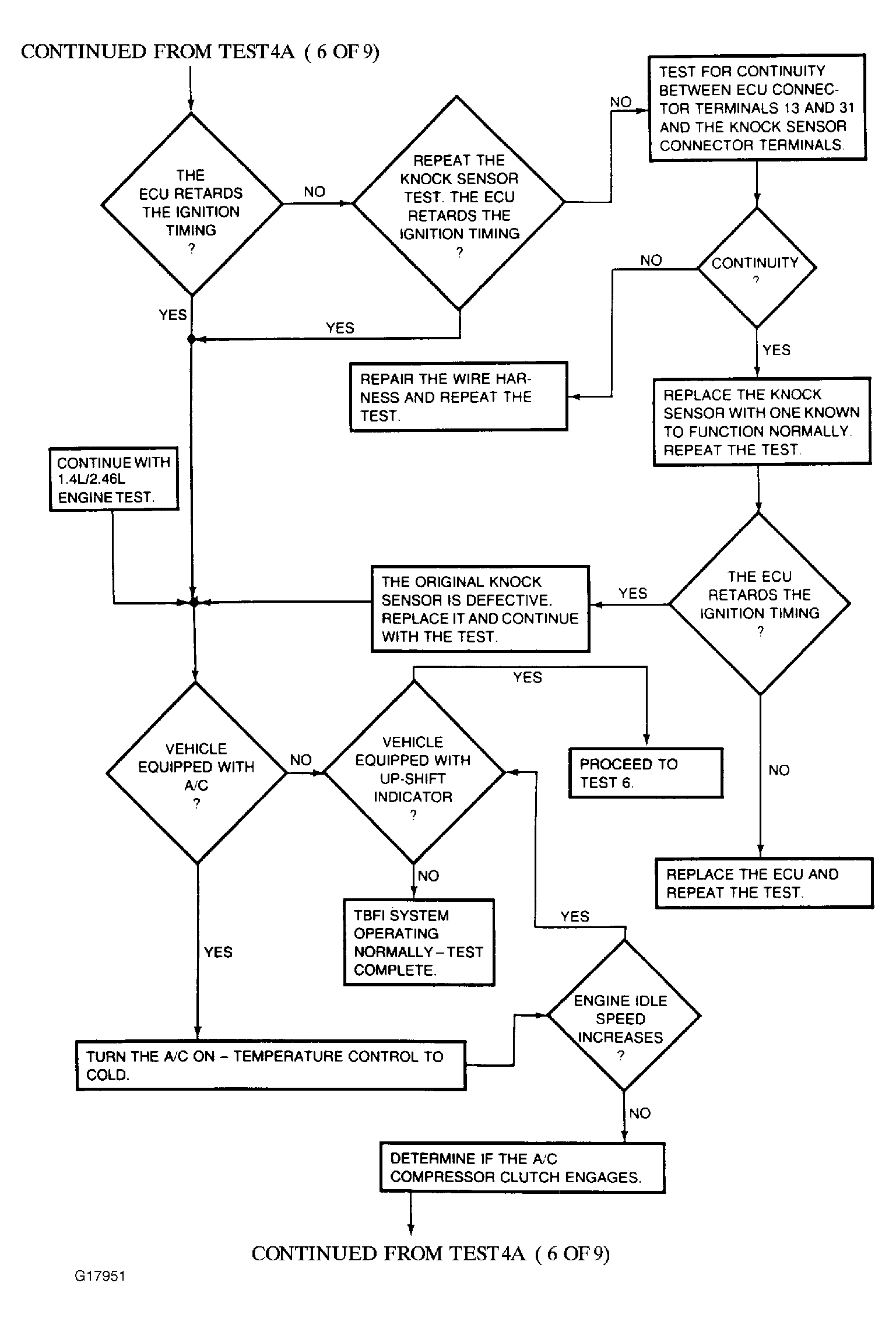

Fig 9: Test 4A, System Operational Check (7 Of 9)

G17951

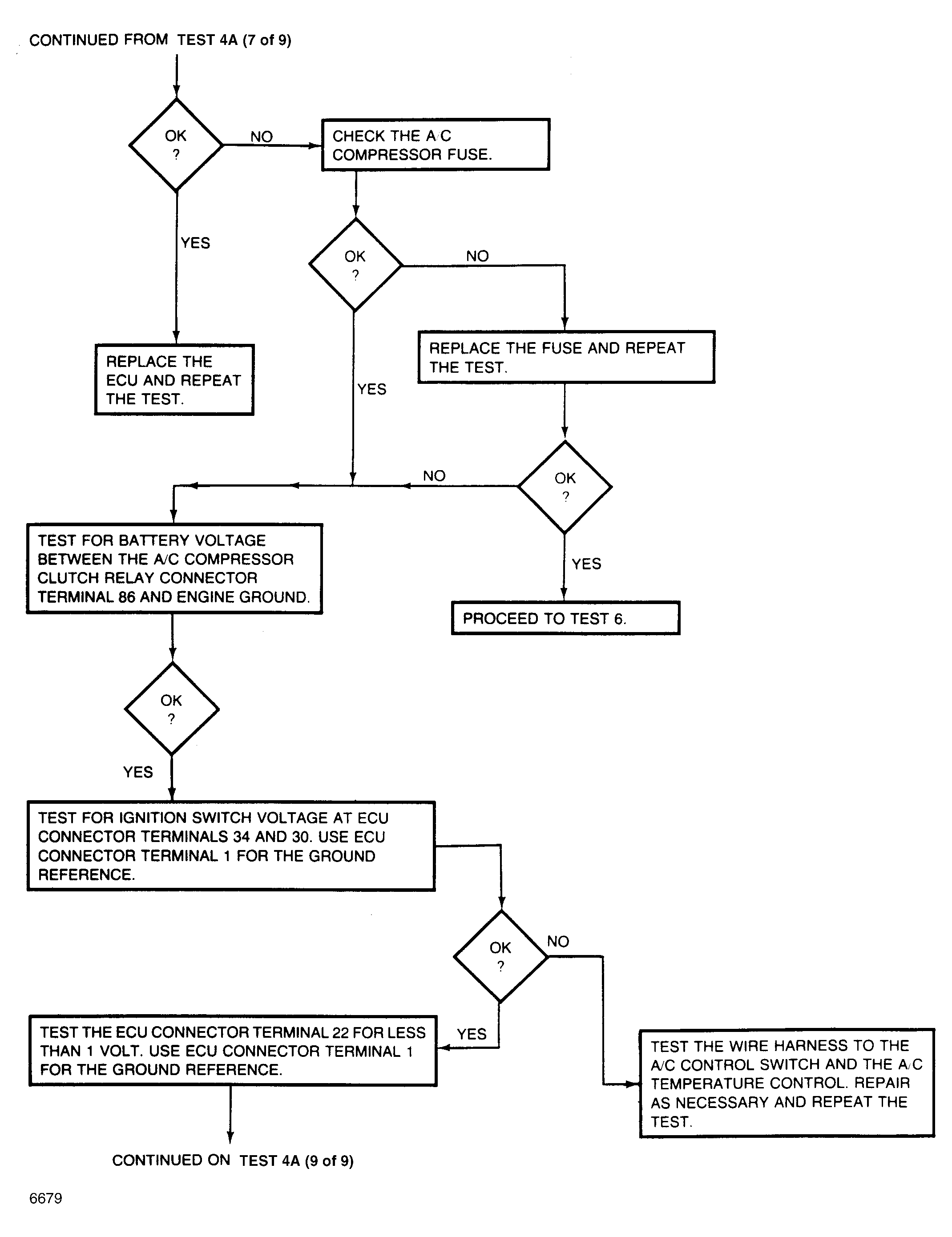

Fig 10: Test 4A, System Operational Check (8 Of 9)

G6679

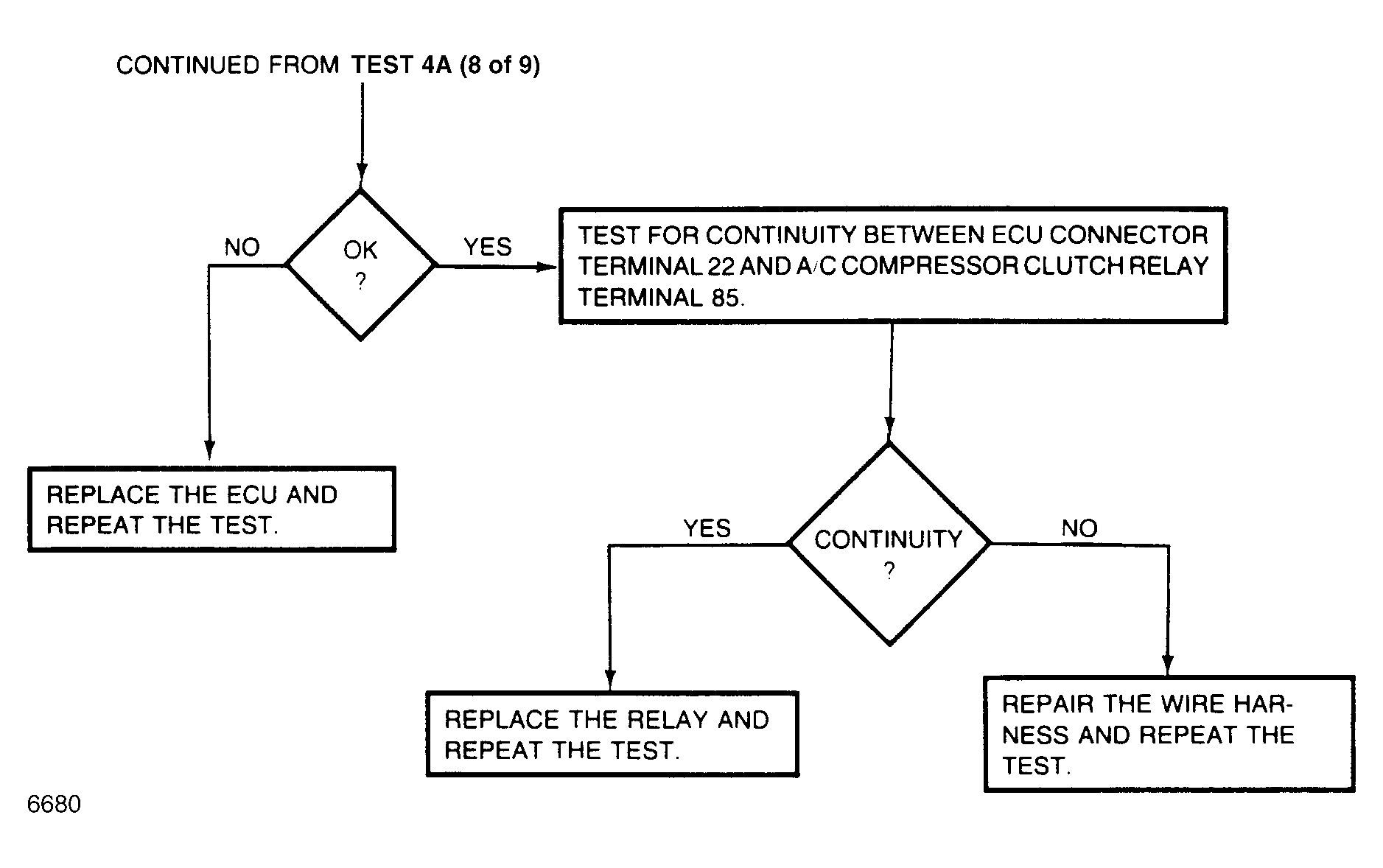

Fig 11: Test 4A, System Operational Check (9 Of 9)

G6680
