Test No. 7

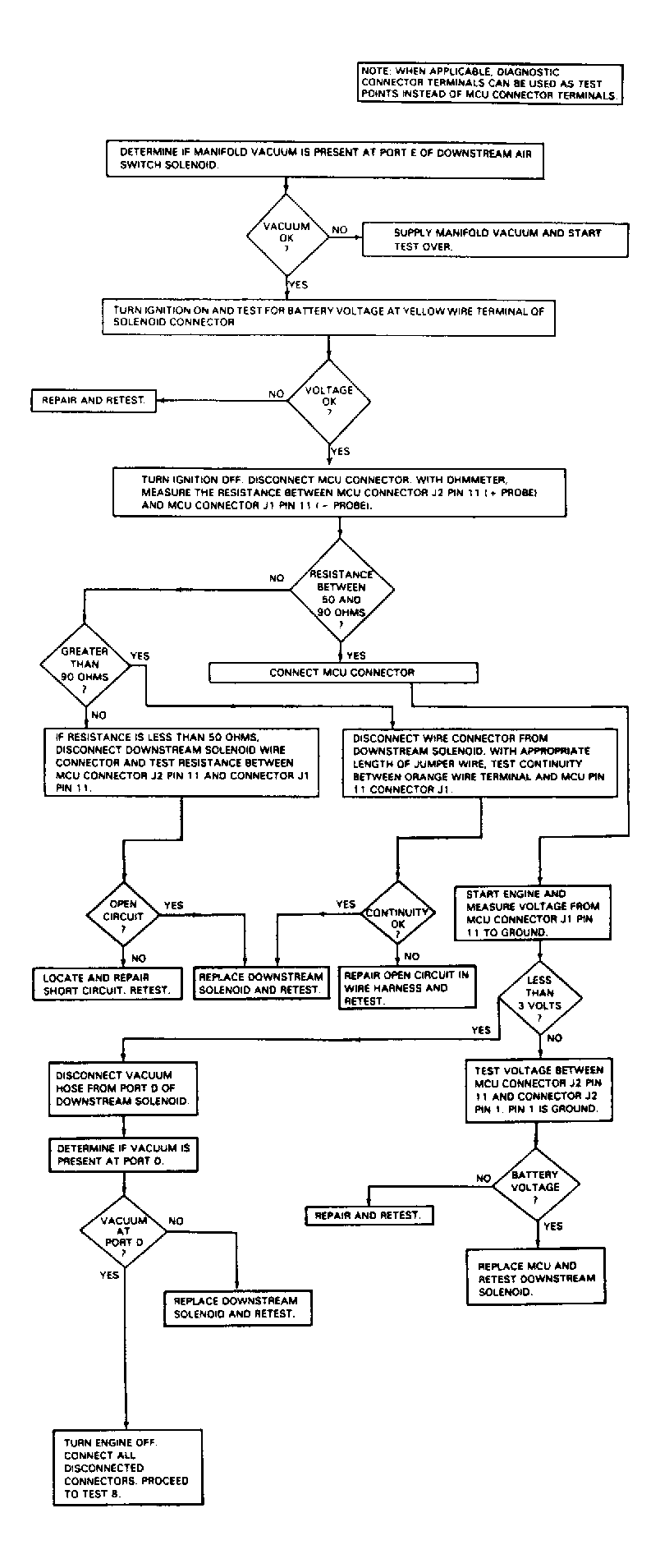

Fig 1: Test No. 7: Downstream Solenoid Test

G2375

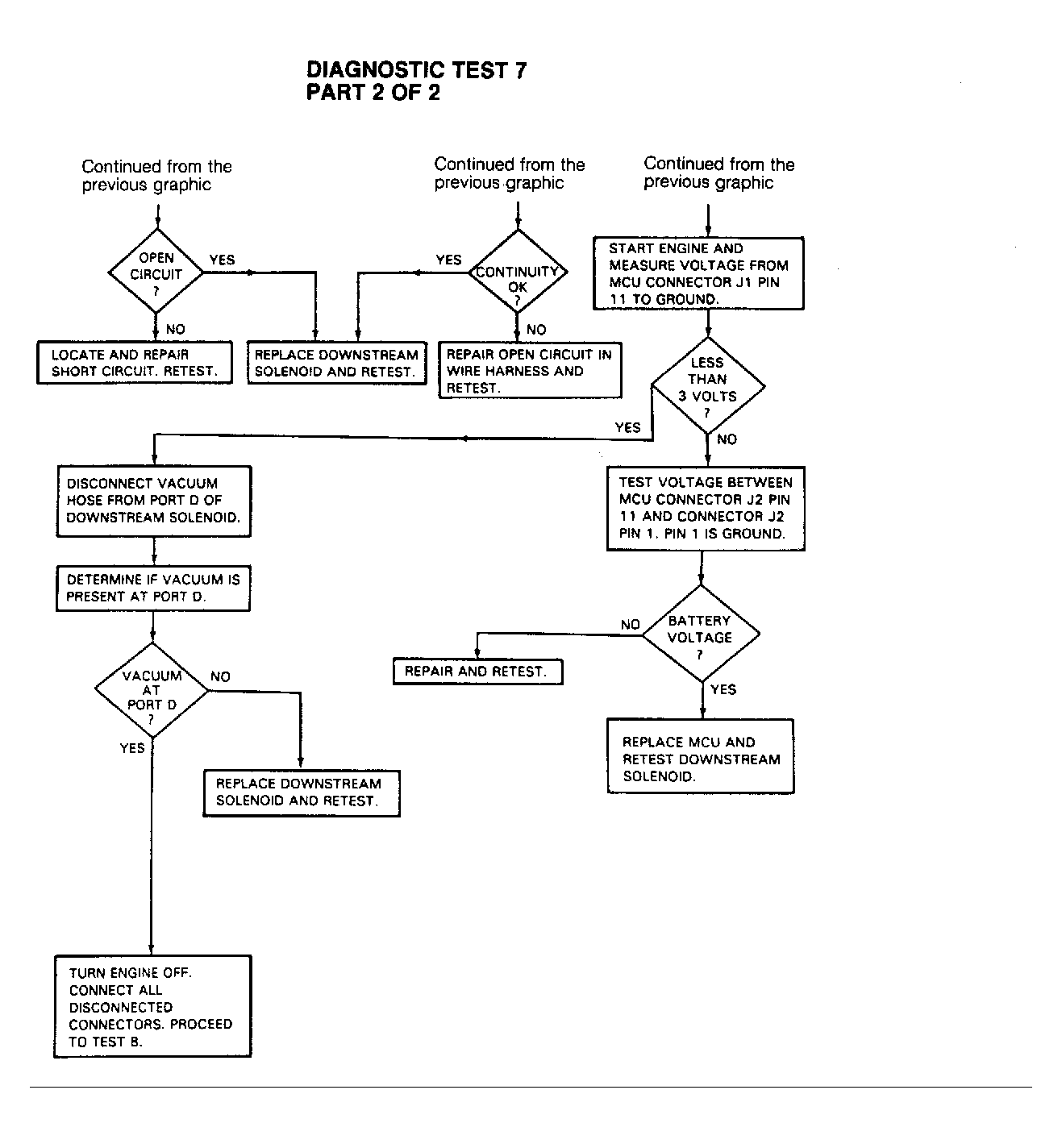

Fig 2: Test No. 7: Downstream Solenoid Test (Continued)

G6645
