Test No. 6

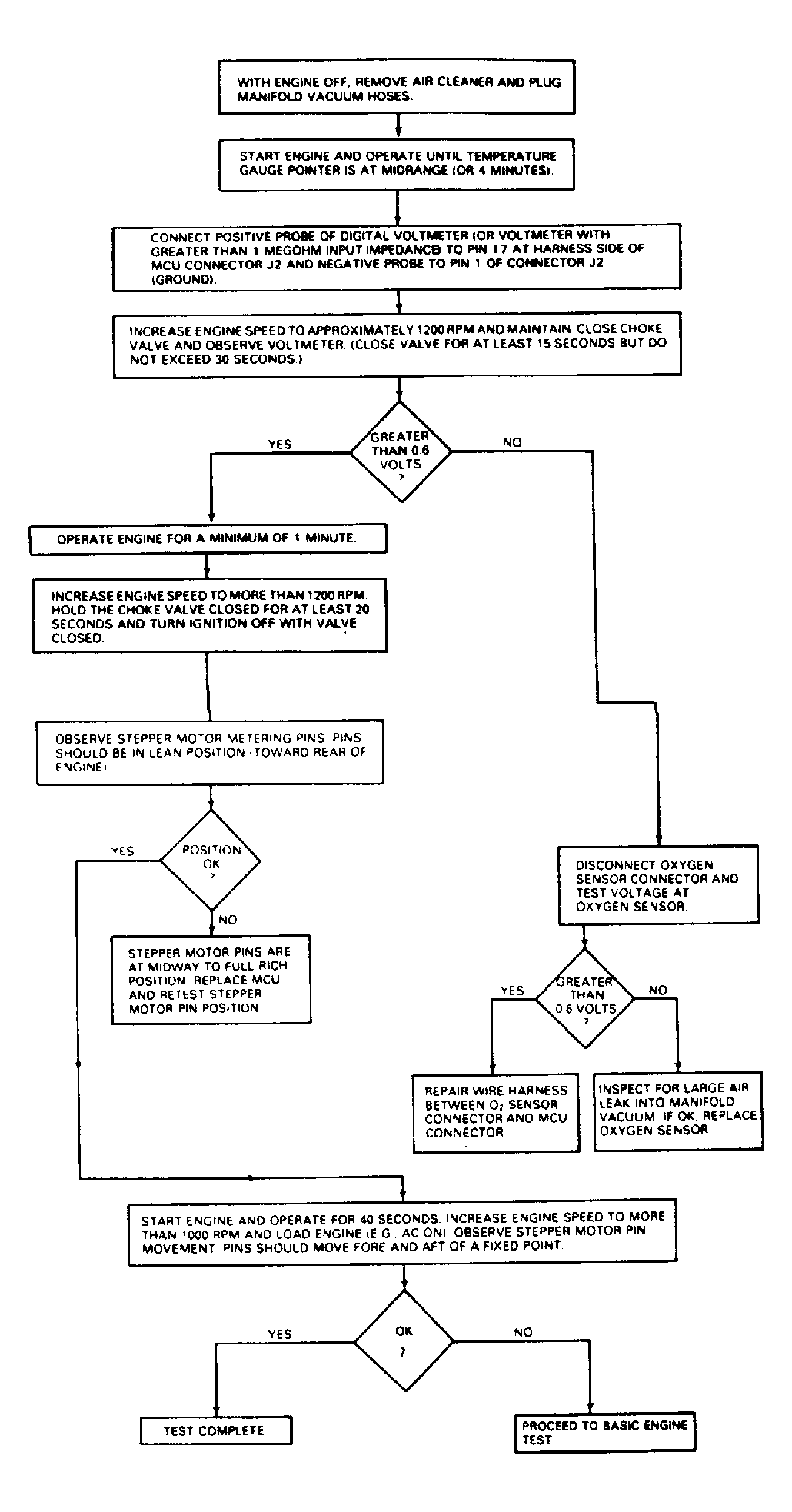

Fig 1: Test No. 6: Oxygen Sensor and Closed Loop Test

G2374

Fig 2: Test No. 6: Oxygen Sensor and Closed Loop Test (Continued)

G6644
