Home >> American Motors >> 1987 >> Eagle Limited, Standard >> Repair and Diagnosis >> Engine Performance >> System >> 2-Bbl Comp Emission CEC >> System Testing >> Test No. 4

Test No. 4

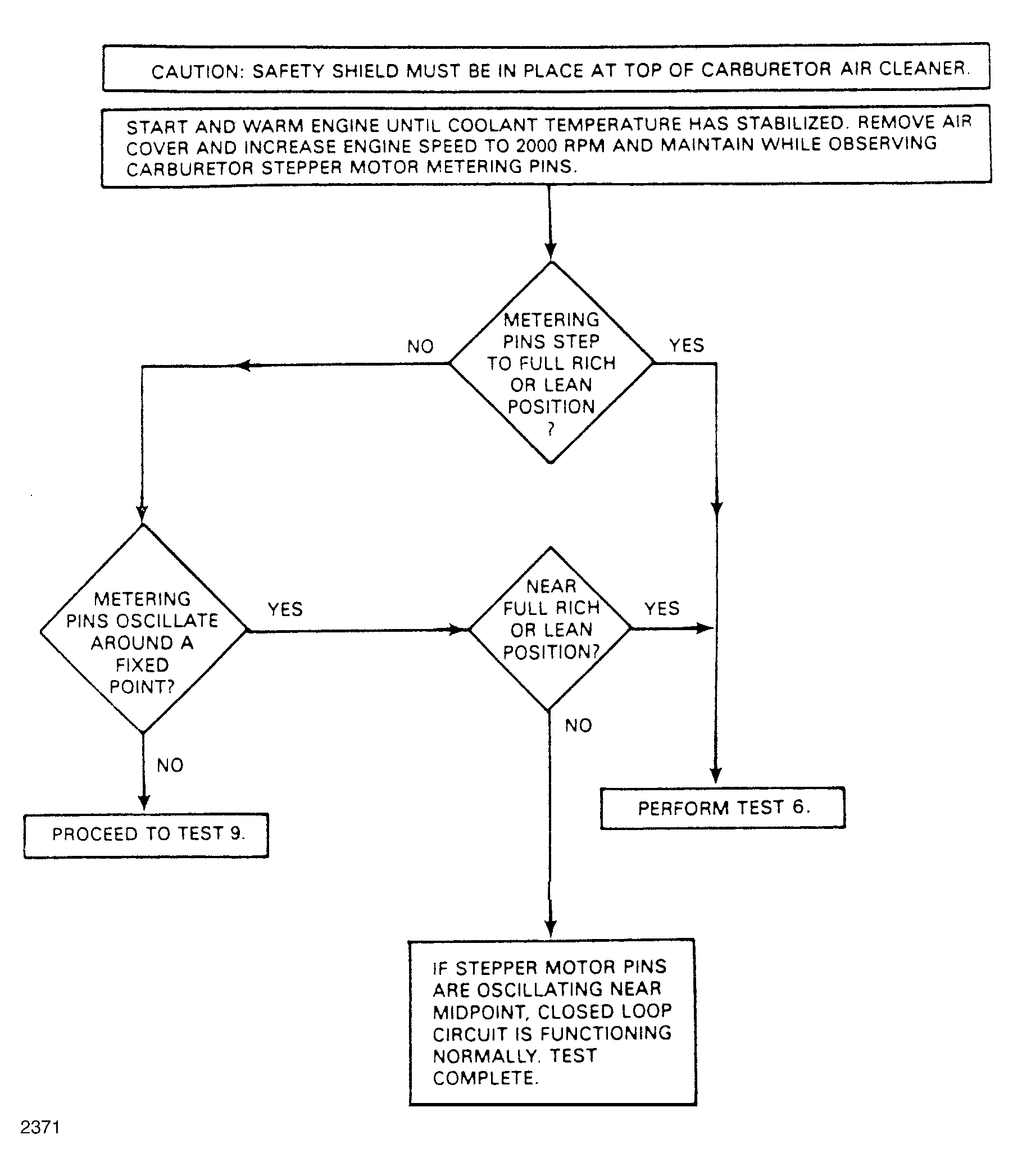

Fig 1: Test No. 4: Closed Loop Operational Test

G2371
