Test No. 3

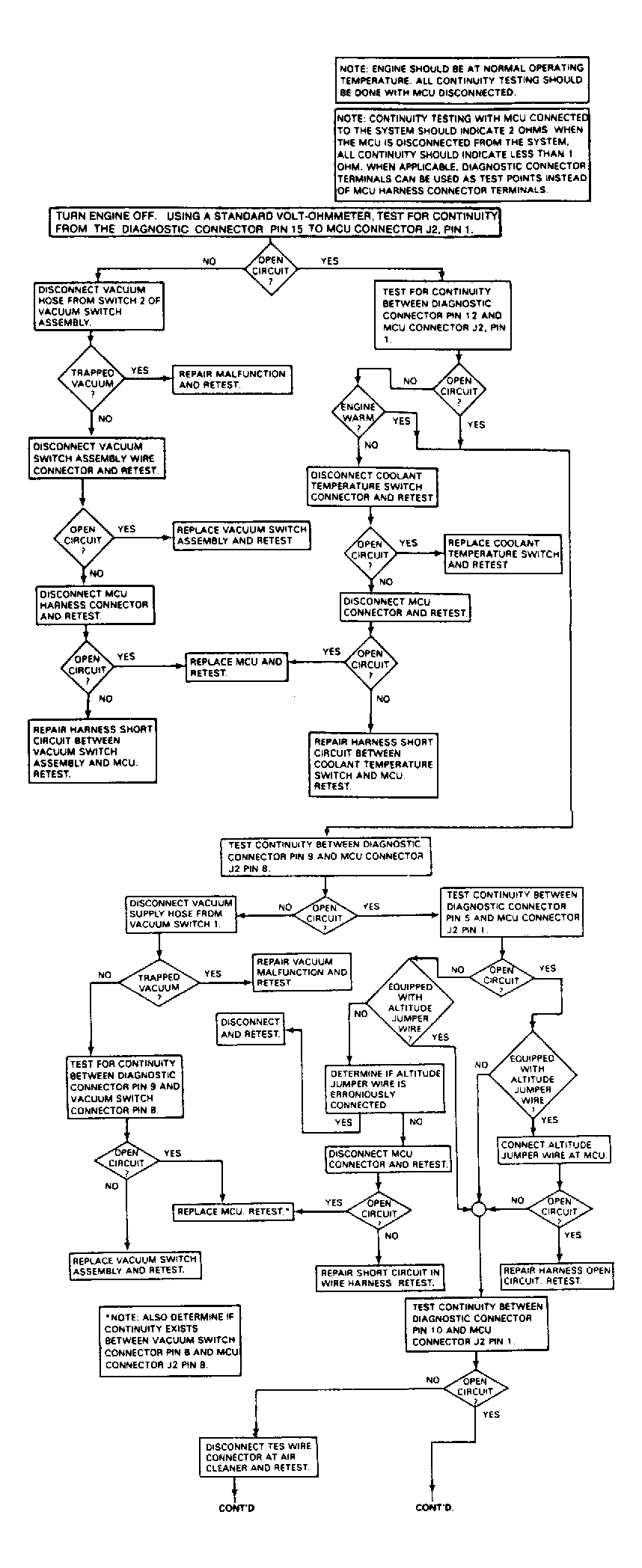

Fig 1: Test No. 3: Open Loop Switch Test
G2369

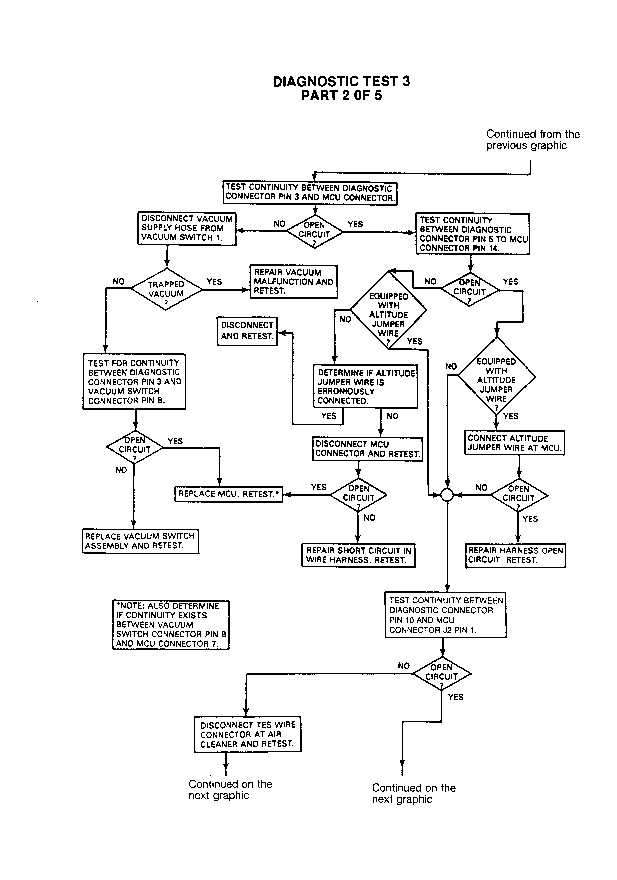

Fig 2: Test No. 3: Open Loop Switch Test (Continued)
G6642

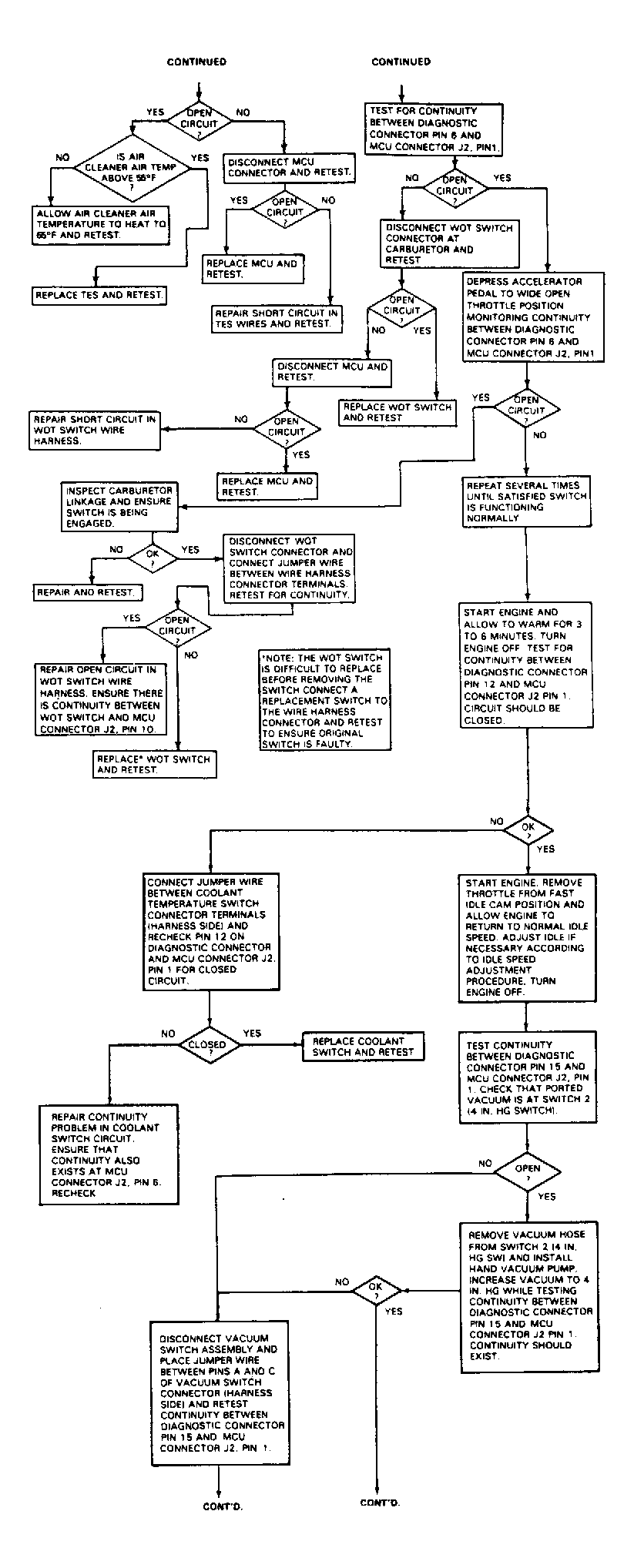

Fig 3: Test No. 3: Open Loop Switch Test (Continued)
G2370

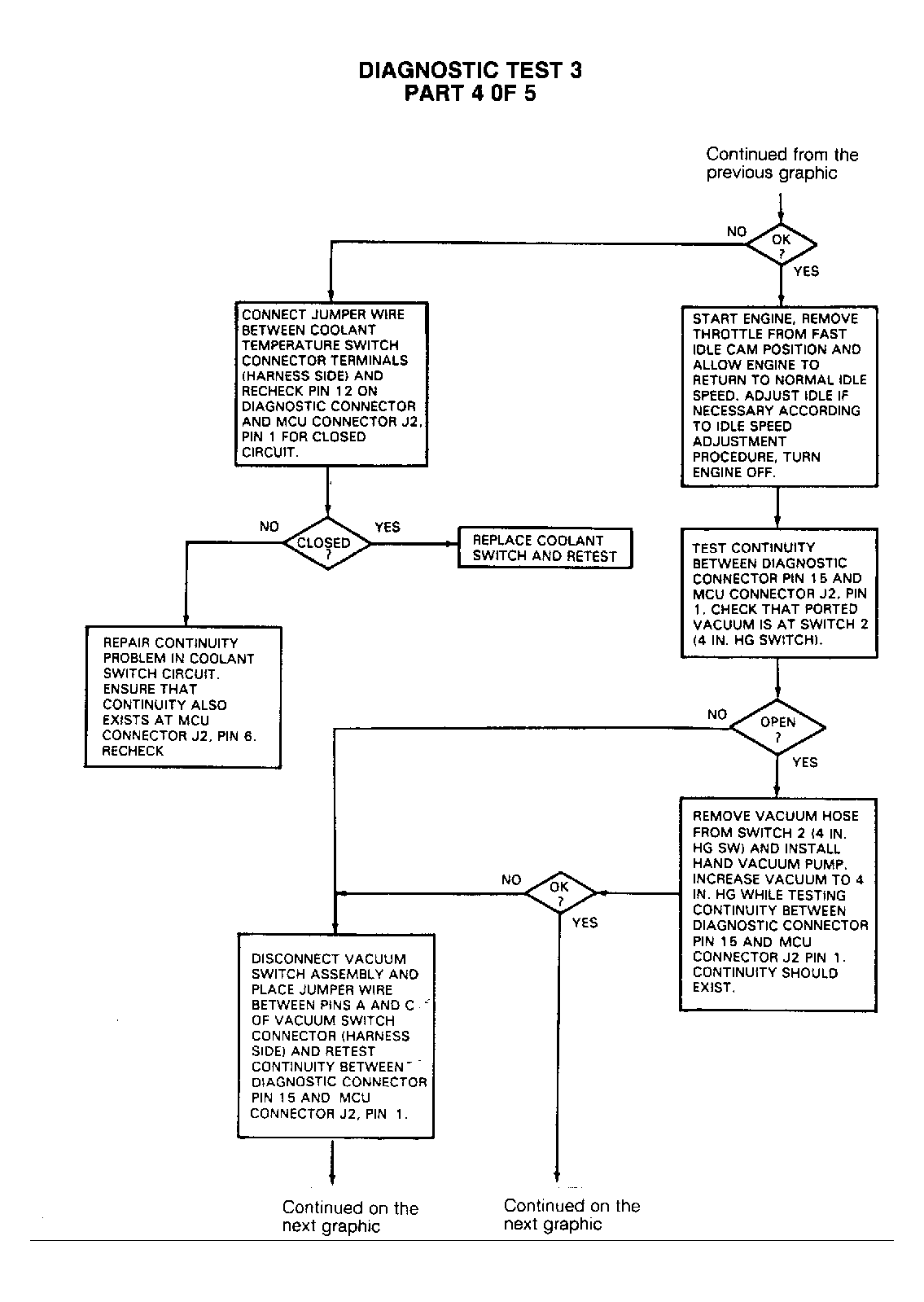

Fig 4: Test No. 3: Open Loop Switch Test (Continued)
G6643

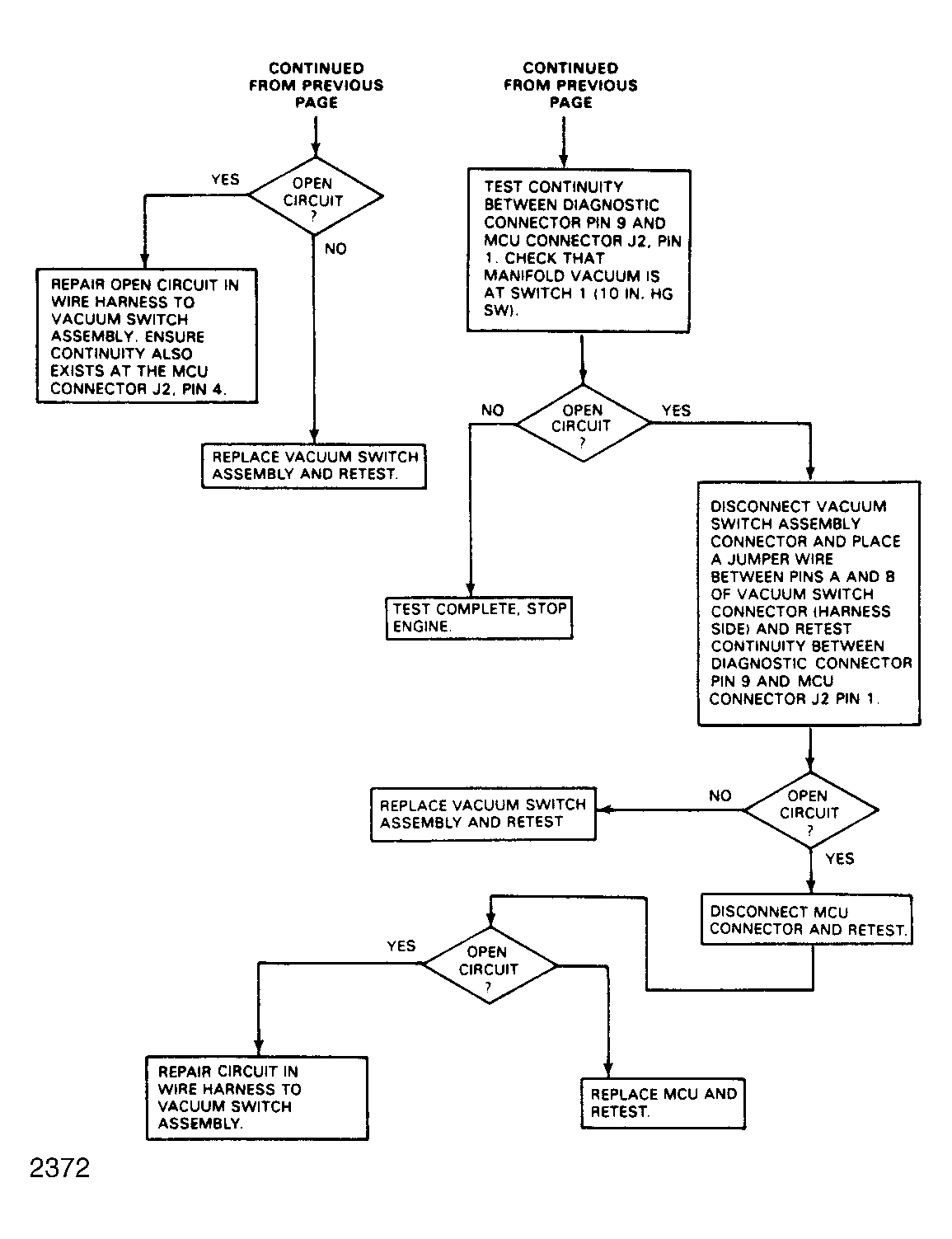

Fig 5: Test No. 3: Open Loop Switch Test (Continued)
G2372
