Home >> American Motors >> 1987 >> Eagle Limited, Standard >> Repair and Diagnosis >> Engine Performance >> System >> 2-Bbl Comp Emission CEC >> System Testing >> Test No. 10

Test No. 10

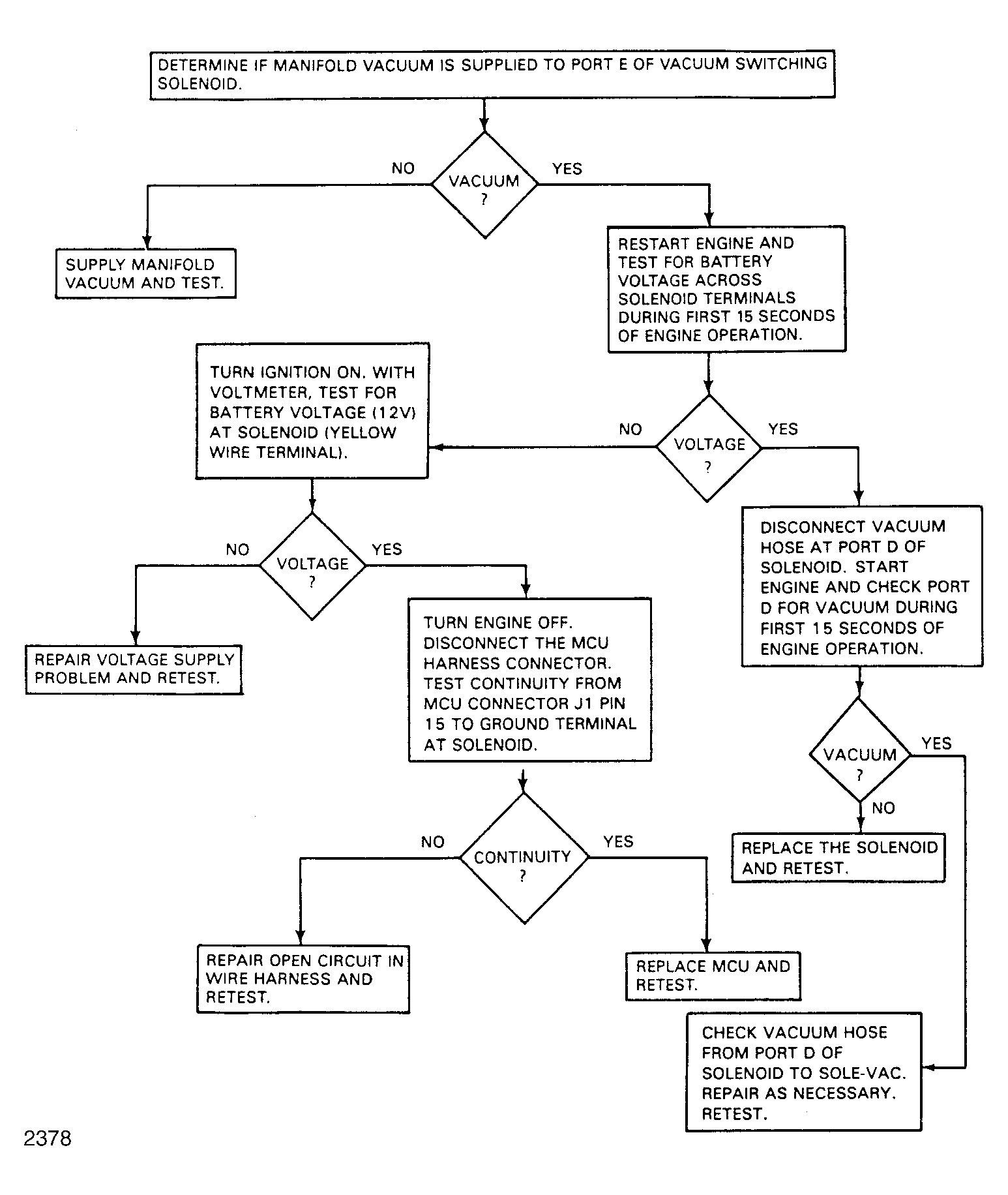

Fig 1: Test No. 10: Sole-Vac Vacuum Switching Solenoid Test

G2378
