Test No. 1

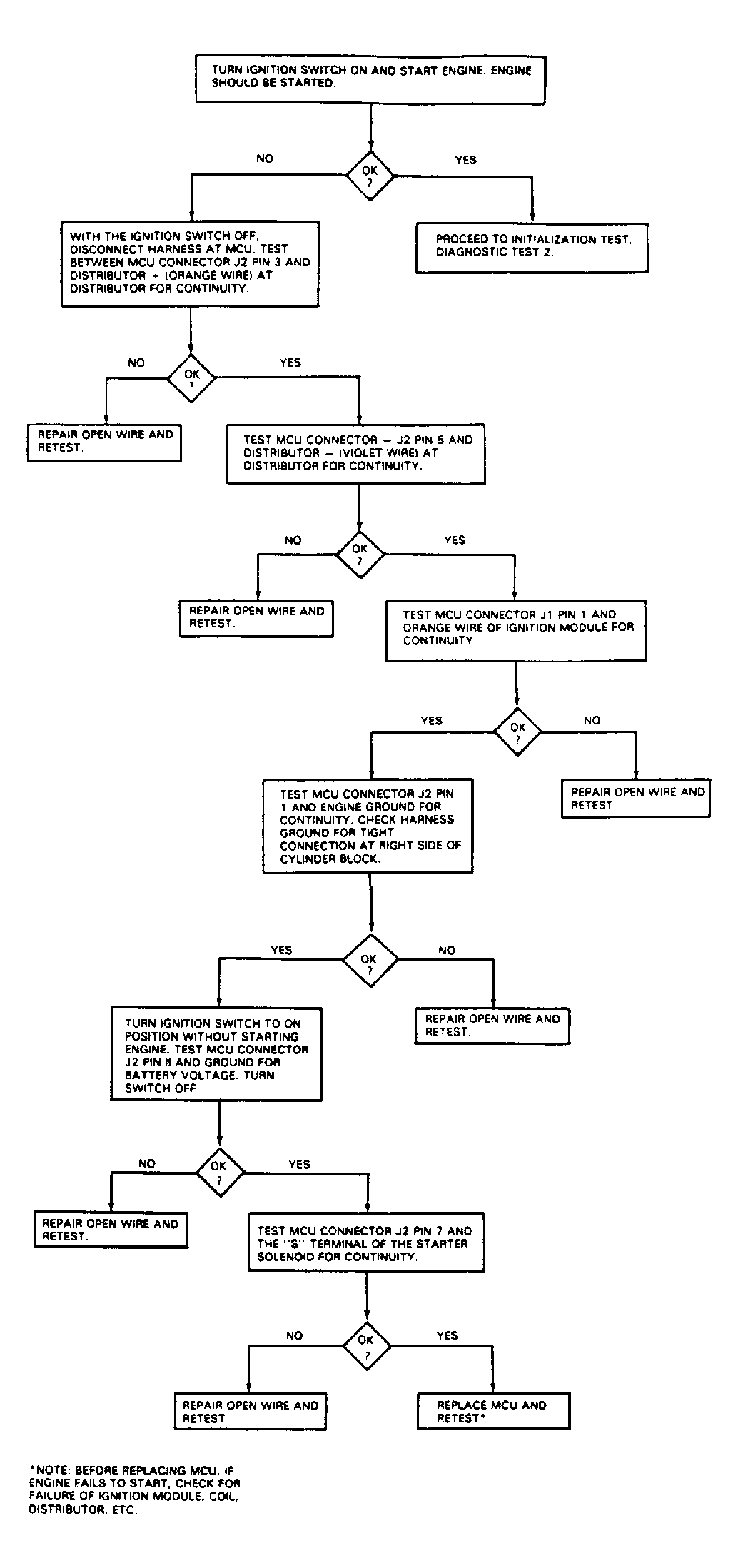

Fig 1: Test No. 1: Operational Test

G2367

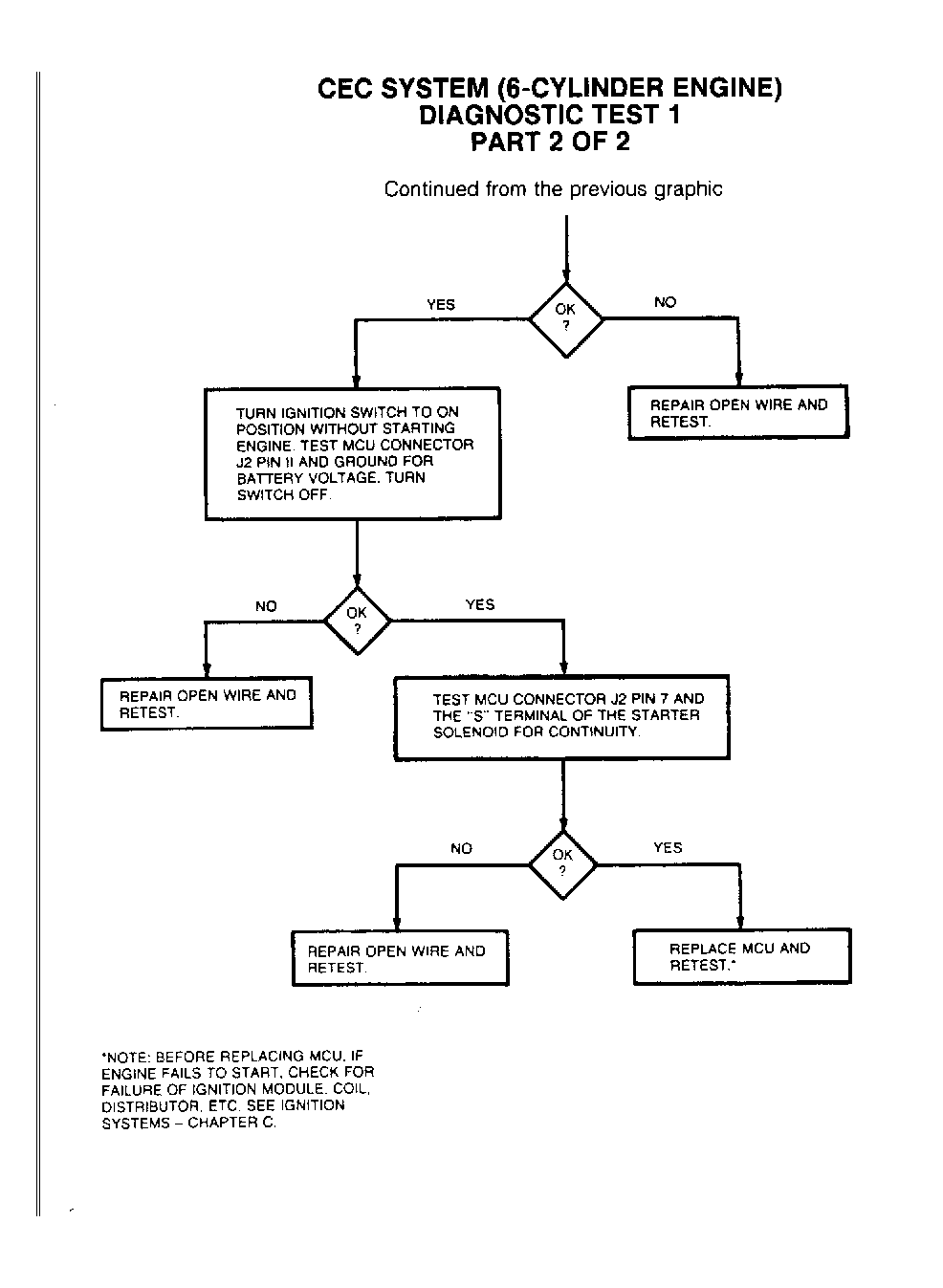

Fig 2: Test No. 1: Operational Test (Continued)

G6647
