Test 6: Manual Transmission Upshift

This test checks upshift indicator lamp function on vehicles with manual transmissions.

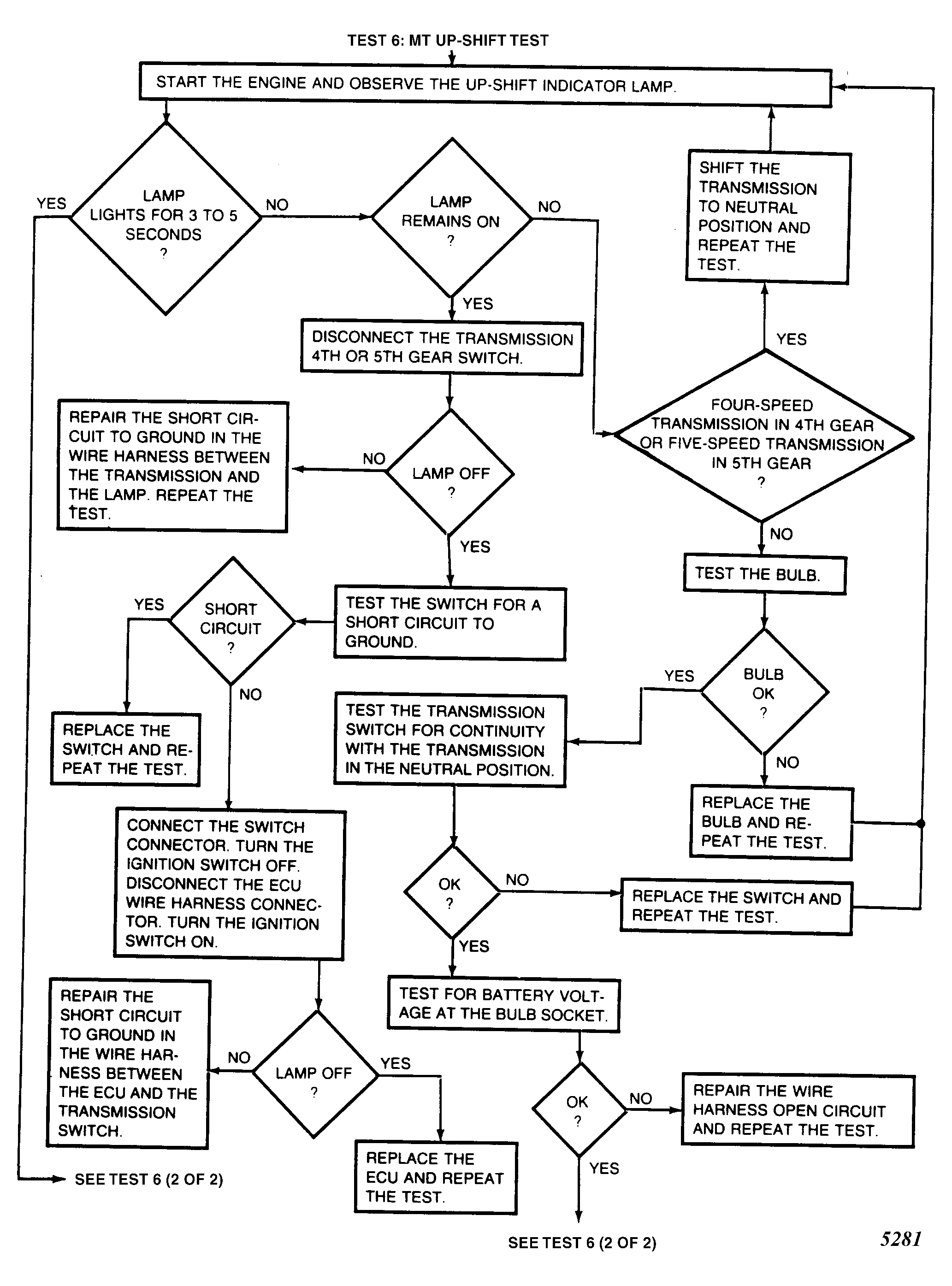

Fig 1: Test 6, Manual Transmission Up-Shift
G5281

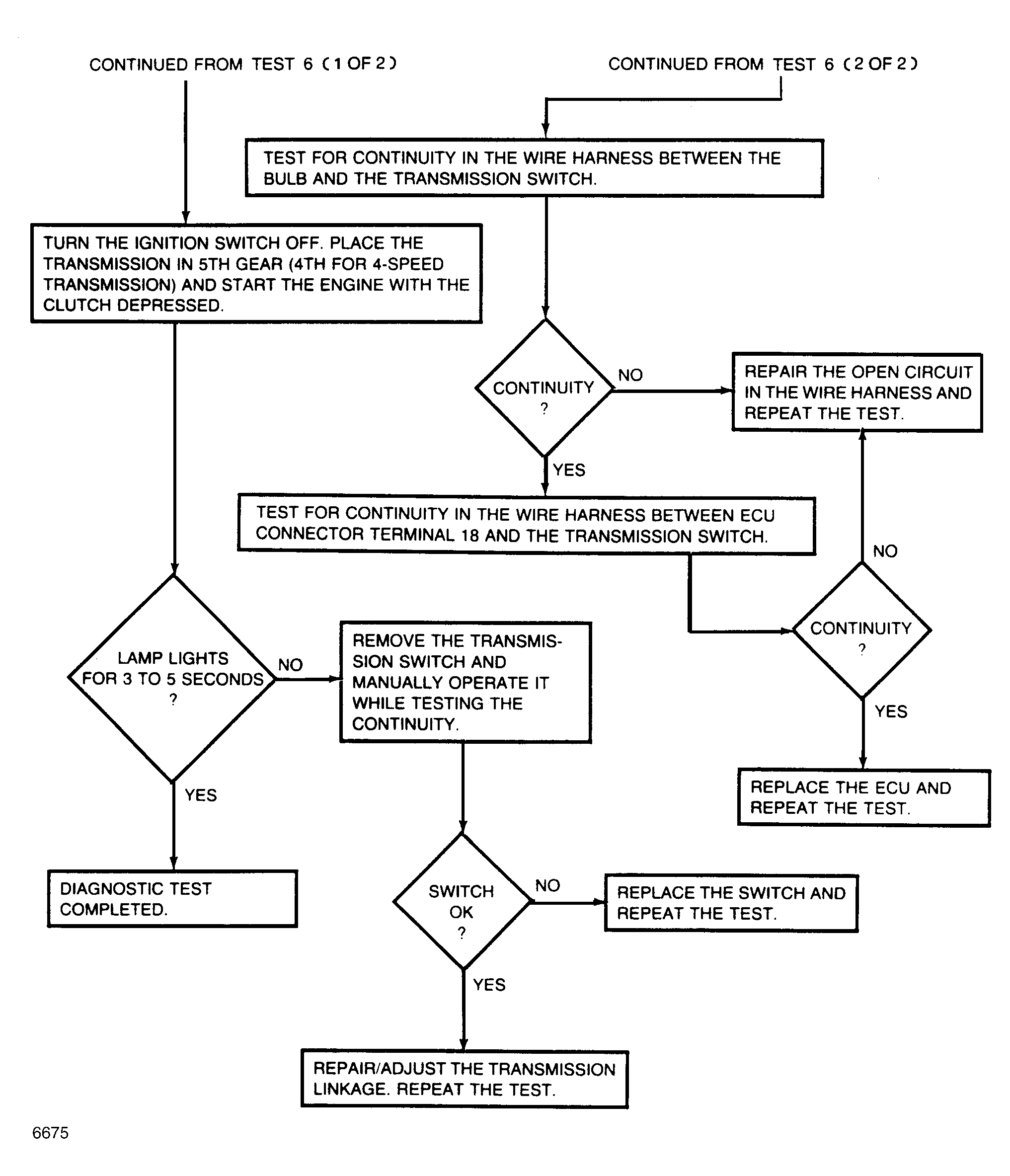

Fig 2: Test 6, Manual Transmission Up-Shift
G6675
