Wiring Diagrams

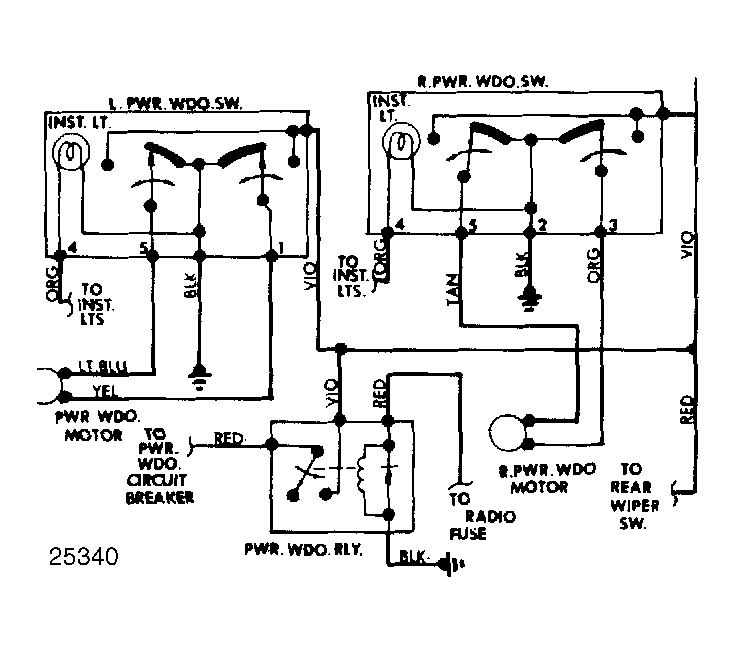

Fig 1: Alliance & Encore Power Window Wiring Diagram

G25340

Fig 2: Eagle Power Window Wiring Diagram

G25341
