Home >> American Motors >> 1985 >> Alliance Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> 1.7L TBI System >> System Diagnosis >> Chart 1

Chart 1

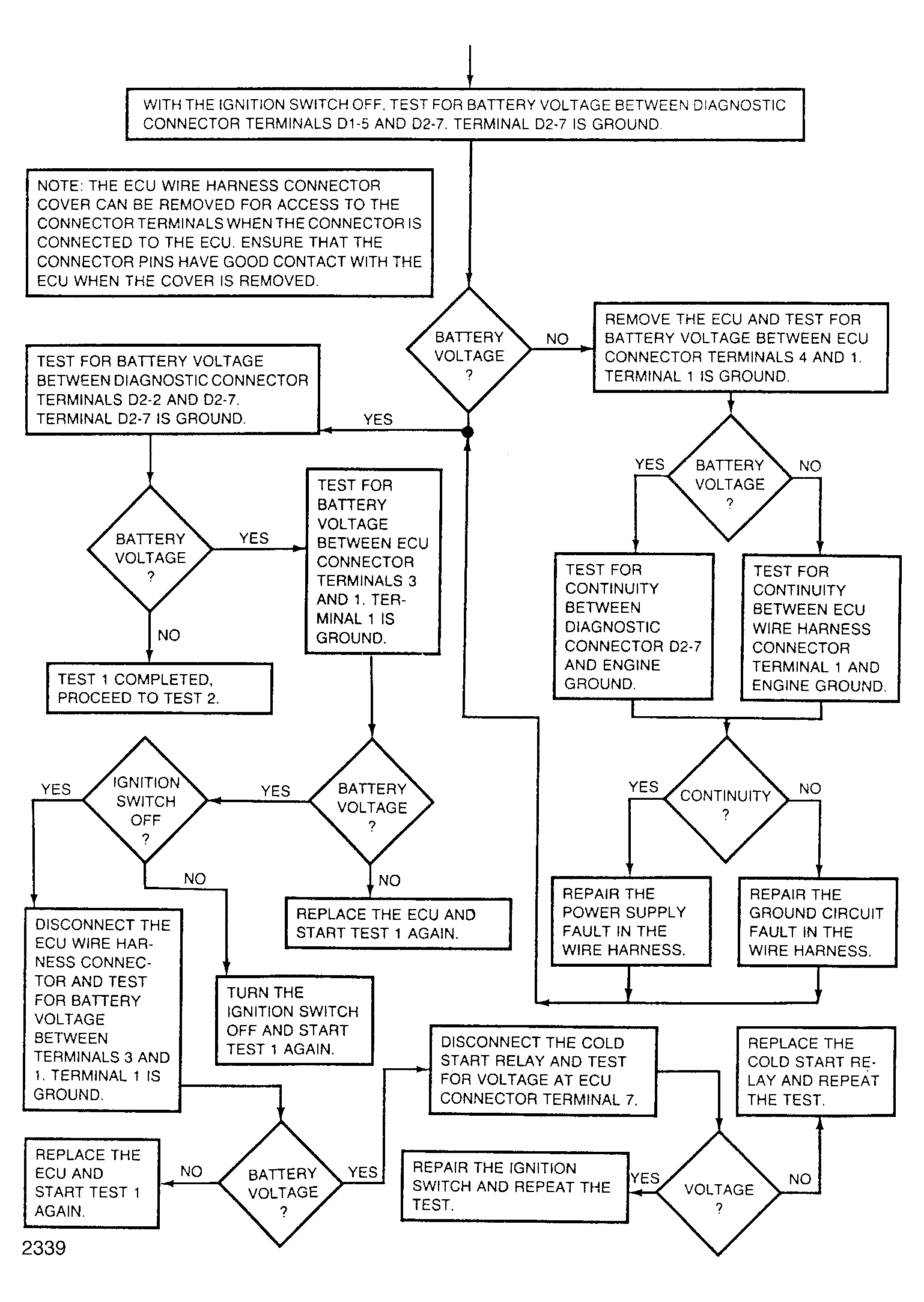

Fig 1: Chart 1 - Ignition Switch Off

G2339
