Fuel Pump Control Relay

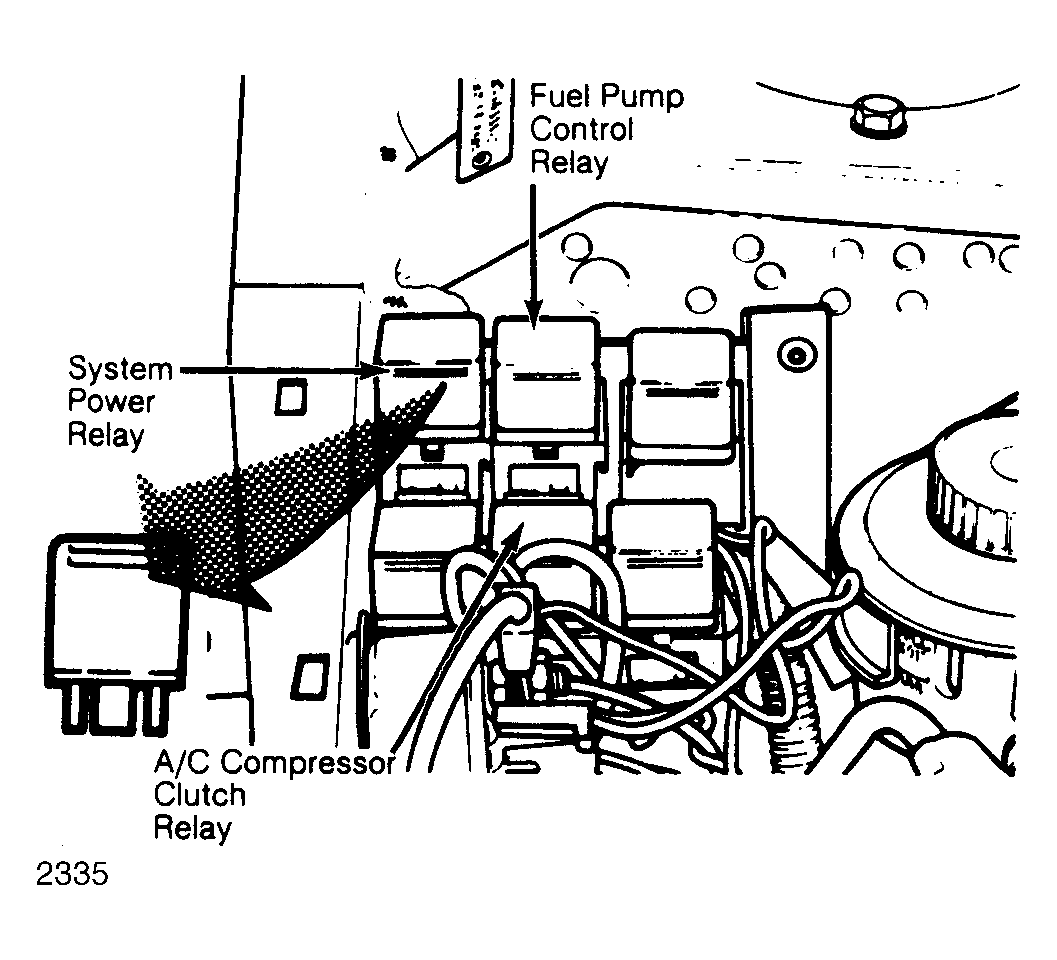

Battery voltage is applied to the relay through the ignition switch. The relay is energized when a ground is provided by the ECU. When energized, voltage is applied to the fuel pump. See Figure .
Battery voltage is applied to the relay through the ignition switch. The relay is energized when a ground is provided by the ECU. When energized, voltage is applied to the fuel pump. See Figure .
