Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| Ballast Resistor | On top front of right strut tower. See Figure. |
| Brake Warning Diode | At right of glove box, taped to harness. |
| Cruise Control Servo | On lower left front fender wall. |
| Diagnostic Connectors | In front of right front strut tower. See Figure. |
| Fan Diode Assembly | On front of right strut tower. |

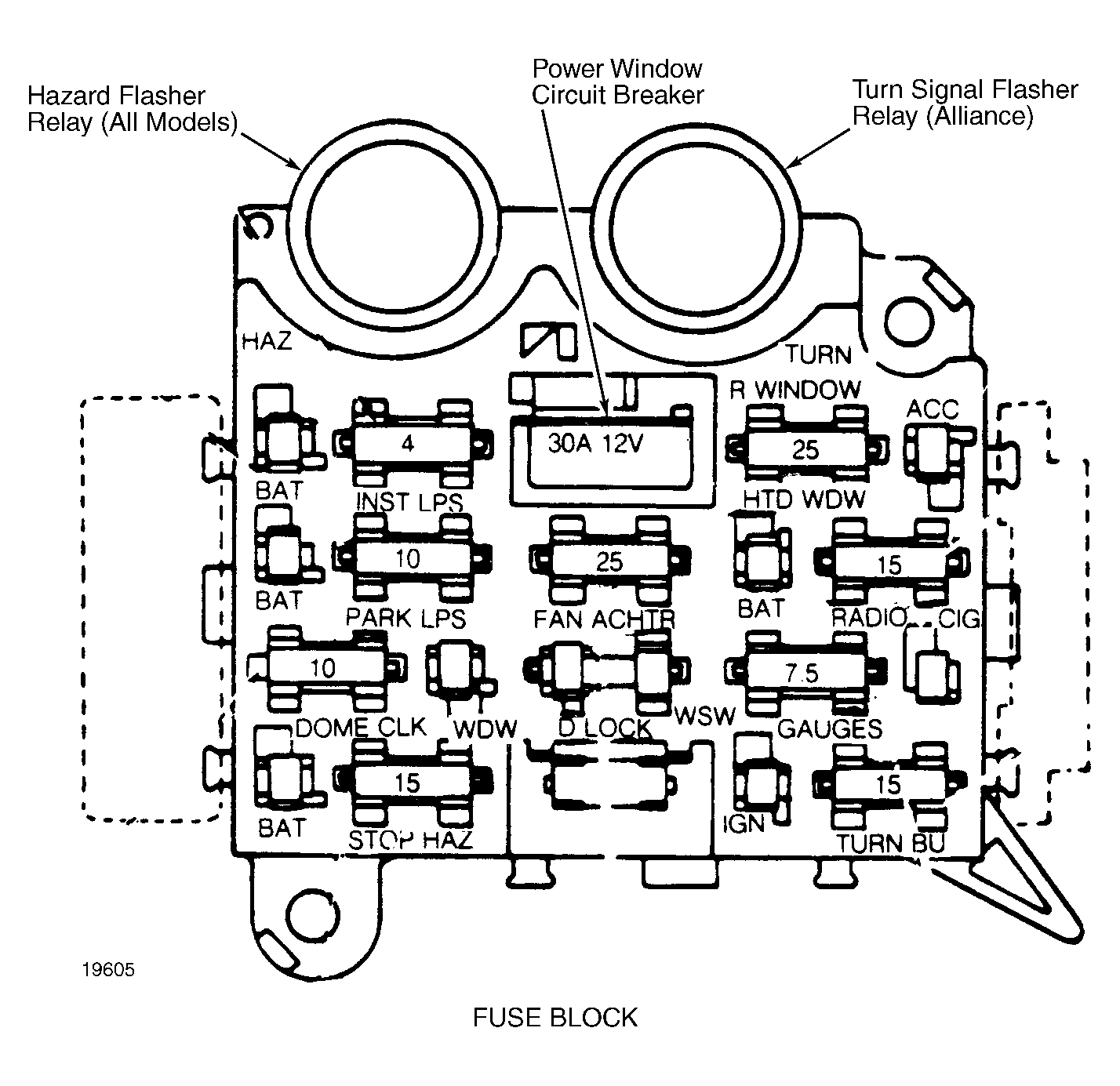

| Fuse Block | Under glove box See Figure & Figure . |

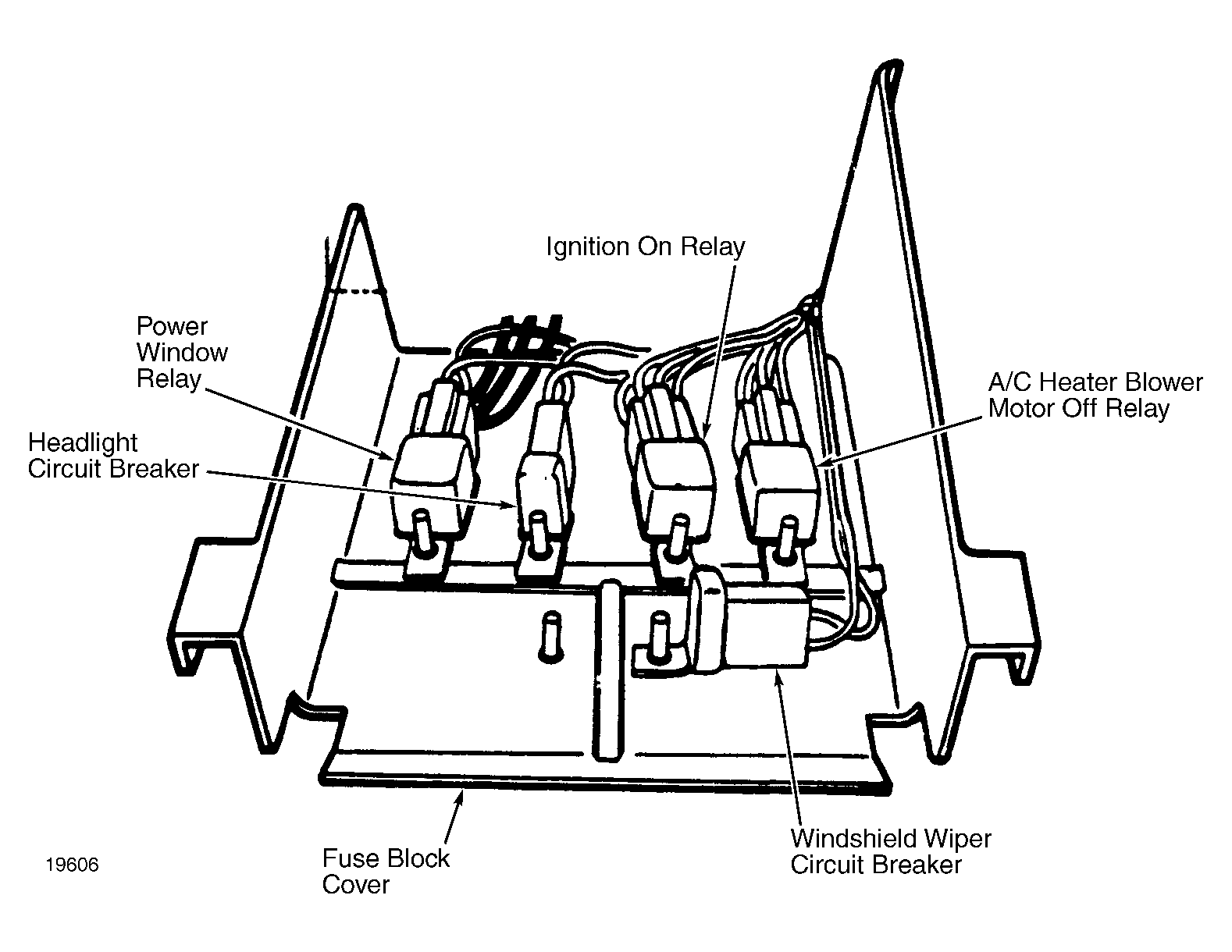

| Headlight Circuit Breaker | On fuse block cover. See Figure & Figure . |
| Idle Diode Assembly (MPFI) (California) | In wiring harness near center of firewall. See Figure. |
| Keyless Entry Receiver | Between sun visors. |
| Power Window Circuit Breaker | In top row of fuse block. See Figure & Figure . |
| Resistance Wire (20 Ohms) | In main harness under right side of dash. |
| Resistor "A" | In engine wiring harness near right strut tower. |
| Supplementary Air Regulator (MPFI) (California) | On bracket at rear of cylinder head. See Figure. |
| Windshield Wiper Circuit Breaker | On fuse block cover. See Figure & Figure . |
