Test Equipment

1. The test equipment required to perform the tests include: Tachometer, hand vacuum pump, digital volt-ohmmeter with a minimum 10 megohm impedance and jumper wires.
2. Before beginning any of the tests, a clear air cleaner cover must be fabricated from clear acrylic plastic at least 0.25" thick. This is secured with air cleaner wing nut after top of air cleaner has been removed to observe operation and position of metering pins. See Fig 1.
   NOTE: The metering pins operate in tandem. Only the upper pin is visible.
   Fig 1: Dimensions for Fabricating Clear Air Cleaner Cover For Observing Metering Pins

   Courtesy of AMERICAN MOTORS/RENAULT CORP.

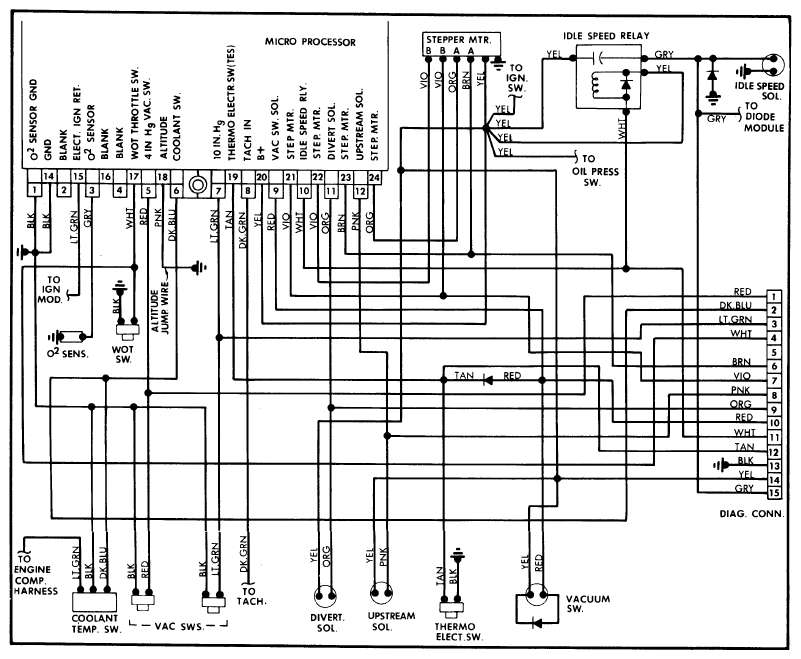

   TEST CHARTS



   Chart	Condition

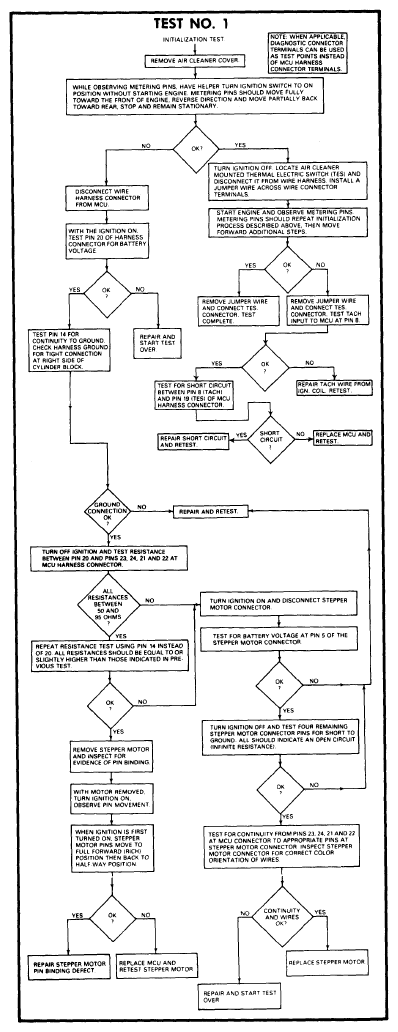

   No. 1	Initialization test.

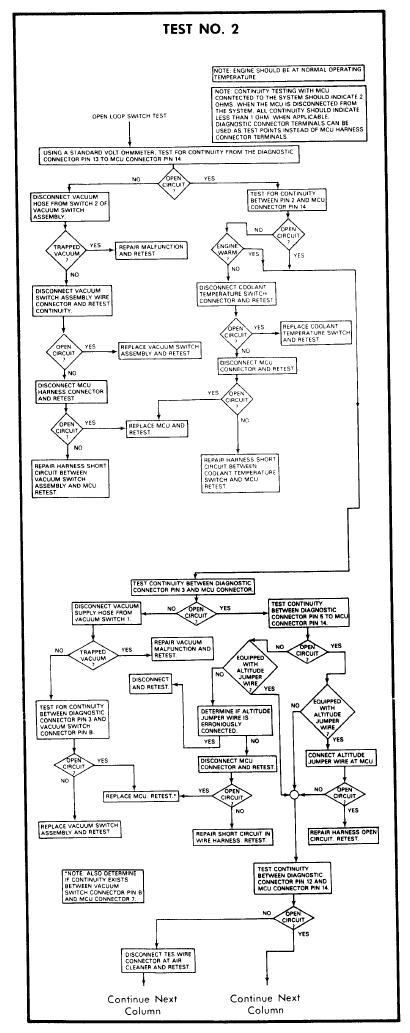

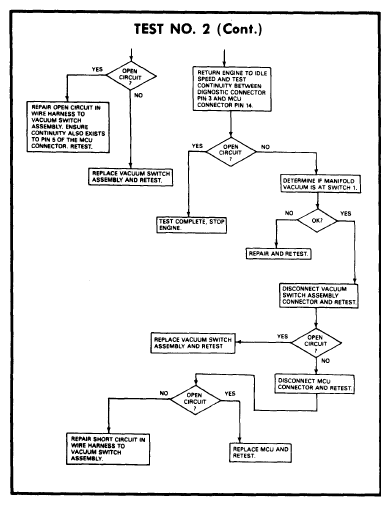

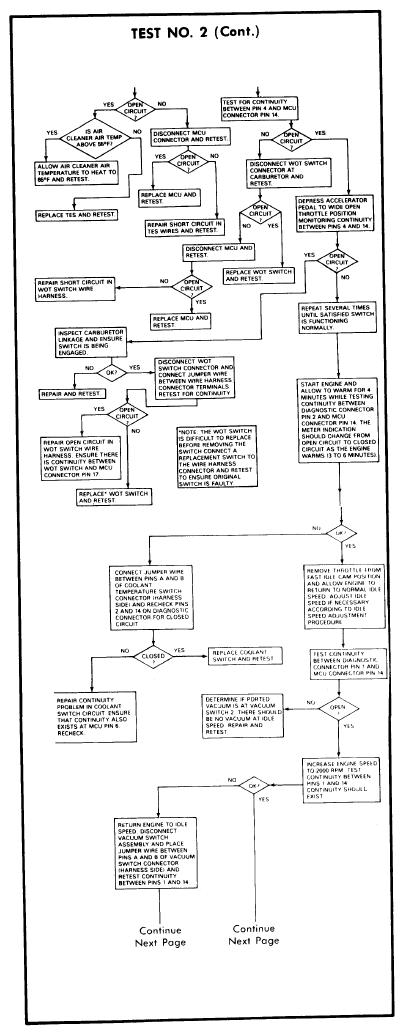

   No. 2	Open loop switch test.

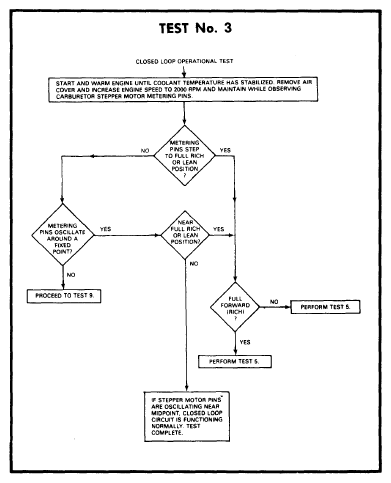

   No. 3	Closed loop operational test.

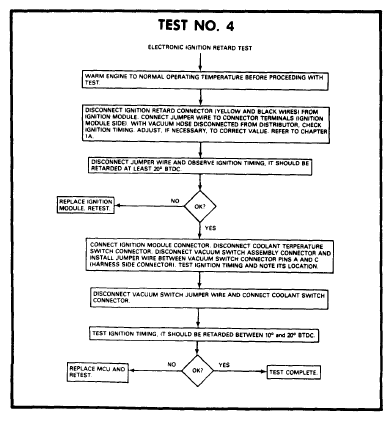

   No. 4	Electronic ignition retard test.

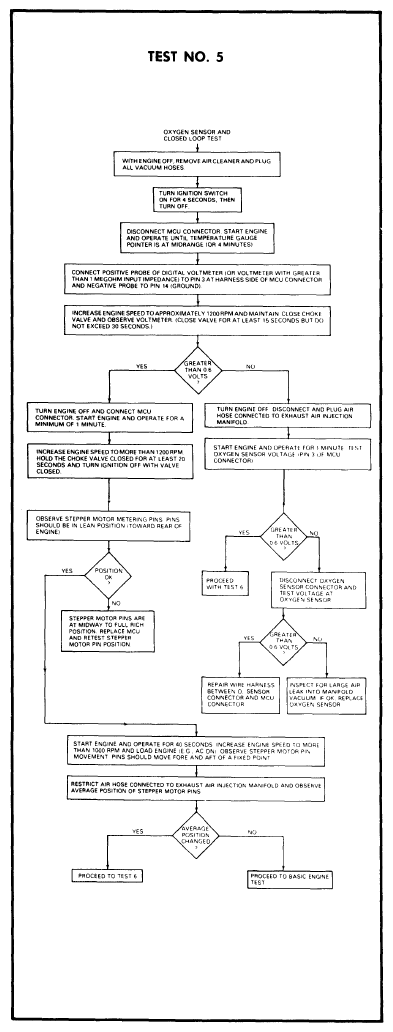

   No. 5	Oxygen sensor and closed loop test.

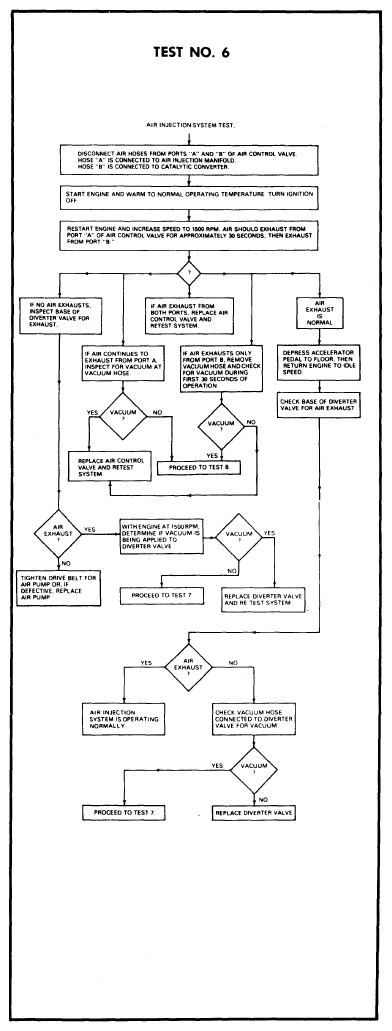

   No. 6	Air injection system test.

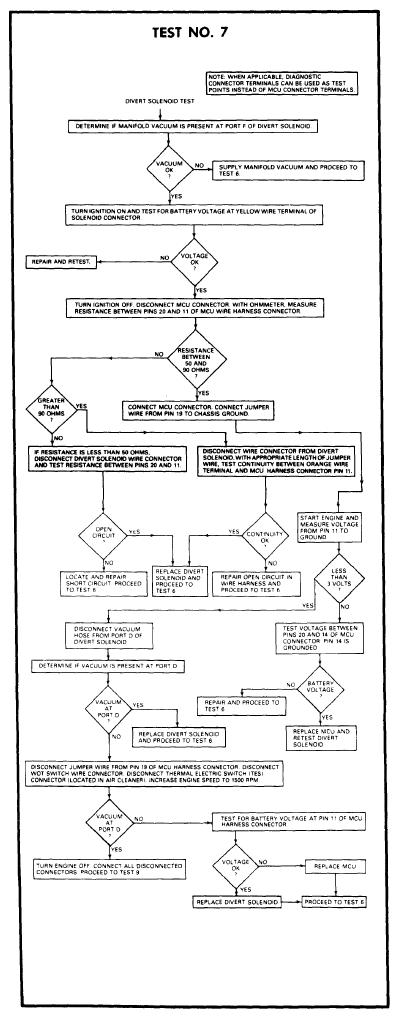

   No. 7	Divert solenoid test.

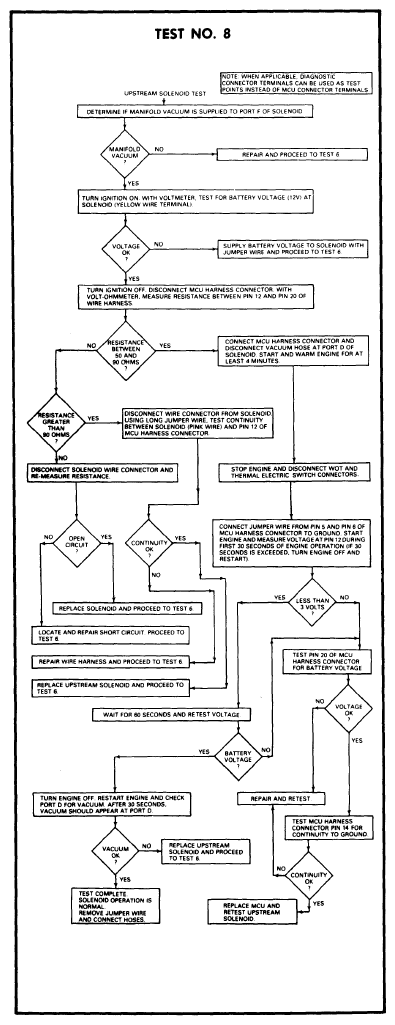

   No. 8	Upstream solenoid test.

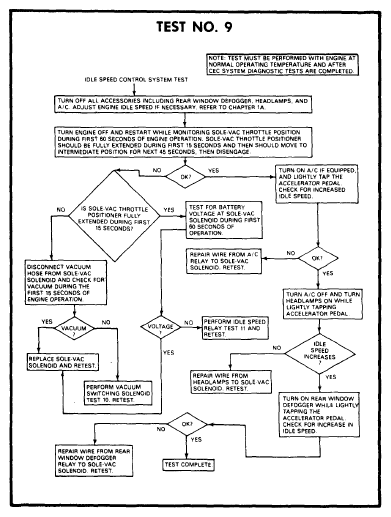

   No. 9	Idle speed control system test.

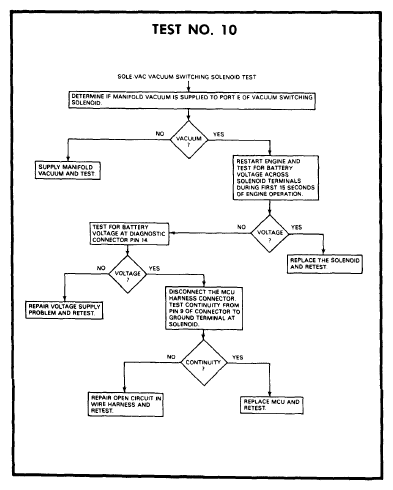

   No. 10	Sole-Vac vacuum switching solenoid test.

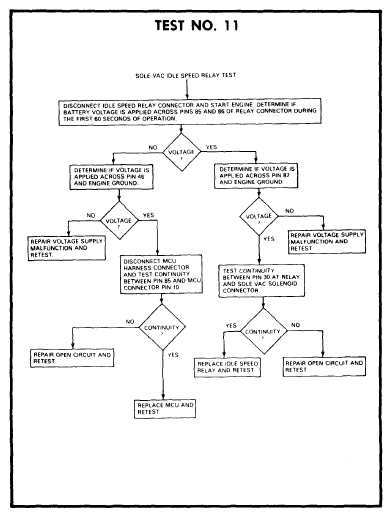

   No. 11	Sole-Vac idle speed relay test.

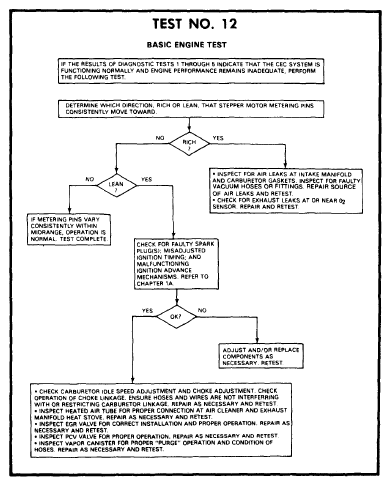

   No. 12	Basic engine test.
