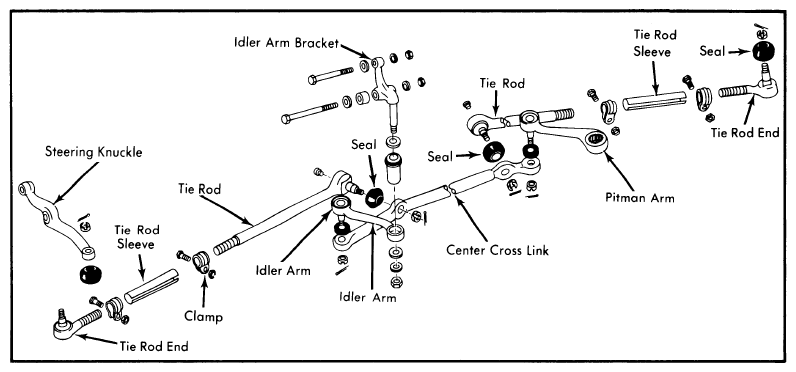

Pitman Arm: Installation
To install pitman arm, reverse removal procedure and tighten nuts as required.
TIGHTENING SPECIFICATIONS
| Application | Ft. Lbs. | |||
|---|---|---|---|---|
| AMERICAN MOTORS | ||||
| Pitman Arm-to-Steering Gear | 115 | |||
| Idler Arm-to-Support | 50 | |||
| Pitman Arm-to-Cross Link | 40 | |||
| Idler Arm-to-Cross Link | 40 | |||
| Tie Rod-to-Steering Knuckle | ||||
| Pacer | 50 | |||
| All Others | 35 | |||
| Tie Rod-to-Cross Link | 40 | |||
| Tie Rod Clamps | ||||
| Pacer | 20 | |||
| All Others | 14 | |||
| CHRYSLER CORP. | ||||
| Pitman Arm-to-Steering Gear | 175 | |||
| Idler Arm-to-Support | 65-70 | |||
| Pitman Arm-to-Cross Link | 40 | |||
| Idler Arm-to-Cross Link | 40 | |||
| Tie Rod-to-Steering Knuckle | 40 | |||
| CHRYSLER CORP. | ||||
| Tie Rod-to-Cross Link | 40 | |||
| Tie Rod Clamps | 17 | |||
| FORD MOTOR CO. | ||||
| Pitman Arm-to-Steering Gear | ||||
| Granada, Monarch, Versailles | (1)200-225 | |||
| Others | 236-250 | |||
| Idler Arm-to-Support | ||||
| Granada, Monarch, Versailles | 60-65 | |||
| Others | 45-50 | |||
| Pitman Arm-to-Cross Link | (1)43-47 | |||
| Idler Arm-to-Cross Link | ||||
| Granada, Monarch, Versailles | (1)77-85 | |||
| Others | (1)53-70 | |||
| Tie Rod-to-Steering Knuckle | (1)43-47 | |||
| Tie Rod-to-Cross Link | (1)43-47 | |||
| Tie Rod Clamps | 20-22 | |||
|
||||
