Window Operates Intermittently

Loose wires on circuit breakers or switches. Defective circuit breaker.

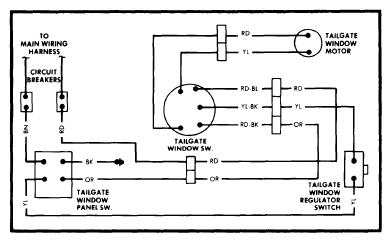

Fig 1: Power Tailgate Window Wiring Diagram American Motors
G09327583Courtesy of AMERICAN MOTORS/RENAULT CORP.
