Trigger Wheel

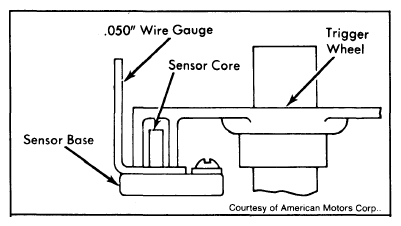

Press trigger wheel onto distributor shaft until teeth of trigger wheel are 0.050 - 0.060" from sensor base. See Figure.
