License Plate Installation: Front

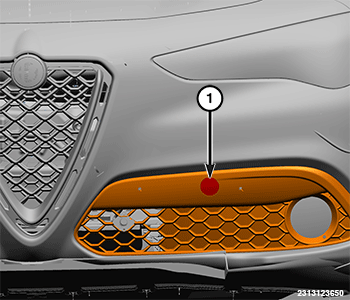

- Remove the driver's side recovery hook beauty cover (1)
- Release the cover from the fascia by pulling the tether from the retainer.

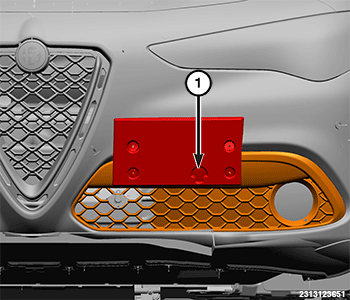

- Remove the two bags (1) that contain the attachment screws from the back of the license plate bracket.

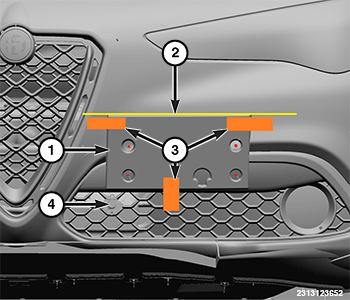

- Align the license plate bracket (1) onto the front fascia by aligning the protrusion on the back of the bracket with the alignment hole on the fascia.
- Secure the license plate bracket using strips of adhesive tape (3).
- Verify that the alignment is level (2) against the front fascia profile.
- Turn the key-on and check that the front parking sensors (4) do not detect any obstacles. If obstacles are detected, reposition the license plate bracket and repeat the check.
- Attach the license plate bracket to the fascia by securing it using the four supplied self-tapping screws.
