Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the belly pan. Refer to UNDER BODY PROTECTION .
3. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
4. Remove the turbocharger air inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
5. Remove the A/C condenser. Refer to CONDENSER, A/C, REMOVAL AND INSTALLATION .
6. Drain the engine cooling system. Refer to DRAINING AND FILLING THE ENGINE COOLING SYSTEM  .
7. Drain the turbocharger cooling system. Refer to DRAINING AND FILLING THE TURBOCHARGER COOLING SYSTEM  .

   Courtesy of CHRYSLER GROUP, LLC

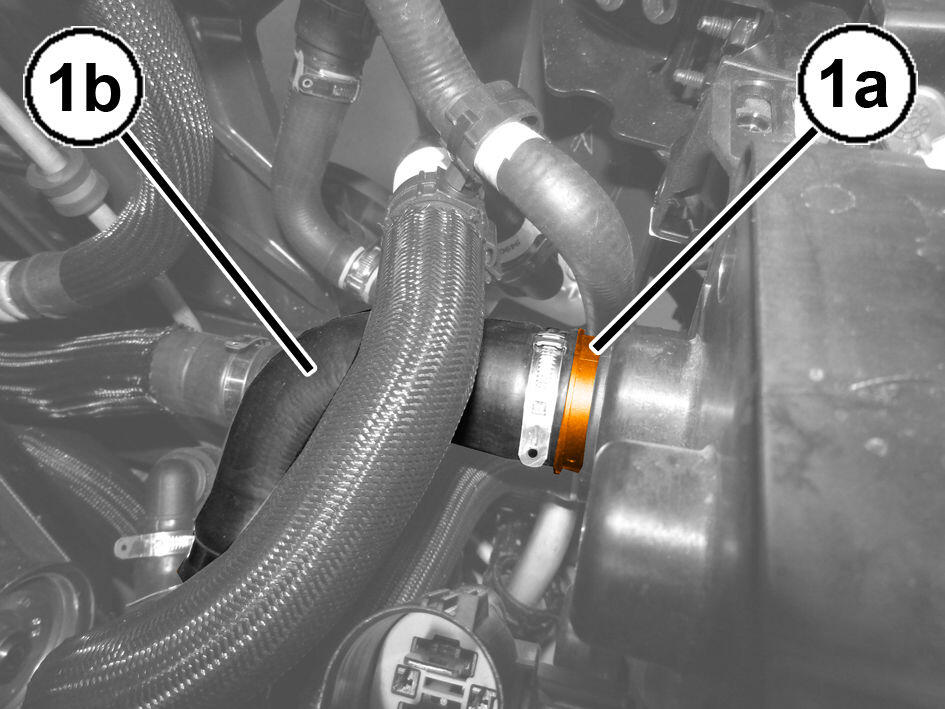

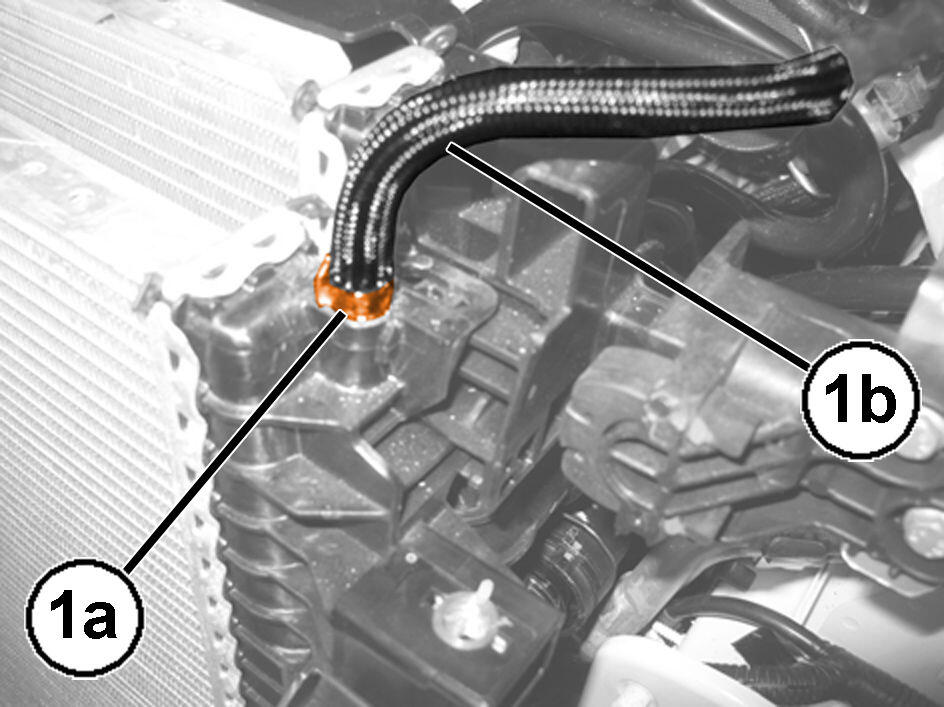

8. Loosen the hose clip (1a) and disconnect the degassing pipe (1b) from the turbocharger air cooling system radiator.

   Courtesy of CHRYSLER GROUP, LLC

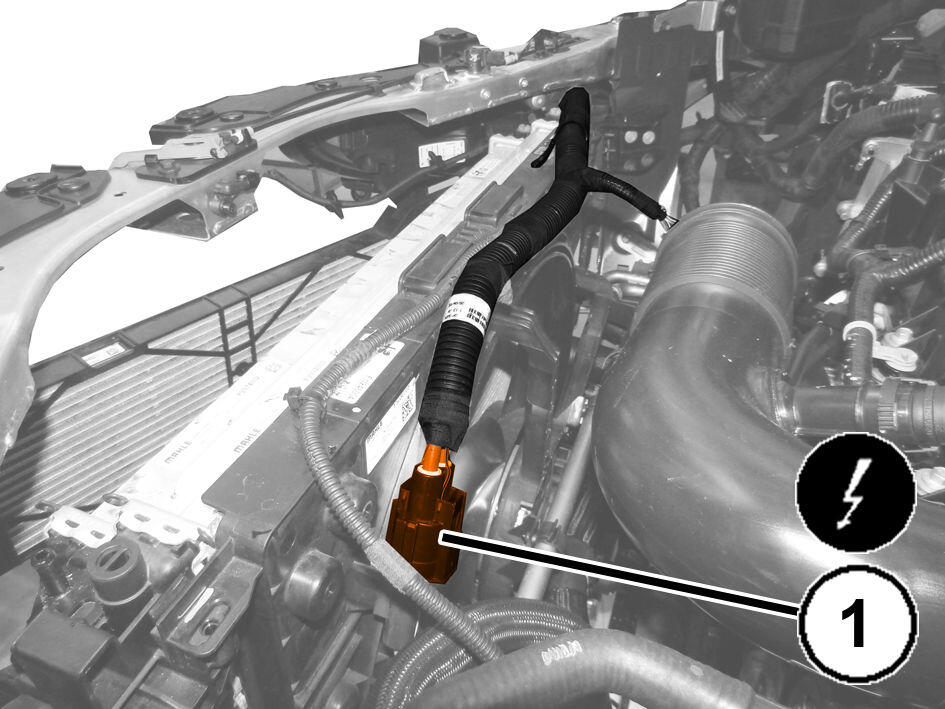

9. Disconnect the electrical connection for the fan and release the wiring from the retaining clips on the radiator.

   Courtesy of CHRYSLER GROUP, LLC

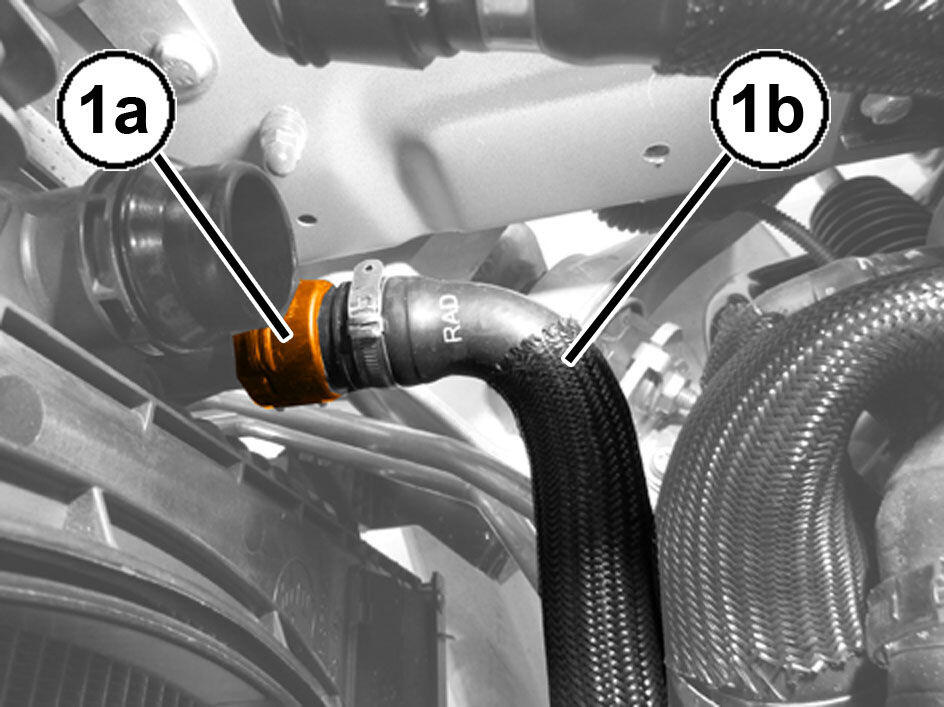

10. Disconnect the quick coupling (1a) of the coolant supply pipe to the radiator. (1b).

    Courtesy of CHRYSLER GROUP, LLC

11. Disconnect the quick coupling (1a) for the coolant supply pipe to the turbocharger air cooling system radiator (1b).

    Courtesy of CHRYSLER GROUP, LLC

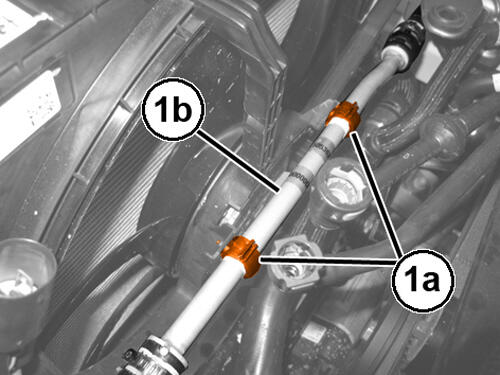

12. Release the clips (1a) and radiator coolant inlet tube (1b).

    Courtesy of CHRYSLER GROUP, LLC

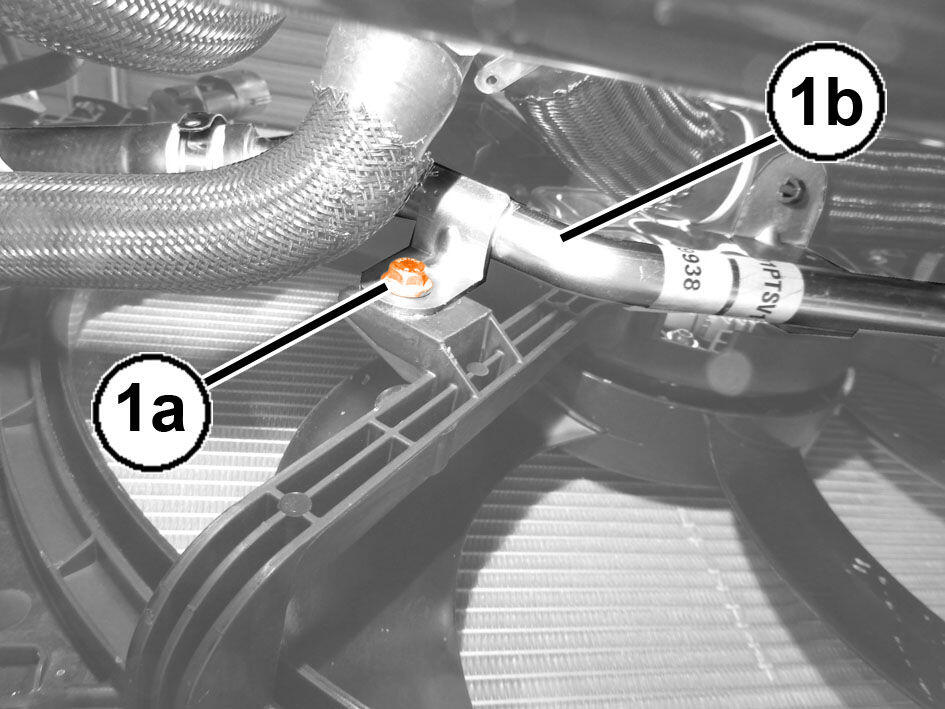

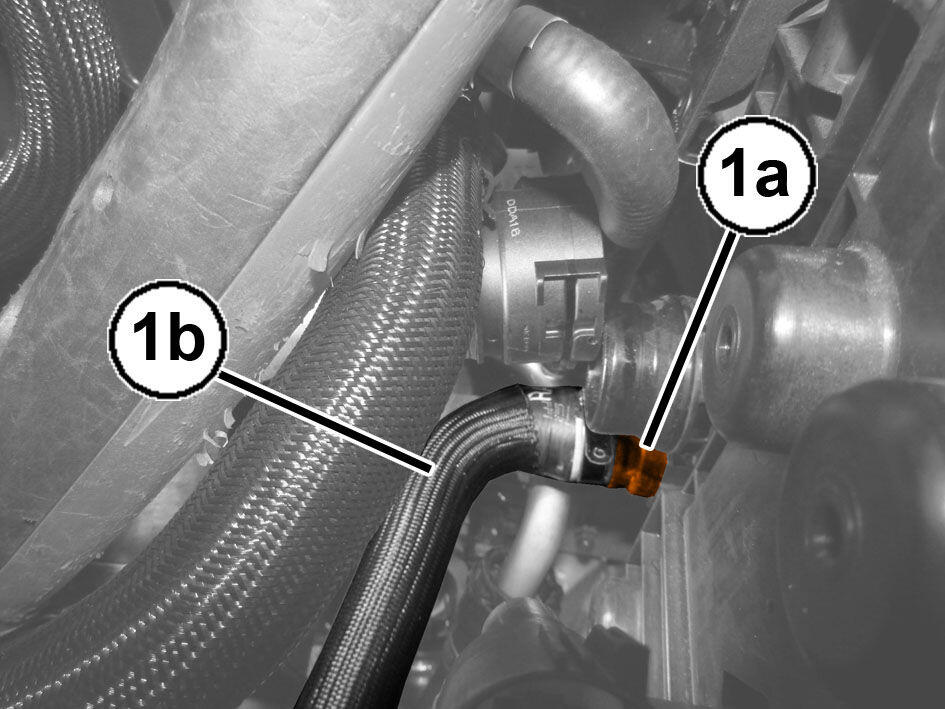

13. Remove the screw (1a) securing the outlet pipe from the turbocharger air cooling system radiator (1b).

    Courtesy of CHRYSLER GROUP, LLC

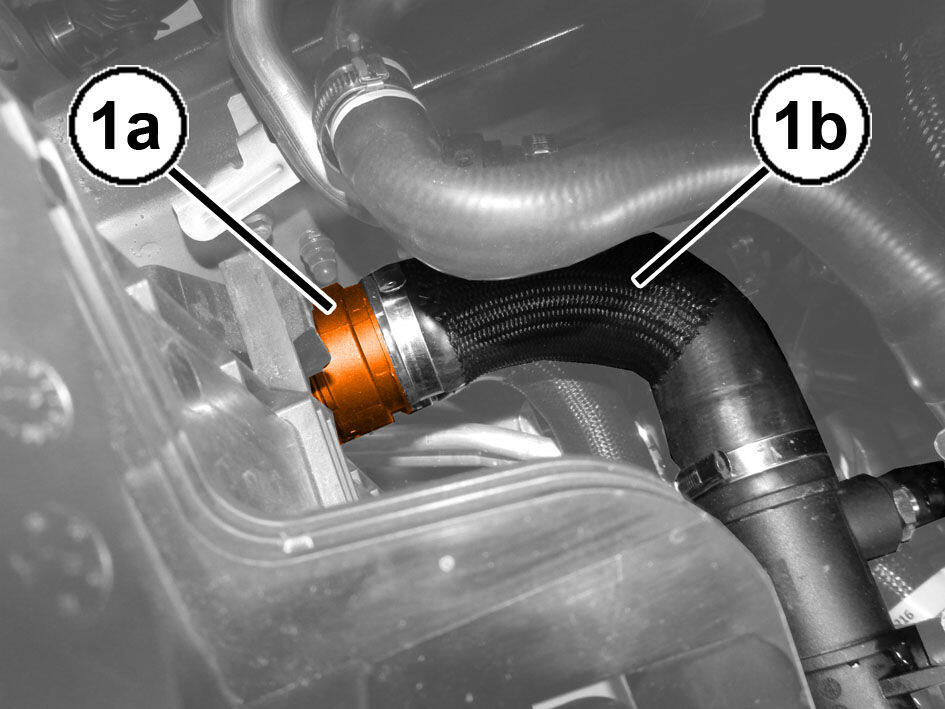

14. Open the quick coupling (1a) and disconnect the coolant outlet pipe from the radiator (1b).

    Courtesy of CHRYSLER GROUP, LLC

15. Open the quick coupling (1a) and disconnect the coolant outlet pipe from the turbocharger air cooling system radiator (1b).

    Courtesy of CHRYSLER GROUP, LLC

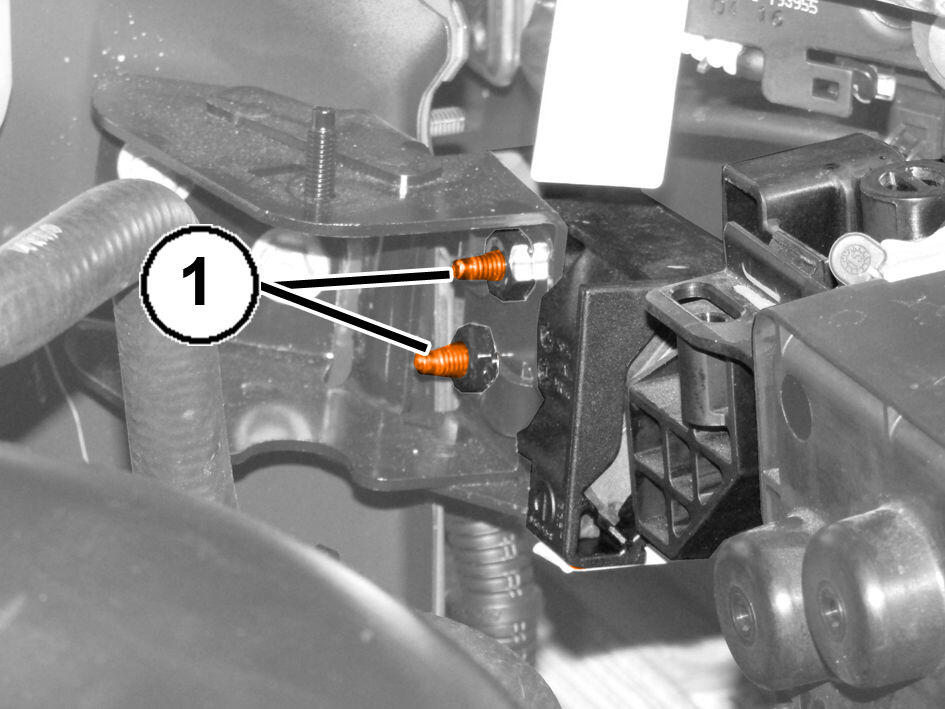

16. Remove the retaining screws of the radiator support flexible mountings.

    Courtesy of CHRYSLER GROUP, LLC

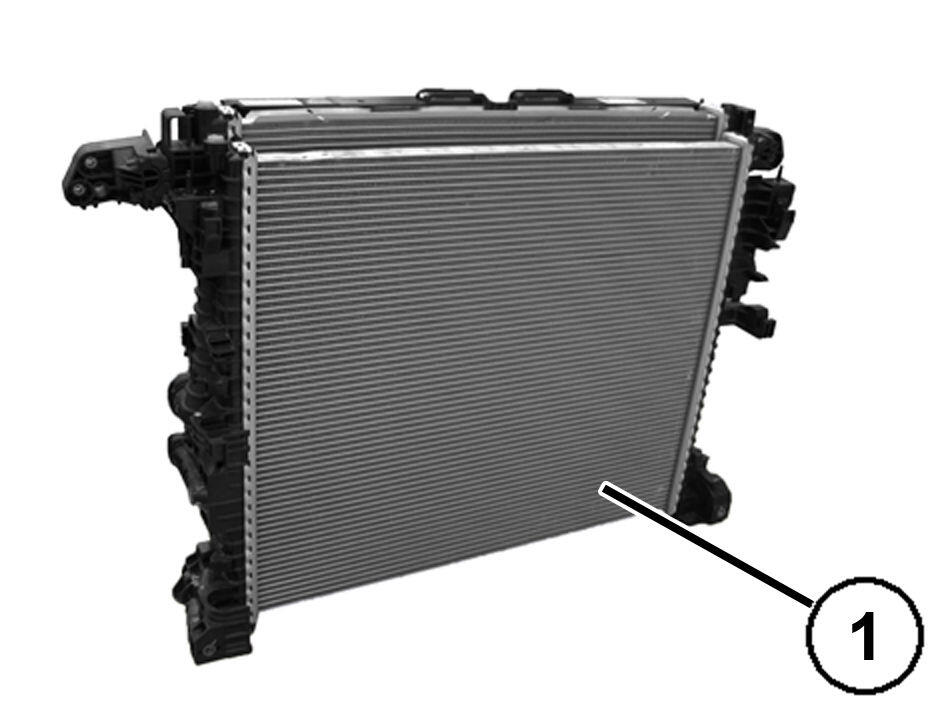

17. Remove the engine cooling radiator.

    Courtesy of CHRYSLER GROUP, LLC

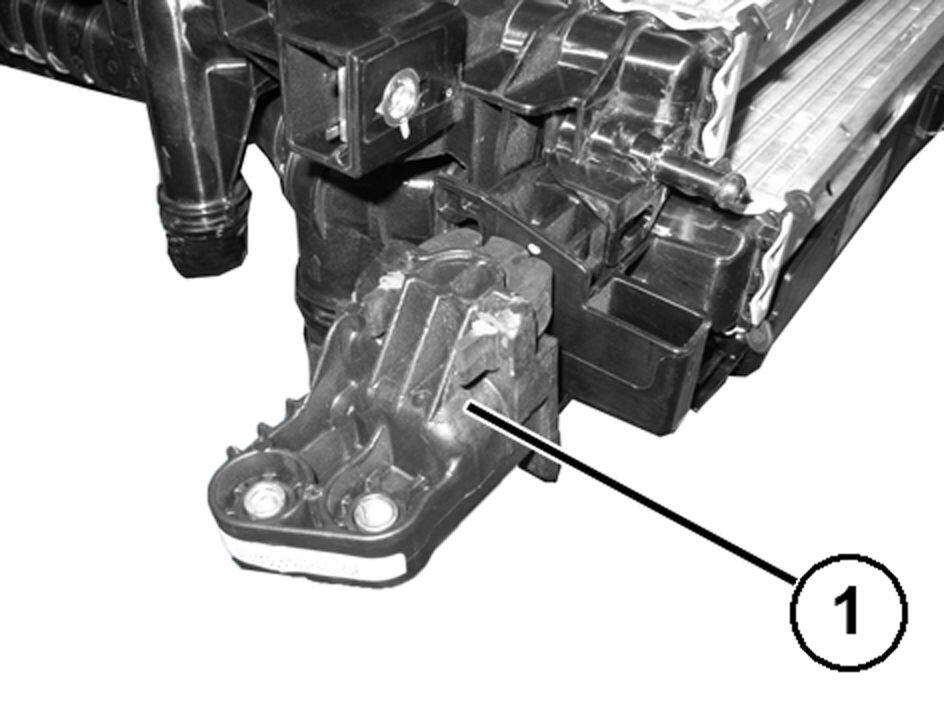

18. Remove the radiator support flexible mounts.

    Courtesy of CHRYSLER GROUP, LLC

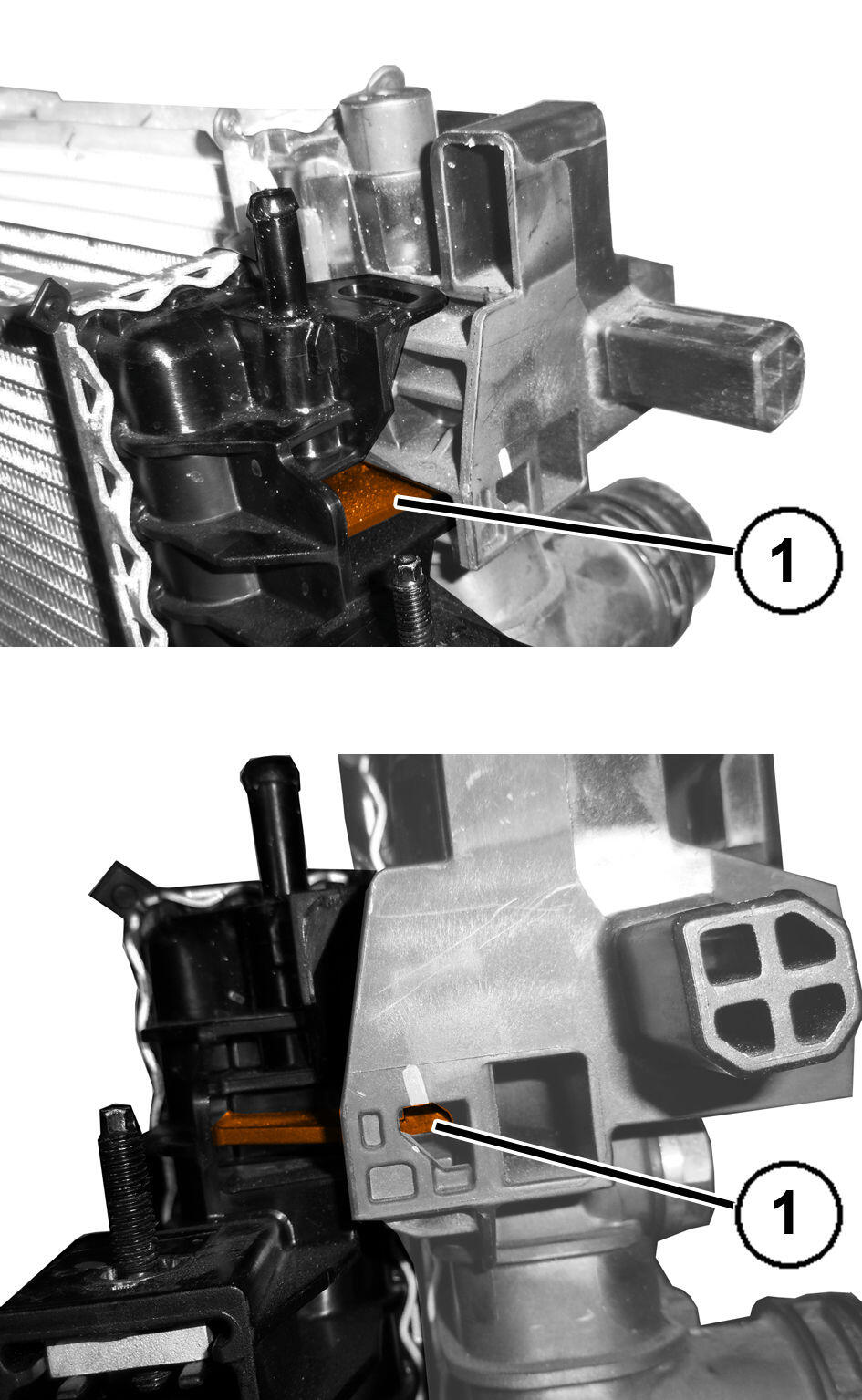

19. Release the retaining clips and remove the turbocharger air cooling system radiator.

    Courtesy of CHRYSLER GROUP, LLC

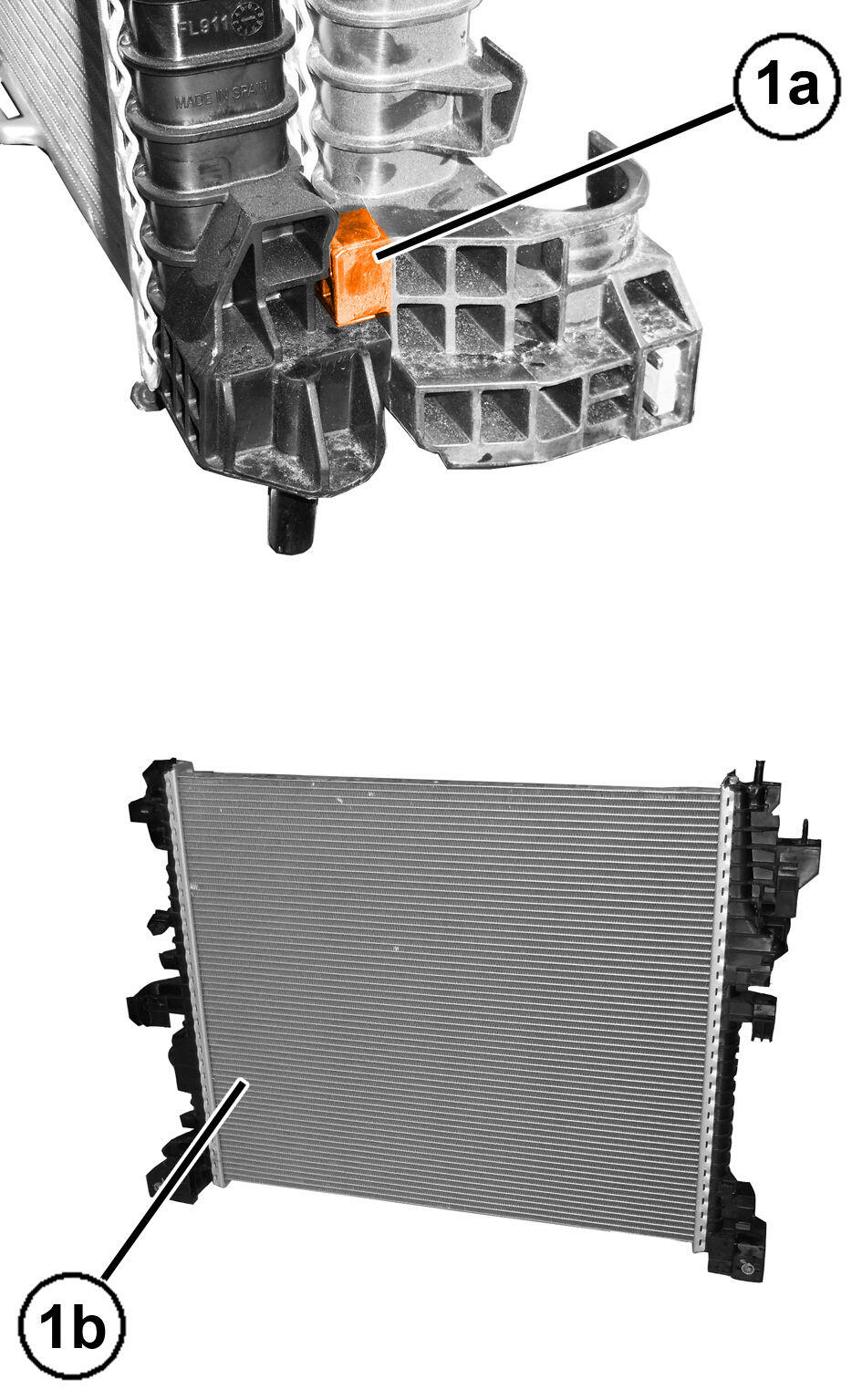

20. Release the lower retaining clips (1a) and remove the turbocharger air cooling system radiator (1b).

    Courtesy of CHRYSLER GROUP, LLC

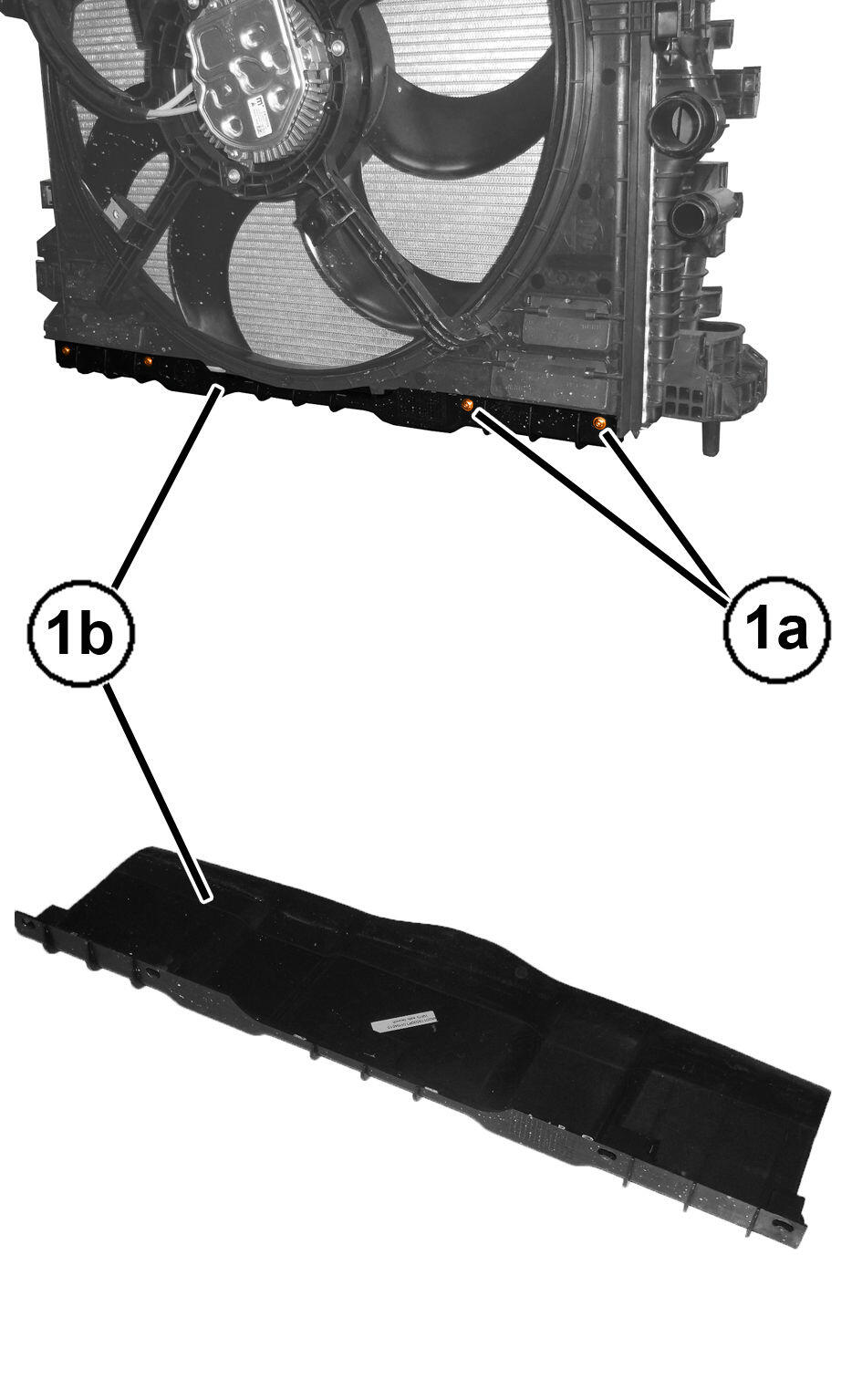

21. Remove the screws (1a) and remove the lower air duct (1b).

    Courtesy of CHRYSLER GROUP, LLC

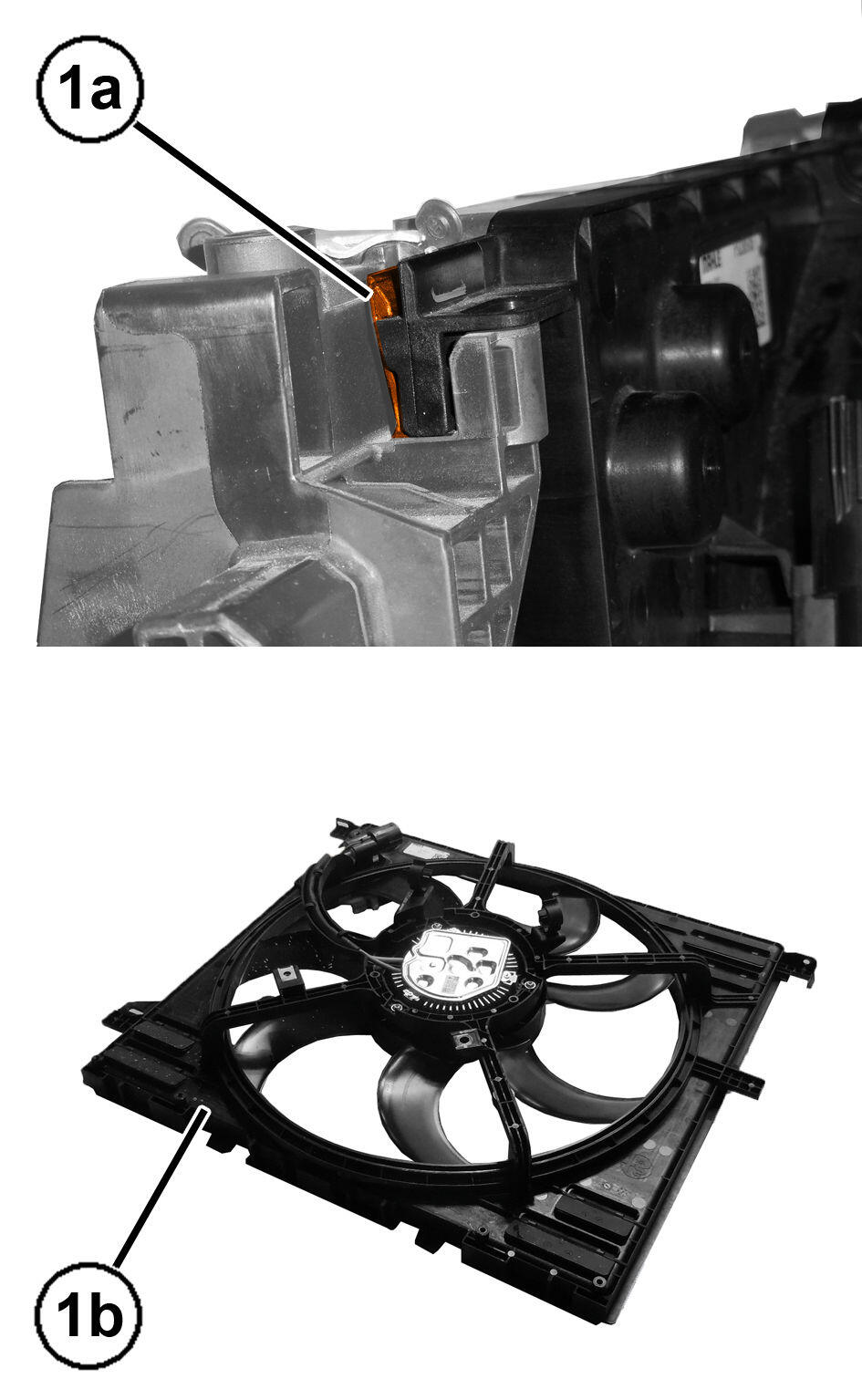

22. Release the clamps (1a) and remove the fan (1b) from the engine cooling radiator.

    Courtesy of CHRYSLER GROUP, LLC

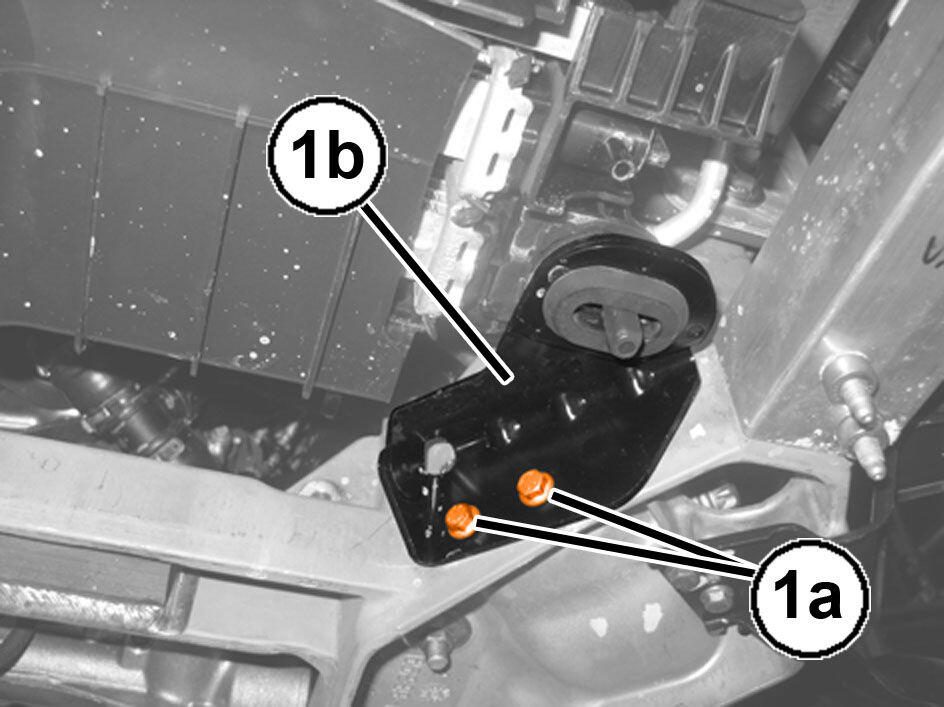

23. If necessary, remove the lower radiator mount bolts and mount

INSTALLATION

NOTE:

Check that there is a gap of 9 mm between the mounting bracket and the radiator.

1. If removed, install the radiator mount and securely tighten the bolts.
2. Position the fan on the engine cooling radiator and secure the clamps.
3. Install the lower air duct and securely tighten the screw.
4. Install the turbocharger air cooling system radiator and secure the lower retaining clips.
5. Install the turbocharger air cooling system radiator and secure the retaining clips.
6. Install the radiator support flexible mounts.
7. Install the engine cooling radiator.
8. Install the radiator support flexible mountings and securely tighten the retaining screws.
9. Install the coolant outlet pipe to the turbocharger air cooling system and secure the quick coupling.
10. Install the coolant outlet pipe to the radiator and secure the quick coupling.
11. Install the outlet pipe from the turbocharger air cooling system radiator and securely tighten the screw.
12. Install the cold air intake.
13. Install the radiator coolant inlet tube and secure the clips.
14. Connect the quick coupling for the coolant supply pipe to the turbocharger air cooling system radiator.
15. Connect the quick coupling of the coolant supply pipe to the radiator.
16. Connect the electrical connection for the fan and the wiring retaining clips on the radiator.
17. Loosen the hose clip and Install the degassing pipe and hose clip to the turbocharger air cooling system radiator.
18. Install the A/C condenser. Refer to CONDENSER, A/C, REMOVAL AND INSTALLATION .
19. Install the turbocharger air inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
20. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
21. Connect the negative battery cable.
22. Fill the engine cooling system. Refer to DRAINING AND FILLING THE ENGINE COOLING SYSTEM  .
23. Fill the turbocharger cooling system. Refer to DRAINING AND FILLING THE TURBOCHARGER COOLING SYSTEM  .
24. Install the belly pan. Refer to UNDER BODY PROTECTION .
25. Remove the support and lower the vehicle.
