Removal And Installation: Removal

  1. Place the steering wheel in a central position with the wheels straight.
  2. Disconnect and isolate the negative battery cable.
  3. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  4. Recover the refrigerant from the refrigerant system. Refer to R-1234YF REFRIGERANT SYSTEM RECOVERY .
  5. Remove the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .
  6. Remove the steering column control module. Refer to MODULE, STEERING COLUMN CONTROL (SCCM), REMOVAL AND INSTALLATION .
  7. Remove the right front floor air outlet. Refer to OUTLET, AIR, REMOVAL AND INSTALLATION .
  8. Remove the engine box reinforcement brace. Refer to BRACE, ENGINE BOX REINFORCEMENT, REMOVAL AND INSTALLATION .
  9. Remove the A/C suction line. Refer to LINE, A/C SUCTION, REMOVAL AND INSTALLATION .
    GC0197764Courtesy of CHRYSLER GROUP, LLC

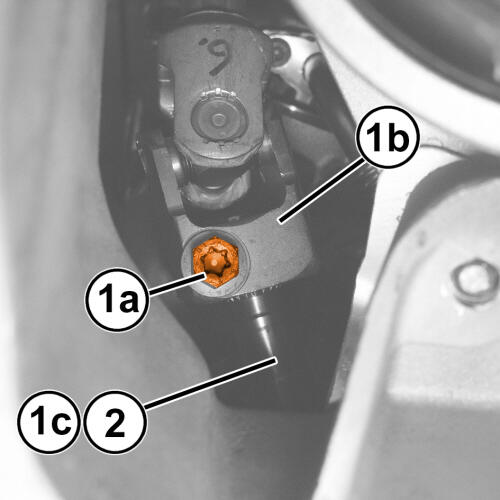

  10. Remove and DISCARD  the mounting bolt (1a) securing the steering control shaft end (1b) to the steering gear (1c).
  11. Disconnect the end of the steering control shaft (1b) from the steering gear (1c).
    GC0197477Courtesy of CHRYSLER GROUP, LLC

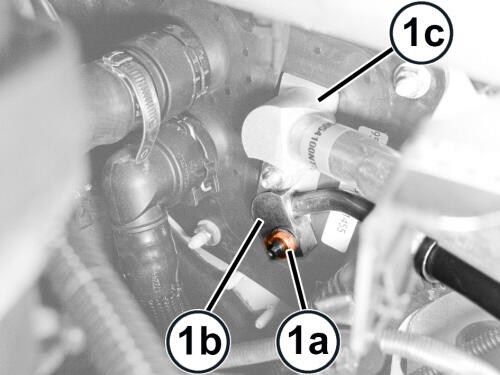

  12. Remove the nut (1a) that secures the A/C liquid line (1b) to the expansion valve (1c).
    GC0198331Courtesy of CHRYSLER GROUP, LLC

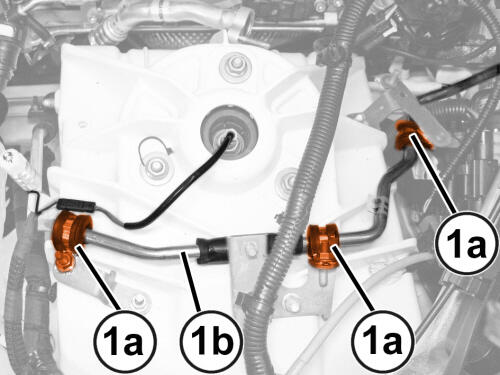

  13. Remove the A/C liquid line retaining clamps (1a) from the strut tower.
  14. Move the A/C liquid line (1b) out of the way.
    GC0198093Courtesy of CHRYSLER GROUP, LLC

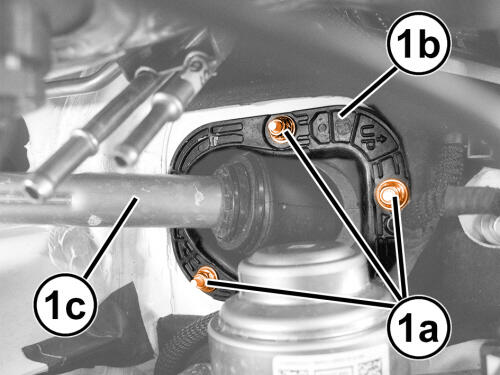

  15. Remove the mounting nuts (1a) securing the external profile (1b) of the bulkhead seal of the steering control shaft (1c).
    GC0198554Courtesy of CHRYSLER GROUP, LLC

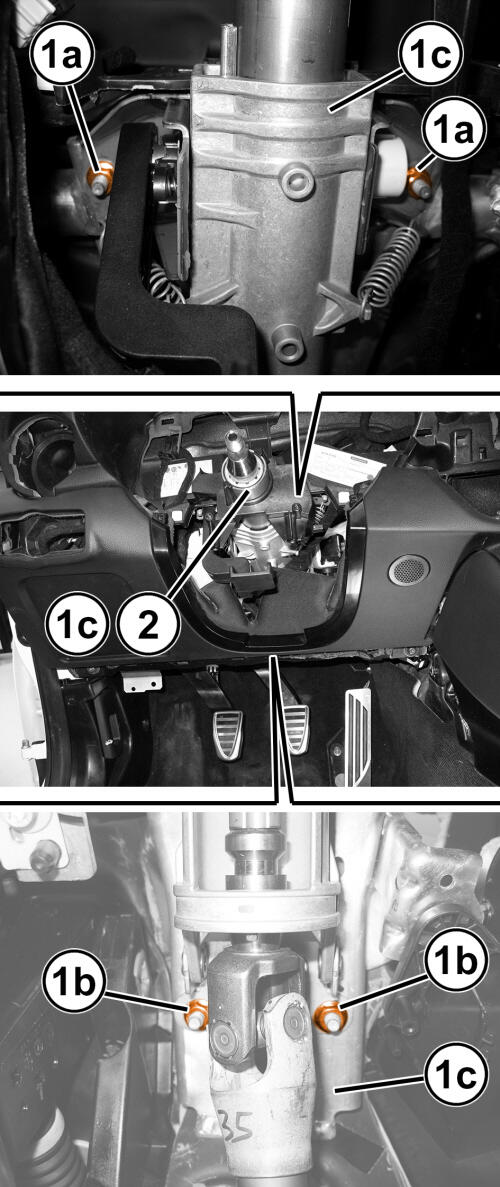

  16. Remove the mounting nuts (1a) and (1b) securing the steering control shaft support (1c) to the crossmember under the dashboard.
  17. Slightly lower the steering column shaft support (1c).
    GC0197762Courtesy of CHRYSLER GROUP, LLC

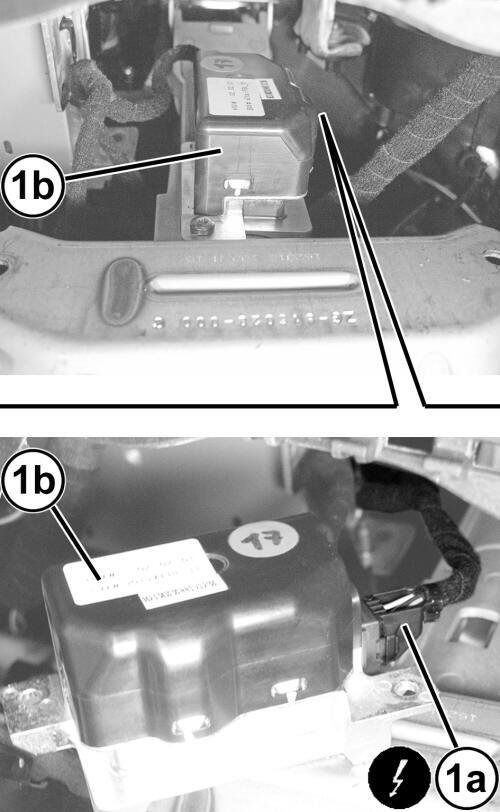

  18. Disconnect the electrical harness connector (1a) for the electric steering wheel lock module (1b).
    GC0197527Courtesy of CHRYSLER GROUP, LLC

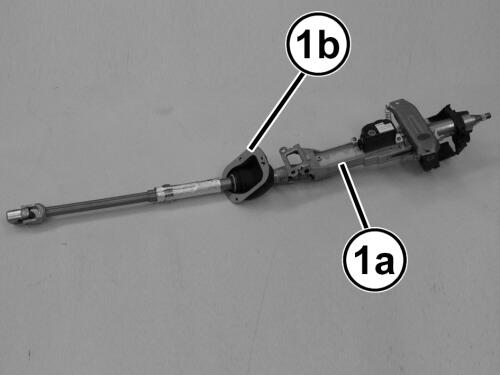

  19. Working carefully and with the help of an assistant, remove the support with the steering column shaft (1a) from the passenger compartment, bringing the external profile (1b) of the bulkhead seal inside the passenger cabin.
    GC0193338Courtesy of CHRYSLER GROUP, LLC
  20. If necessary, release the retaining clip (1a) and remove the heat shield (1b) releasing it from the housing.
    GC0194559Courtesy of CHRYSLER GROUP, LLC

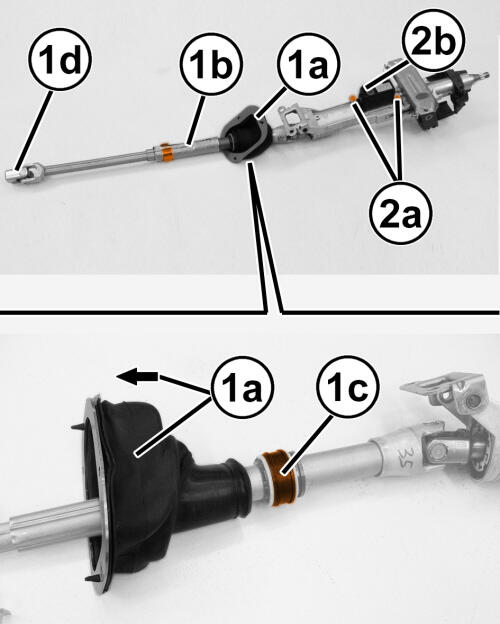

  21. If necessary, to remove the bulkhead seal (1a) remove the heat shield (1b).
  22. Release the bulkhead seal (1a) from the housing (1c)
  23. Remove the bulkhead seal (1a) from the shaft, taking care not to damage it while passing it over the cardan joint (1d).
  24. If required, remove the mounting bolts (2a) and remove the electronic steering wheel lock module (2b).
