Removal And Installation: Removal

NOTE:

Quadrofiglio model shown, base models similar.

NOTE:

Removal and installation process is the same for both sides of the vehicle.

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
Remove the front brake rotor. Refer to ROTOR, BRAKE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Remove the three disc brake guard to knuckle mounting bolts (1a) and remove the disc brake guard (1b).

Courtesy of CHRYSLER GROUP, LLC

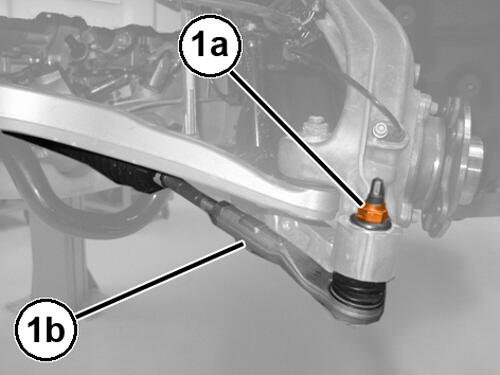

Remove the outer tie rod end to knuckle mounting nut (1a), and separate the outer tie rod end (1b) from the knuckle.

Courtesy of CHRYSLER GROUP, LLC

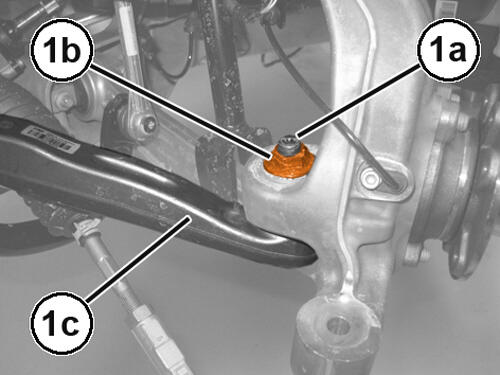

Holding the tension strut stud (1a) remove and DISCARD the tension strut (1c) to knuckle mounting nuts (1b).

Courtesy of CHRYSLER GROUP, LLC

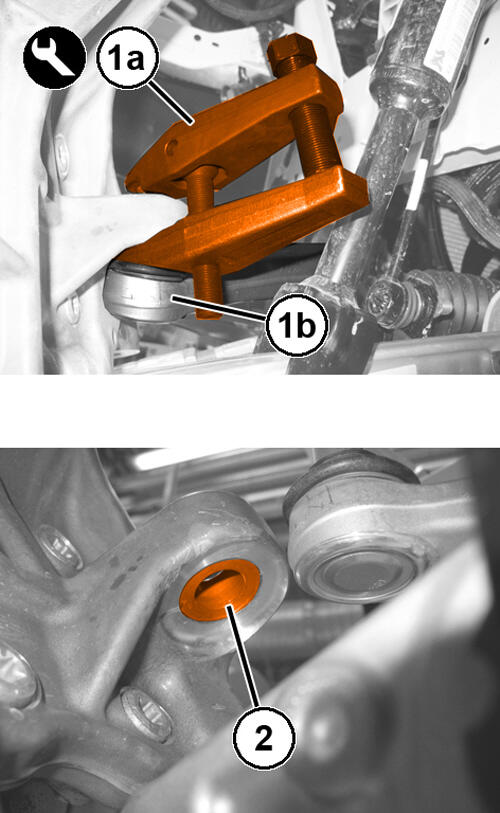

Using special tool (special tool #2032500020, Remover, Front Suspension Ball Joint) (1a) and separate the tension strut (1b) from the knuckle.
Inspect and make sure that the bushing (2) is in its original position.

Courtesy of CHRYSLER GROUP, LLC
Remove the lower control arm to knuckle mounting bolt (1).

Courtesy of CHRYSLER GROUP, LLC

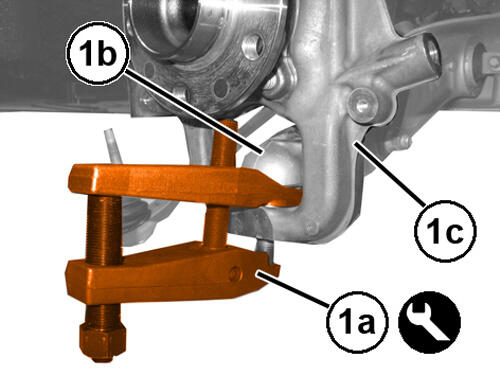

Install special tool (special tool #2032500020, Remover, Front Suspension Ball Joint) (1a) remover and separate the lower control arm (1b) from the knuckle (1c).

Courtesy of CHRYSLER GROUP, LLC

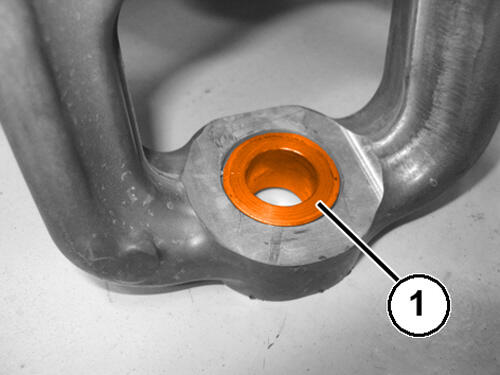

Inspect the bushing (1) making sure that its in its original position.

Courtesy of CHRYSLER GROUP, LLC

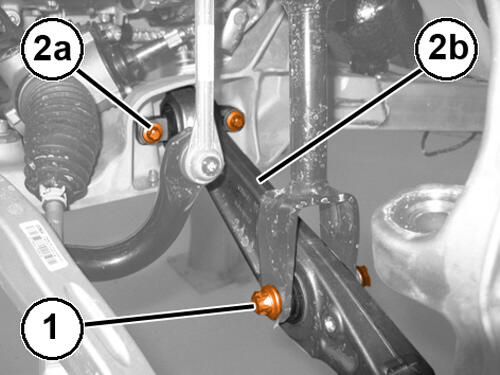

Remove the strut assembly to lower control arm mounting bolt (1).
Remove the two lower control arm to front cradle mounting bolts (2a).
Remove the lower control arm (2b).
