Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the engine covers. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

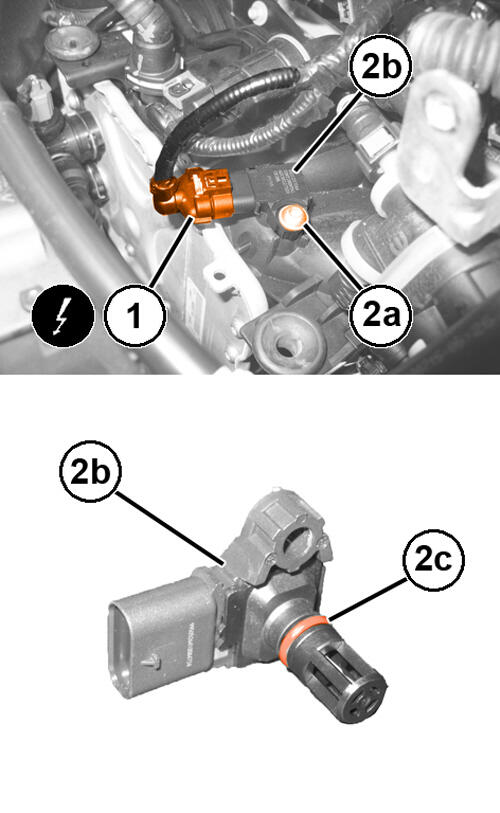

   Courtesy of CHRYSLER GROUP, LLC

3. Disconnect the Temperature and Manifold Air Pressure (TMAP) wire harness connection (1).
4. Remove the screw (2a) and remove the TMAP sensor (2b) complete with O-ring (2c).

INSTALLATION

1. Install the TMAP sensor complete with new O-ring and securely tighten the screw.
2. Connect the TMAP sensor wire harness connection.
3. Install the engine covers. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
