Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

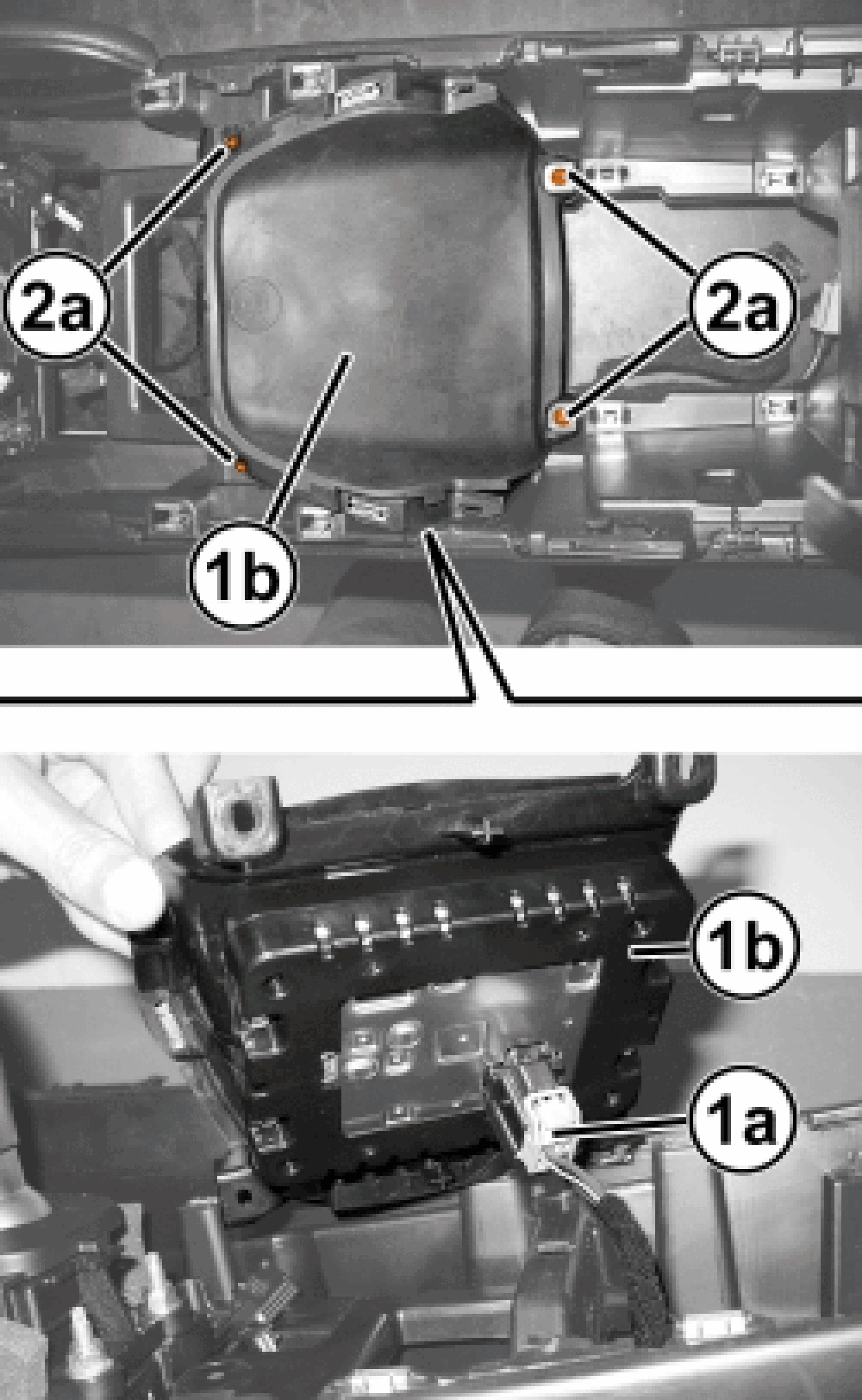

3. Remove the fasteners (2a) from the wireless charging module (1b) and remove it from the floor console.
4. Disconnect the wire harness connector (1a) from the wireless charging pad module (1b).

INSTALLATION

1. Connect the wire harness connector to the wireless charging pad module.
2. Position the wireless charging pad module to the floor console, then install the fasteners and tighten them securely.
3. Install the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
