Description And Operation
The engine cooling system is divided into two sub-systems that do not interact:
- A High Temperature (HT) cooling system that controls the temperature of the engine coolant.
- A Low Temperature (LT) cooling system that controls the coolant temperature of the intercoolers.

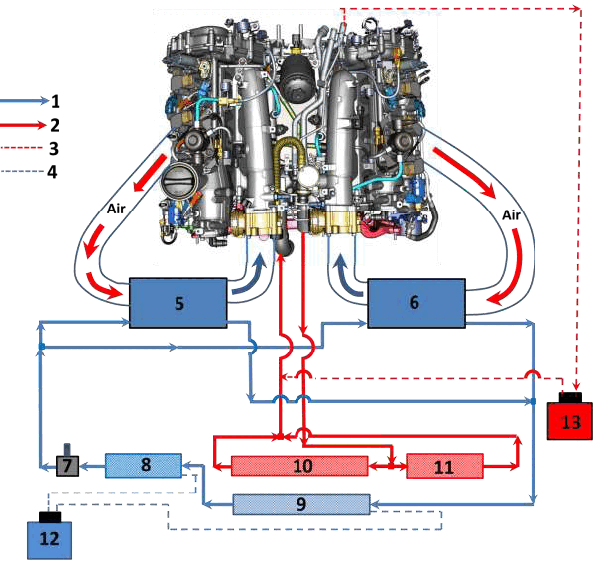

- (1) LT cooling system
- (2) HT cooling system
- (3) Expansion tank connections for HT system
- (4) Expansion tank connections for LT system
- (5) Right bank intercooler
- (6) Left bank intercooler
- (7) Electric coolant pump
- (8) Secondary radiator for LT system
- (9) Primary radiator for LT system
- (10) Primary radiator for HT system
- (11) Secondary radiator for HT system
- (12) Expansion tank for LT system
- (13) Expansion tank for HT system
