Removal And Installation: Left

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

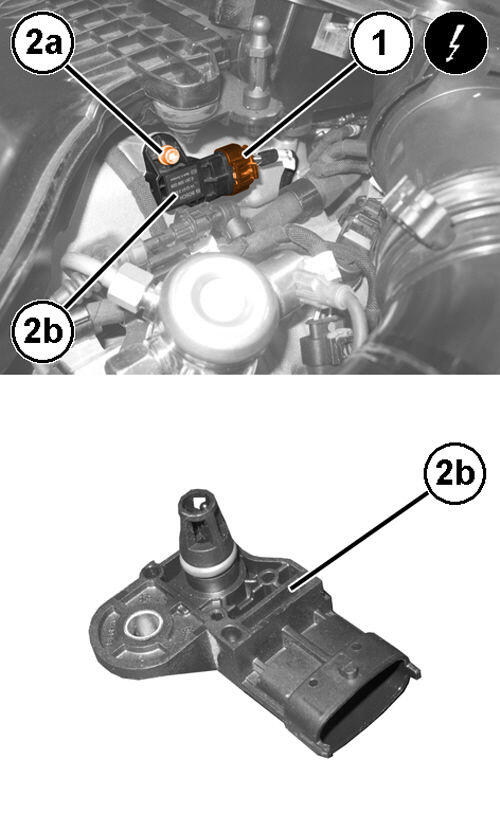

3. Disconnect the wire harness connection (1) for the left air temperature/pressure sensor.
4. Remove the screw (2a) and disengage the left air temperature/pressure sensor (2b) from the intake manifold with the O-ring.

INSTALLATION

1. Place the left air temperature/pressure sensor back in its housing with new O-ring and securely tighten the screw.
2. Connect the wire harness connection for the left air temperature/pressure detector.
3. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
