Fuel System Pressure Release

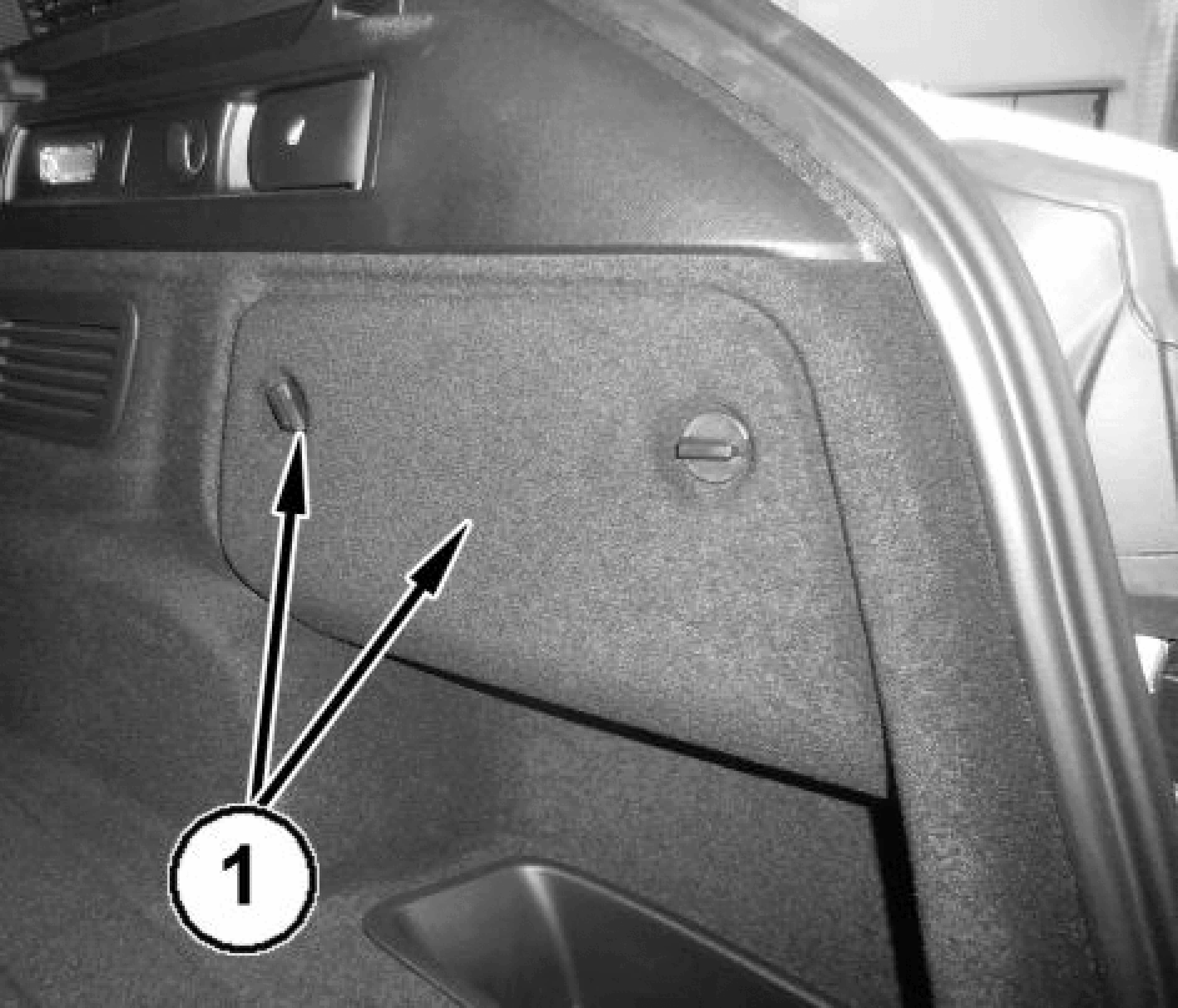

GC0198662Courtesy of CHRYSLER GROUP, LLC
  1. Remove the right-hand side panel (1).
  2. Remove the submerged fuel pump fuse F83.
  3. Start vehicle several times until all the pressure in the fuel distribution manifolds has discharged.
  4. Put the fuel pump fuse back in its housing and close the right-hand side panel.
