Removal And Installation: Installation

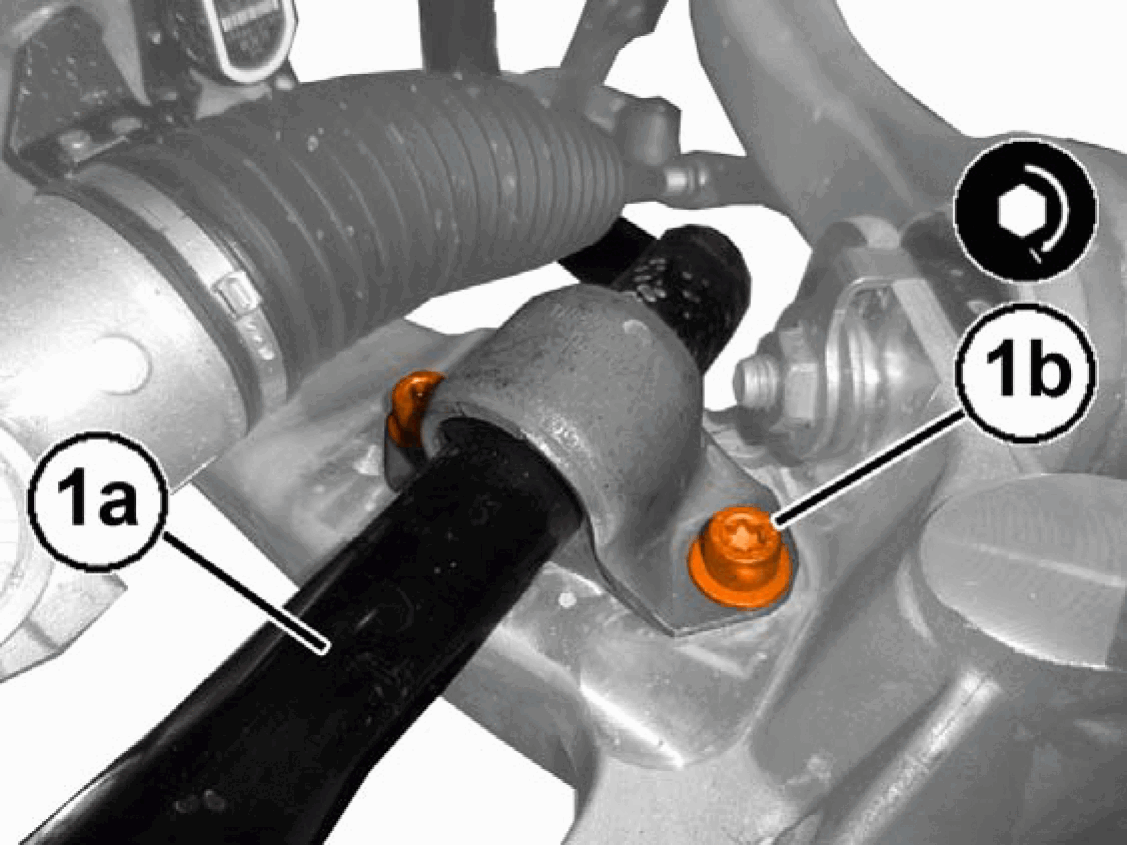

GC0196069Courtesy of CHRYSLER GROUP, LLC
  1. Position the stabilizer bar (1a) to the front suspension crossmember.
  2. On each side of the vehicle install the stabilizer bar bolts (1b) and tighten to the proper torque specifications. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  3. Install the front suspension crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
