Removal And Installation-Rear Power Outlet: Installation
- Inspect the power outlet seat for damage.

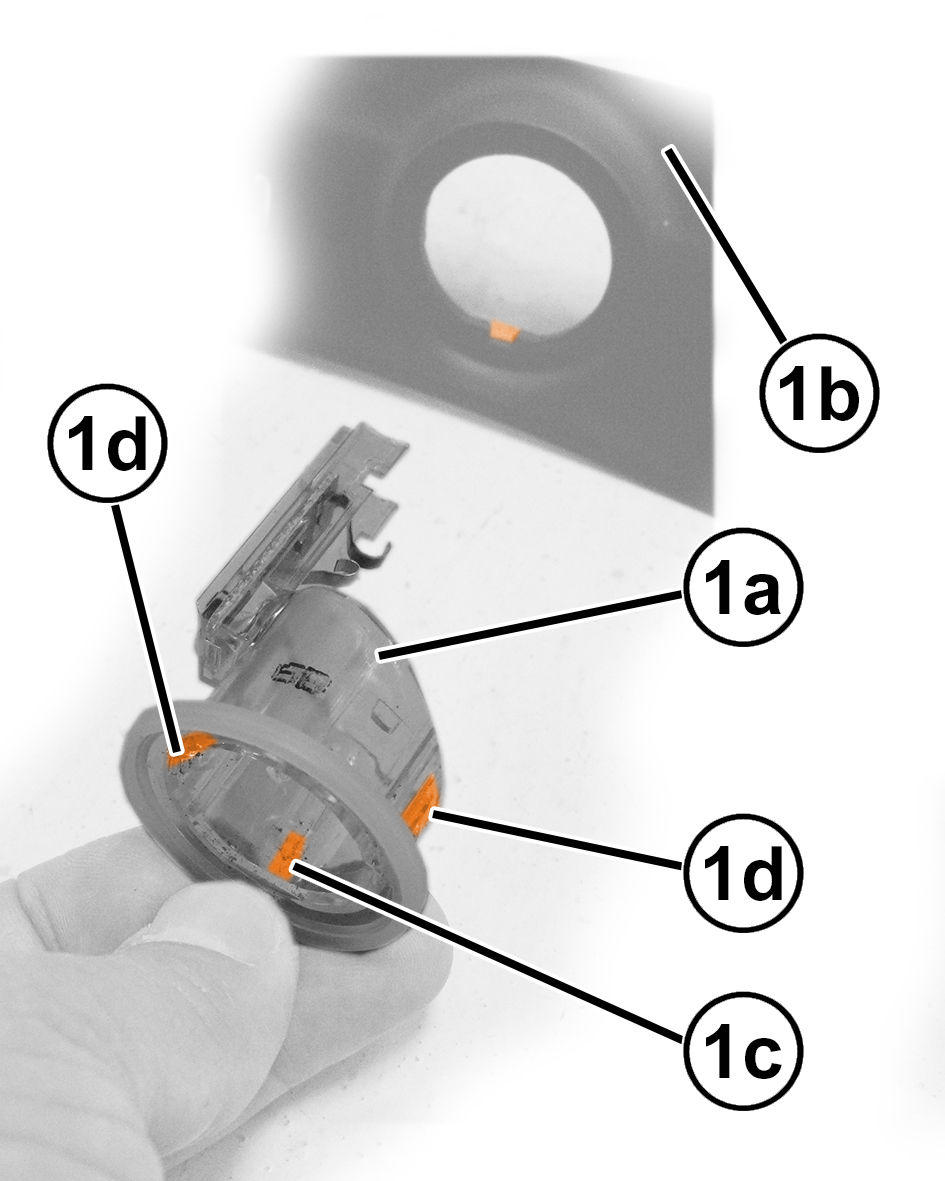

- If removed, install the ring (1a) engaging the tooth (1b) into the slot (1c) and the retainers (1d).

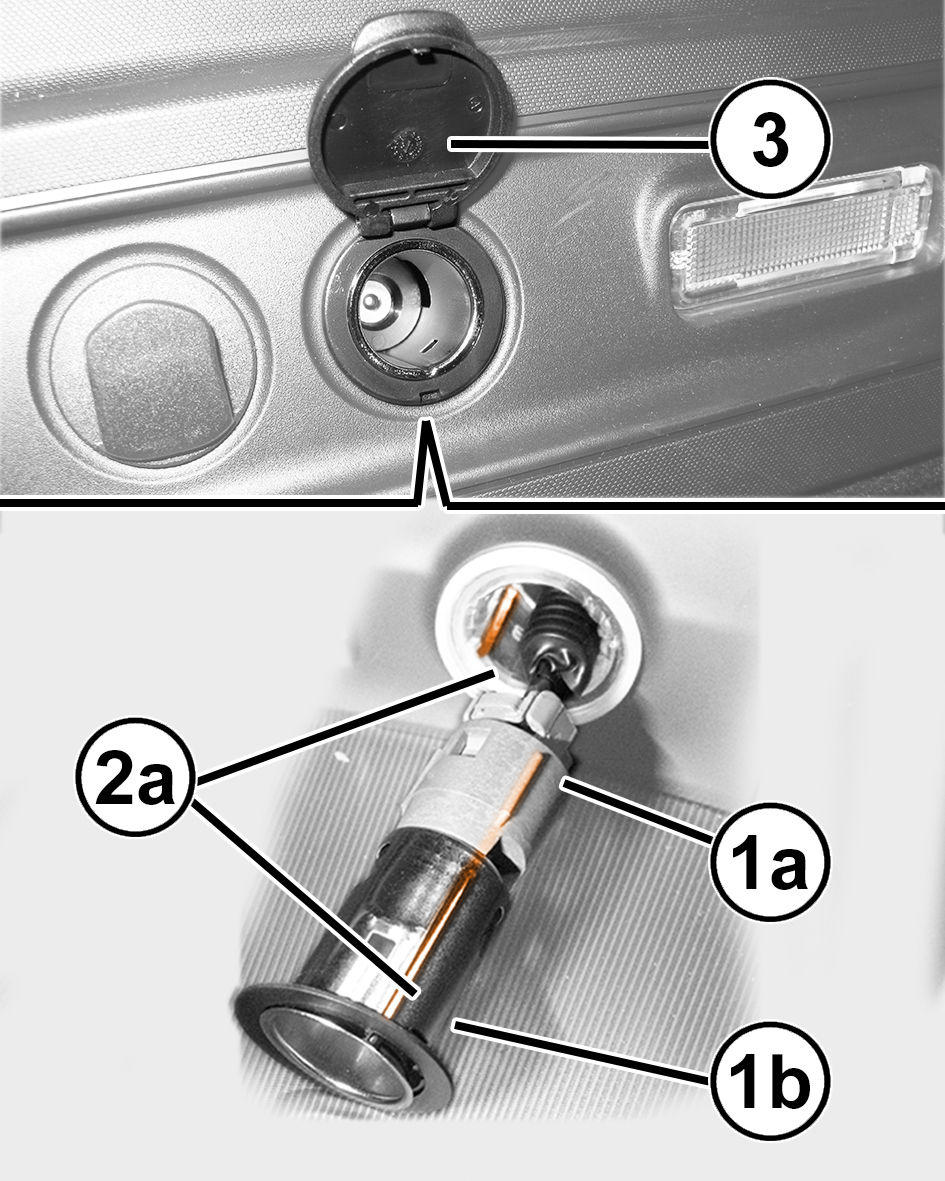

- Connect the wire harness connector (1a) and install the cigarette lighter (1b). Align the ridges (2a) and install into the slot.
- Connect the negative battery cable(s). Refer to BATTERY CONNECTION PROCEDURE .
