2.9L - Right Side

NOTE:

If the camshaft position sensor is replaced, connect the diagnosis scan tool, select "PCM", select "Miscellaneous functions" menu and then perform the "Reset Adaptive Parameters" routine.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  3. Remove the air cleaner inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

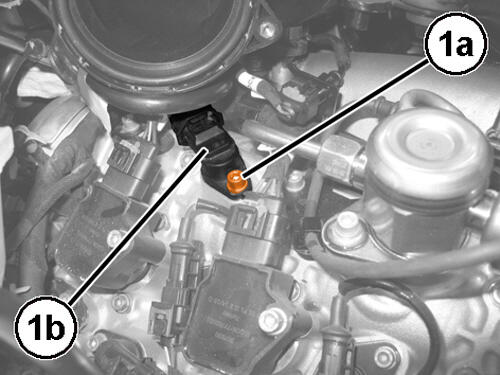

    GC0194853Courtesy of CHRYSLER GROUP, LLC
  4. Remove the camshaft position sensor (1b) retaining screw (1a).

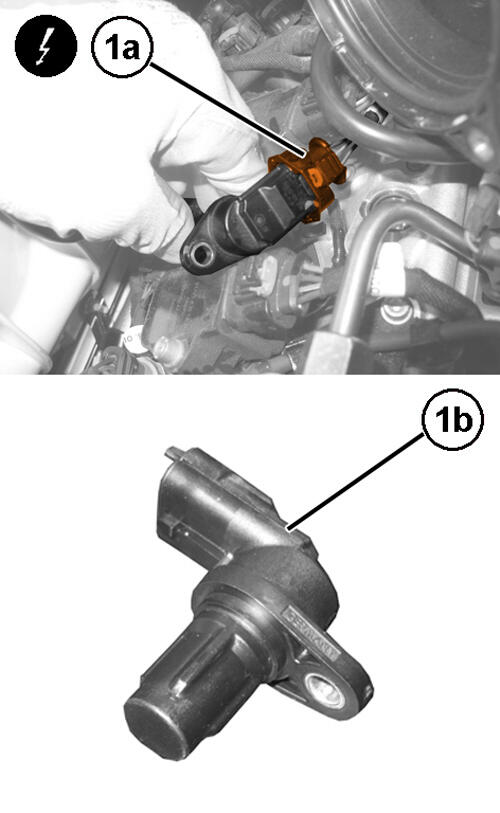

    GC0193253Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the wiring harness connector (1a) from the camshaft position sensor (1b).
  6. Remove the camshaft position sensor and O-ring.

INSTALLATION

  1. Inspect the camshaft position sensor and the sensor wiring harness.

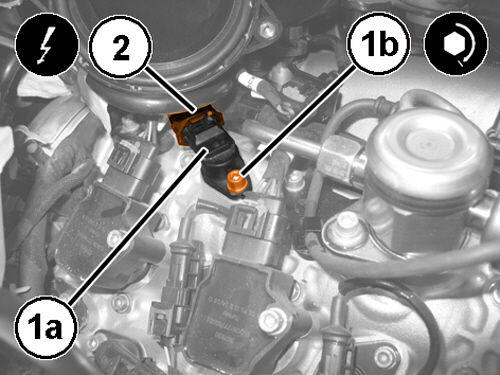

    GC0194672Courtesy of CHRYSLER GROUP, LLC
  2. Place the camshaft position sensor (1a) back in its housing with a new O-ring and tighten the screw (1b) to the proper specification.. Refer to TECHNICAL SPECIFICATIONS .
  3. Connect the wiring harness connector (2) to the camshaft position sensor.
  4. Install the air cleaner inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  5. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable.
  7. If the camshaft position sensor is replaced, connect the diagnosis scan tool, select "PCM", select "Miscellaneous functions" menu and perform the "Reset adaptive parameters" routine.
