Sensor-Headlamp Level-Rear (Standard) Connector End View (D1637A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1/07691/97

Part Description: Not Available

Connector No: D1637A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

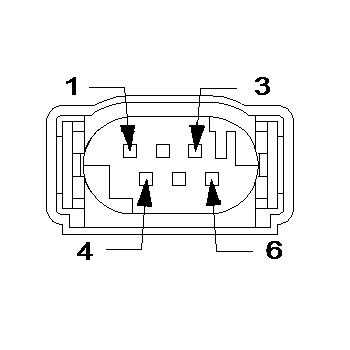

Fig 1: Sensor-Headlamp Level-Rear Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Headlamp Level-Rear Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z137

0.5

GROUND

EXPORT PREMIUM

L963

VT/WH

0.5

HEADLAMP LEVELING SENSOR REAR SIGNAL

EXPORT PREMIUM

L961

DB/RD

0.5

HEADLAMP LEVELING SENSOR 5 VOLT SUPPLY-FT

EXPORT PREMIUM

⁽¹⁾	Pins not listed are not used for this connector
