Description And Operation

Courtesy of CHRYSLER GROUP, LLC

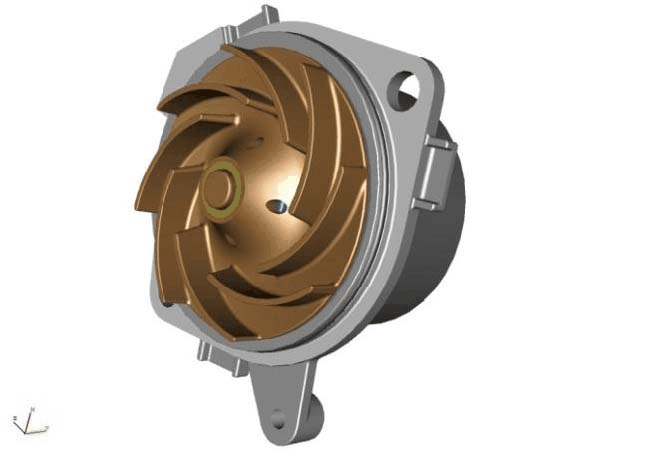

It is a centrifugal vane-type pump secured to the cylinder head - timing side - and is operated directly through the timing belt. The delivery duct is partly inside the intake chamber, while return occurs through a suitable duct.
