Removal And Installation: Removal
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
- Disconnect and isolate the negative cable from the battery. Wait two minutes for the system capacitor to discharge before further service.
- Remove the passenger seat cushion cover. Refer to COVER, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION or COVER, SEAT CUSHION, REAR, REMOVAL AND INSTALLATION .
- Reach under the back of the front seat cushion frame to access and disengage the Occupant Detection Sensor (ODS) pigtail wire harness from the retainers.

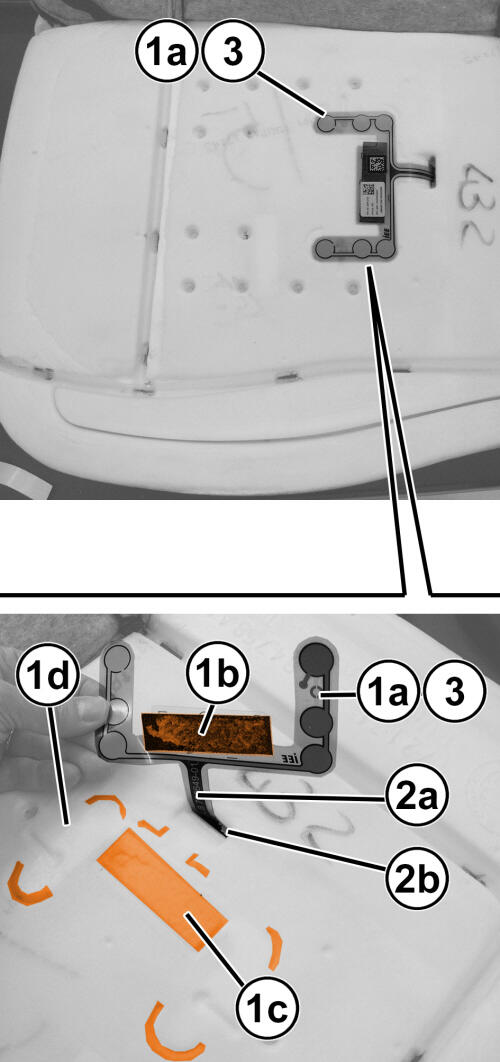

- Carefully disengage the adhesive patch (1b) of the ODS from the top surface of the seat cushion foam (1d).NOTE:
Care must be taken not to pull off any of the seat cushion foam along with the ODS mat (1a). If part of the seat cushion foam is removed with the mat, the entire seat cushion foam should be replaced.
- Extract the tail of the ODS and the sensor pigtail wire harness (2a) through the clearance hole (2b) in the seat cushion foam (1d).
