Upper Shroud: Installation

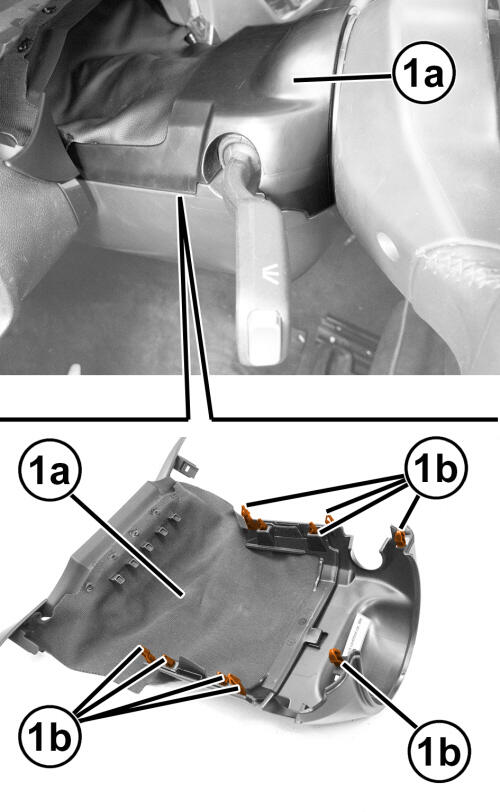

GC0193192Courtesy of CHRYSLER GROUP, LLC
  1. Position the upper steering column shroud (1a) of the steering column, engaging its inner side retainers (1b).

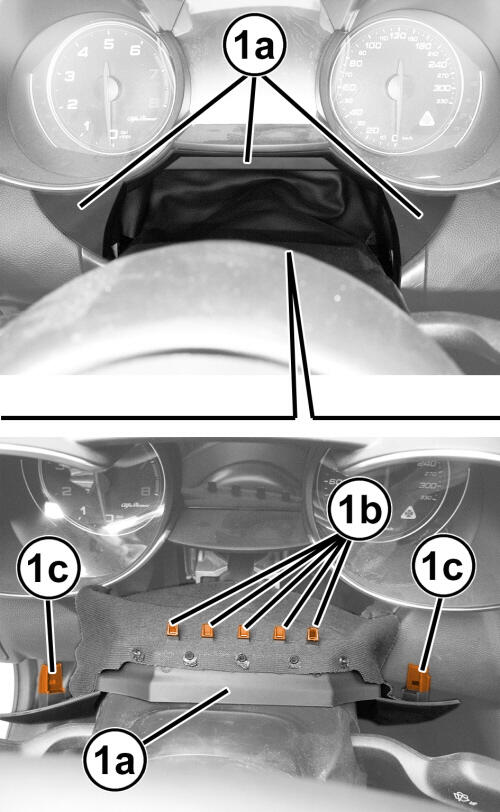

    GC0194923Courtesy of CHRYSLER GROUP, LLC
  2. Position the dashboard trim (1a) and engage the inner retainers (1b) and (1c).
  3. Return the steering wheel to the correct position.
