Removal And Installation: 2.9L

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
3. Remove air inlet connector to the turbo charger. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

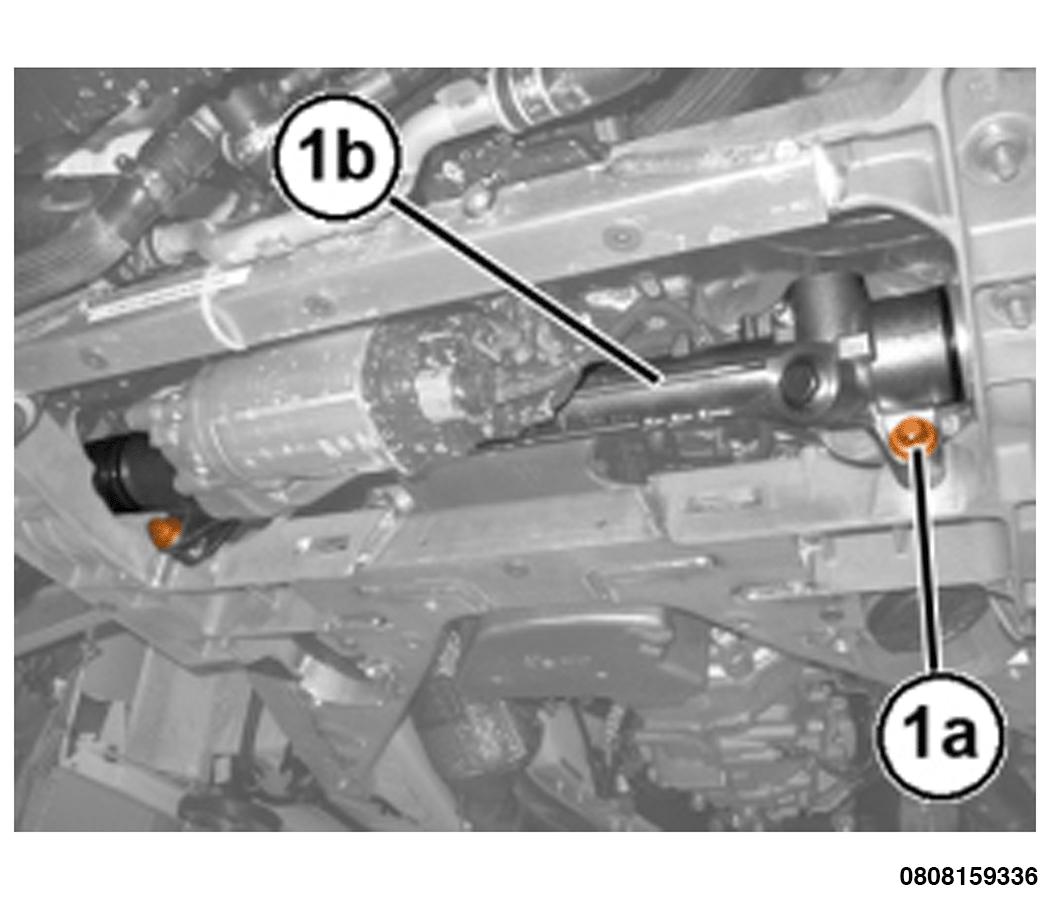

4. Remove the bolts (1a) from the steering gear (1b) and allow it to rest on the subframe.

   Courtesy of CHRYSLER GROUP, LLC

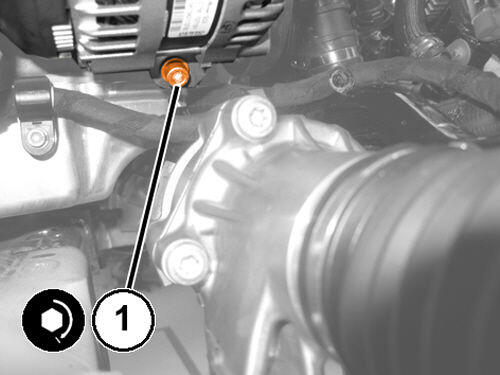

5. Remove the generator lower mounting bolt (1) that secures the generator to the crankcase.

   Courtesy of CHRYSLER GROUP, LLC

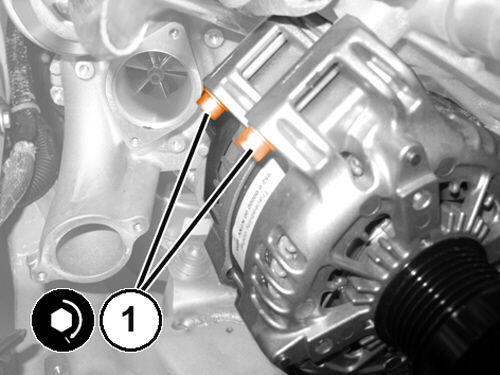

6. Remove the generator upper mounting bolts (1).

   Courtesy of CHRYSLER GROUP, LLC

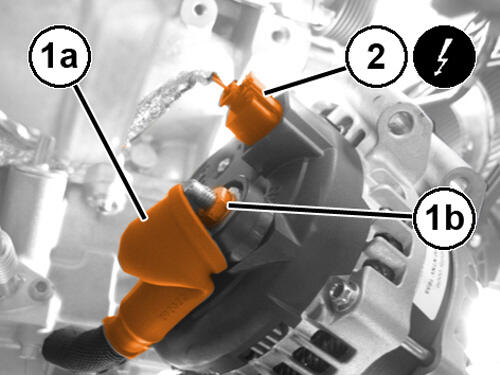

7. Reposition the generator connector guard (1a) to gain access to the nut (1b).
8. Remove the nut (1b).
9. Remove the eyelet and cable from the generator.
10. Disconnect the wiring harness connector (2) from the generator.

    Courtesy of CHRYSLER GROUP, LLC

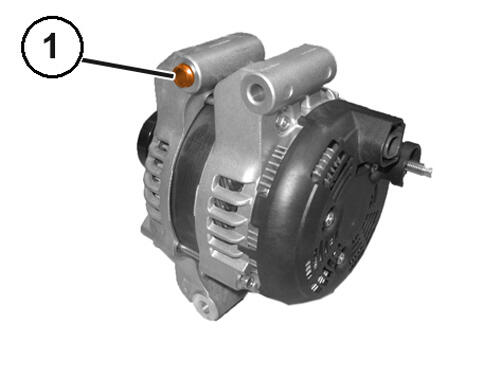

11. Remove the generator (1).

    Courtesy of CHRYSLER GROUP, LLC

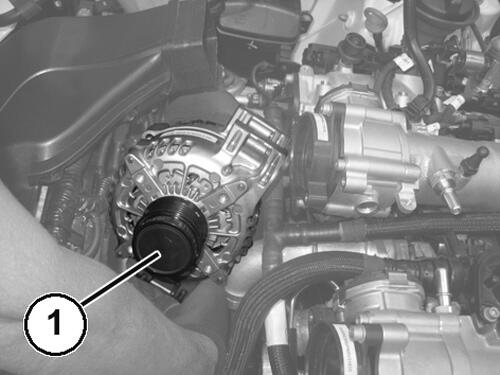

12. Check the generator guide bushing.

INSTALLATION

1. Inspect the generator integrity.

   Courtesy of CHRYSLER GROUP, LLC

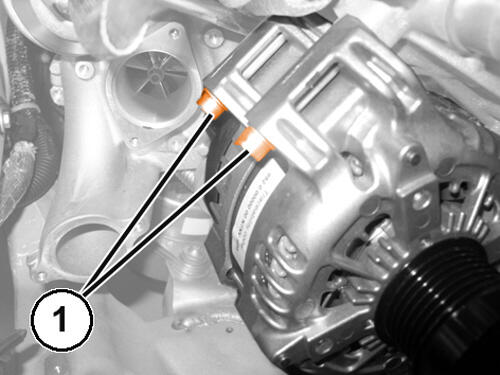

2. Position the generator and tighten the upper mounting bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

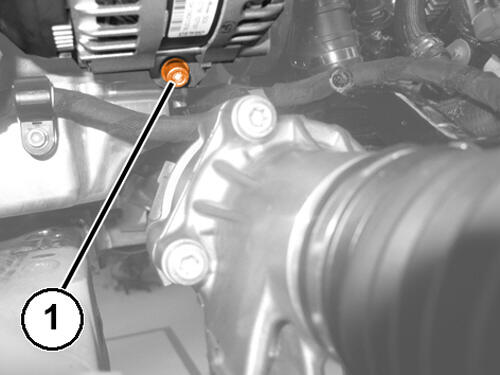

3. Install the lower generator mounting bolt. Torque the bolt to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
4. Connect the wiring harness connector to the generator.
5. Connect and secure the B+ wiring harness to the generator.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the steering gear and tighten the bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
7. Install the air inlet connector to the turbo charger. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
8. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
9. Connect the negative battery cable and perform the Powertrain Verification Test. Refer to POWERTRAIN VERIFICATION TEST .
