Removal And Installation

NOTE:

FOLLOW ALL THE PRESCRIBED SAFETY INSTRUCTIONS

Removal

Disconnect the negative battery cable.
Remove drivers airbag. Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION .
Remove steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
Remove multi function switch. Refer to SWITCH, MULTIFUNCTION, REMOVAL AND INSTALLATION .
Straighten the front wheels, engage the first steering lock towards the right and remove the ignition key.
NOTE:
Keep the steering column adjustment lever closed during all the removing/refitting stages.
Avoid the upper shaft slipping out during the removal of the electrically controlled steering device.

Courtesy of CHRYSLER GROUP, LLC
Undo the fixing screw (1a) and separate the steering column (1b) from the steering box pinion.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connections (1) for the ignition switch.
Pry up and remove the RF aerial (2) for the Alfa Code device.

Courtesy of CHRYSLER GROUP, LLC

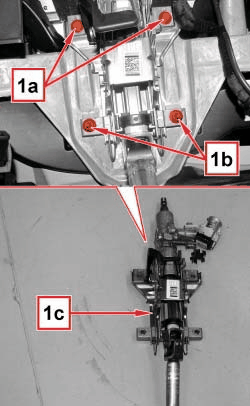

Undo the fixing screws (1a) and nuts (1b) and remove the mounting with steering control shaft (1c).

Installation

Courtesy of CHRYSLER GROUP, LLC

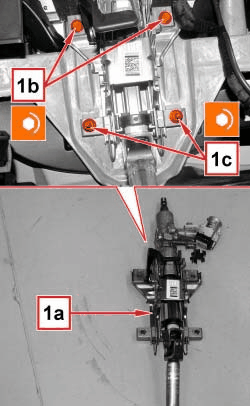

Fit the mounting with steering control shaft (1a) in its housing and tighten the fixing screws (1b) and nuts (1c).

Component	Fixing	Dia	Value (Nm)
Steering control support to crossmember under dashboard	Screw/Nut	M8x35	24

Fit the RF aerial for the Alfa Code device, engaging it with the relevant retainers.
Connect the electrical connections for the ignition switch.

Courtesy of CHRYSLER GROUP, LLC

Connect the steering column (1a) to the steering box pinion and tighten the fixing screw (1b).

Component	Fixing	Dia	Value (Nm)
Steering column to steering box pinion	Screw	M8x1.25x30	30

Install multi function switch. Refer to SWITCH, MULTIFUNCTION, REMOVAL AND INSTALLATION .
Install steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
Install drivers airbag. Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION .
Connect the negative battery cable.
