Junction Box
 Courtesy of CHRYSLER GROUP, LLC
|

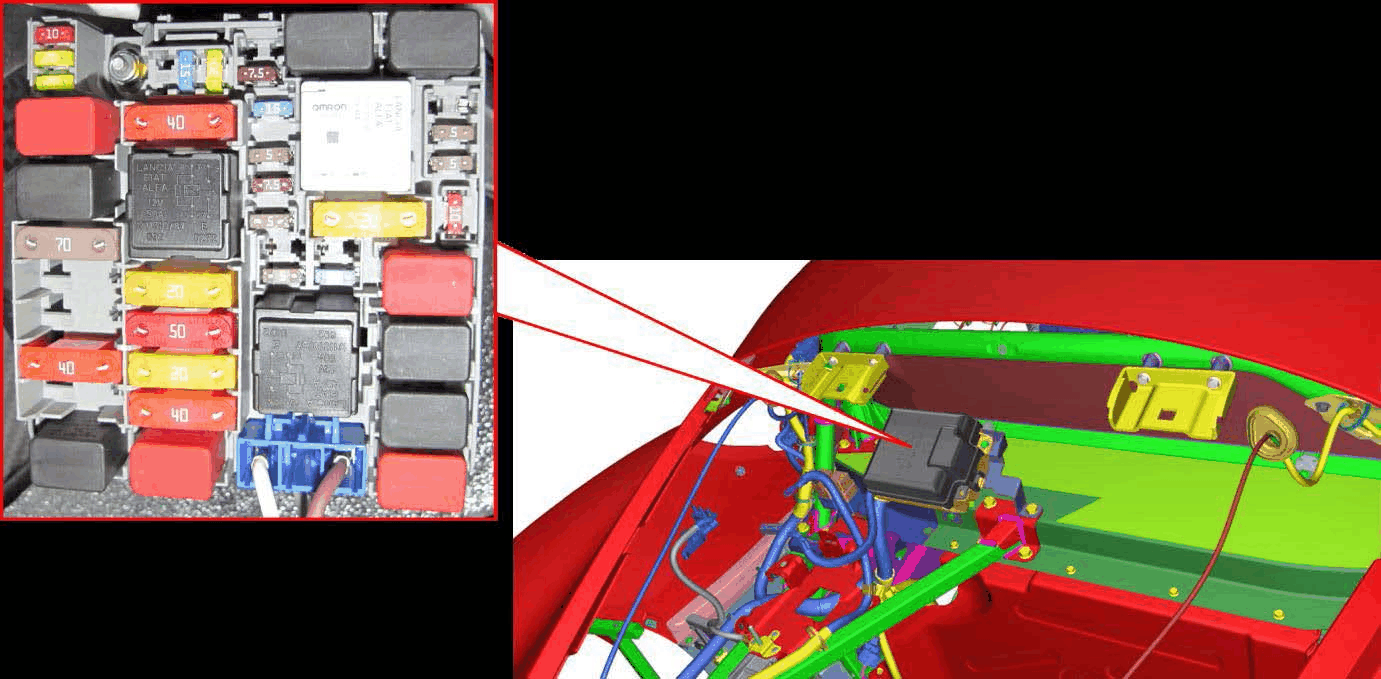

Distribution of the electrical power supplies to the single electrical loads and devices is managed with a junction unit placed inside the engine compartment (vehicle rear area).
| FUSES |
| F01 |
70 A |
Body Computer control unit BCM1 |
| F02 |
- |
Available |
| F03 |
20 A |
Ignition switch |
| F04 |
40 A |
Braking system (pump) |
| F05 |
20 A |
BSM braking system (valves) |
| F06 |
30 A |
Low speed engine cooling fan |
| F06 |
40 A |
Low speed engine cooling fan |
| F07 |
50 A |
High speed engine cooling fan |
| F08 |
30 A |
HVAC (Passenger compartment fan) |
| F08 |
20 A |
HVAC (Passenger compartment fan) |
| F09 |
5 A |
Xenon/halogen headlight shutter |
| F09 |
10 A |
Main beam headlights |
| F10 |
10 A |
Single tone horn |
| F11 |
20 A |
Secondary engine system loads |
| F14 |
15 A |
DDCT control unit power supply |
| F15 |
15 A |
DDCT control unit power supply |
| F16 |
5 A |
+15 ECM and DDCT |
| F17 |
10 A |
Primary engine system loads (ignition coil power supply) |
| F18 |
5 A |
+30 ECM, DDCT, radiator remote control switch coil |
| F19 |
7.5 A |
AC compressor |
| F20 |
- |
Available |
| F21 |
20 A |
Fuel pump |
| F22 |
20 A |
Primary engine system loads (Powertrain Control Module power supply) |
| F23 |
- |
Available |
| F24 |
5 A |
+15 braking system |
| F30 |
- |
Available |
| F81 |
- |
Available |
| F82 |
30 A |
Headlight washer |
| F83 |
40 A |
DDCT pump supply |
| F84 |
5 A |
After-run water pump |
| F85 |
- |
Available |
| F86 |
15 A |
12 V socket / cigar lighter |
| F87 |
- |
Available |
| F88 |
7.5 A |
Door mirror defrosters |
| T02 |
20 A |
Xenon/halogen main beam headlight shutter (Bi-LED) |
| T03 |
20 A |
Single tone horn |
| T05 |
20 A |
AC compressor |
| T06 |
30 A |
Low speed cooling fan |
| T07 |
50 A |
High speed cooling fan |
| T08 |
50 A |
HVAC, 12 V socket |
| T09 |
30 A |
Engine management system |
| T10 |
20 A |
Fuel pump |
| T14 |
30 A |
Starting enabling |
| T17 |
20 A |
After-run water pump |
| T19 |
20 A |
Door mirror defrosting |
| T20 |
30 A |
Starting inhibition |
| T30 |
50 A |
Jumper 30/87 DDCT pump supply |
