Technical Specifications: Starter

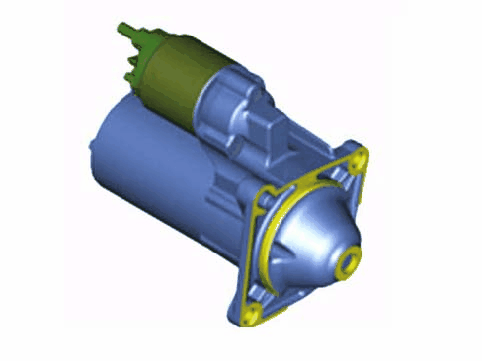

GC0167646Courtesy of CHRYSLER GROUP, LLC
  1750 Turbo petrol
Type Bosch R70 - M15
Voltage (V) 12
Nominal Power (kW) 2.0
Rotation, pinion side clockwise
No. of poles 6
Reduction ratio 5

Summary Plate

  1. Brand
  2. Part number and supplier code
  3. Supplier's brand
  4. Starter number
  5. Voltage
  6. Production site
  7. Plant code
  8. Production index
  9. Direction of rotation
