Rear Suspension: Description

Rear Suspension

Courtesy of CHRYSLER GROUP, LLC

The vehicle is equipped with two types of suspension:

• Control arms in the front part
• MacPherson in the rear part

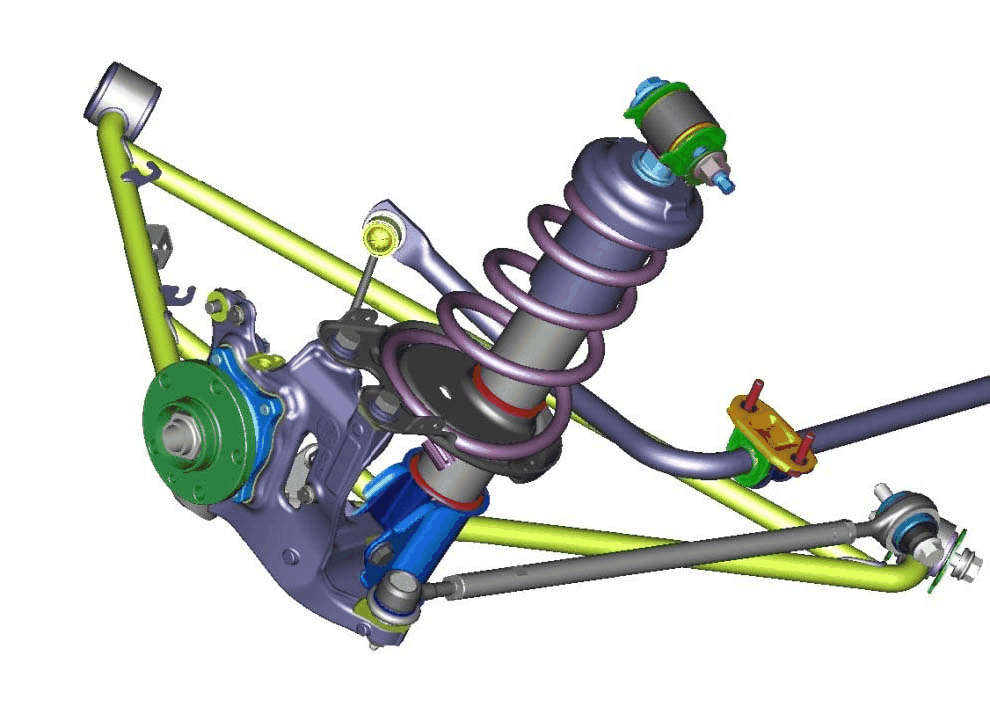

Courtesy of CHRYSLER GROUP, LLC

The rear suspension is MacPherson type. This allows the camber and toe-in angles of the rear wheels to be adjusted.

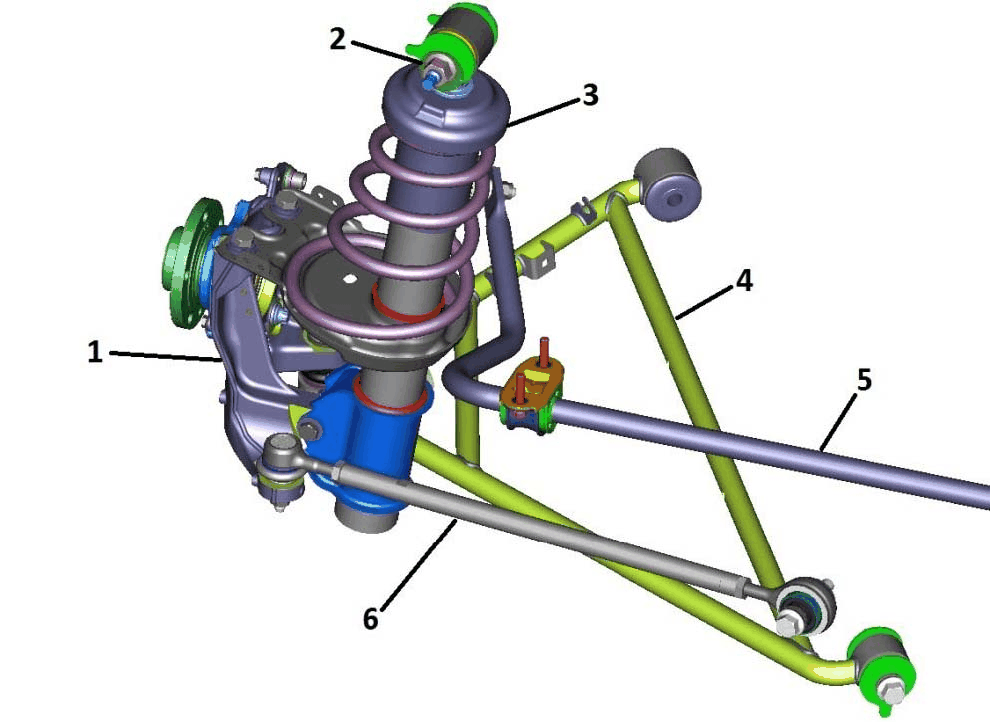

The suspension consists of the following:

Courtesy of CHRYSLER GROUP, LLC

Key

1. Steering knuckle
2. Cam for toe-in adjustment
3. Shock absorber
4. Lower control arm
5. Anti-roll bar
6. Rod for camber adjustment

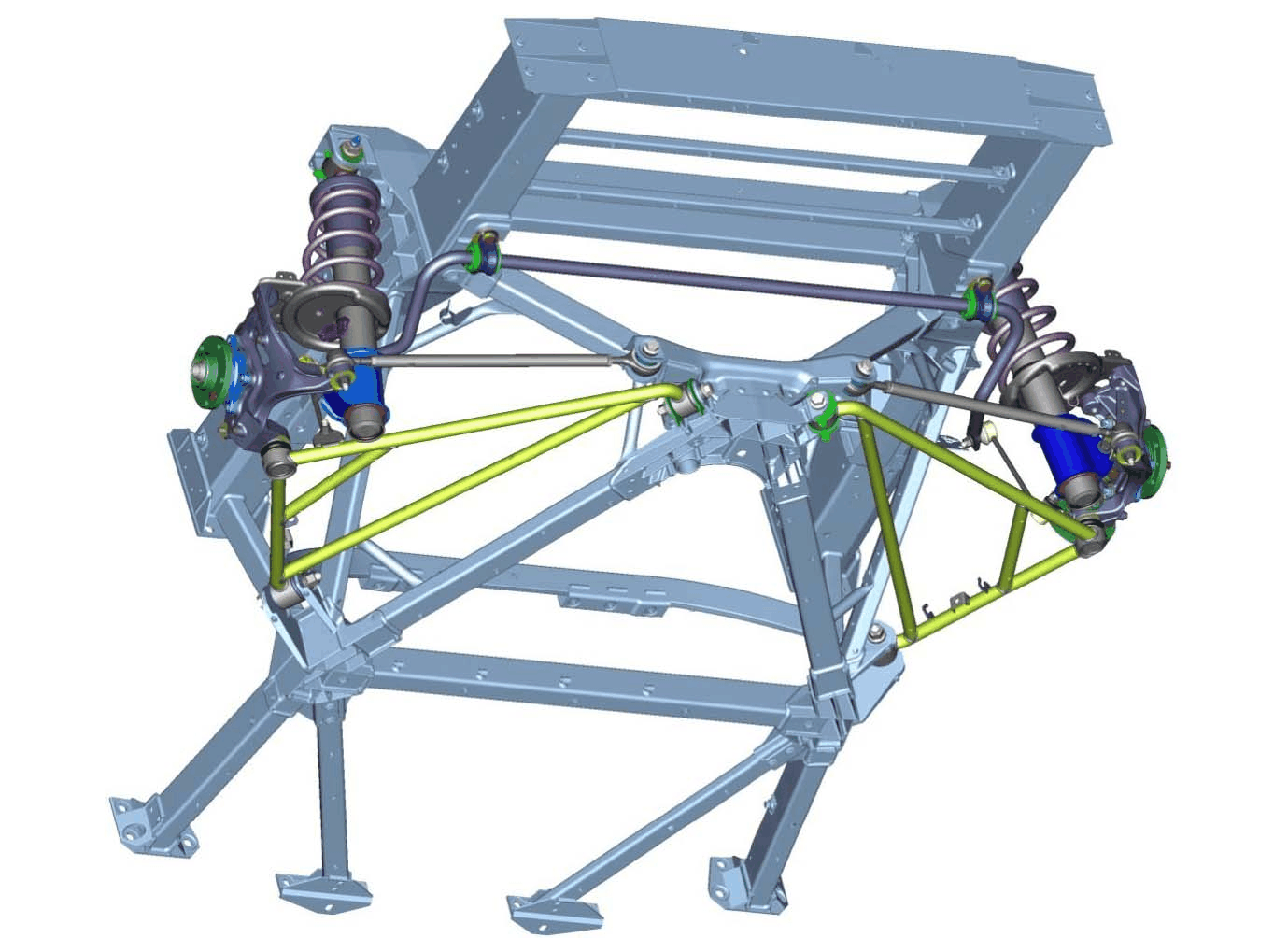

The rear suspension is connected to the rear aluminium chassis.
