Front License Plate Bracket Installation

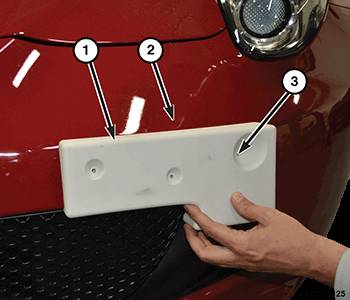

GC0168949Courtesy of CHRYSLER GROUP, LLC
  1. Using (special tool #2018500230, Guide, Front License Plate Hole) and a 2-mm drill bit, position the front license plate hole guide (1) to the front bumper (2) and drill the holes (3).

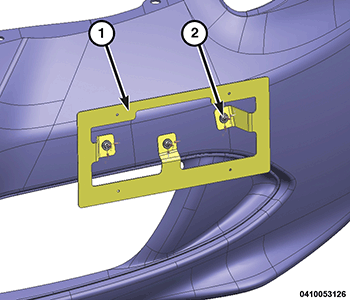

    GC0168900Courtesy of CHRYSLER GROUP, LLC
  2. Align the front license plate bracket (1) to the front bumper and install the screws (2).
  3. Install the front plate.
