MARELLI Tester Keyboard Functions (00.94.02)

WARNING: This page is about the 164 LS, Automatic, which is a different variant/trim than selected.

Publication date: 1994-06-10
Reference number: 00.94.02

MARELLI TESTER KEYBOARD FUNCTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 00.94.02, Date of Issue: June 10, 1994

Model(s): 1994 Alfa Romeo 164 LS & Quad

Group: 00 - General

Bulletin No.: 00.94.02

Date: June 10, 1994

Marelli Tester keyboard functions are shown in Fig 1 .

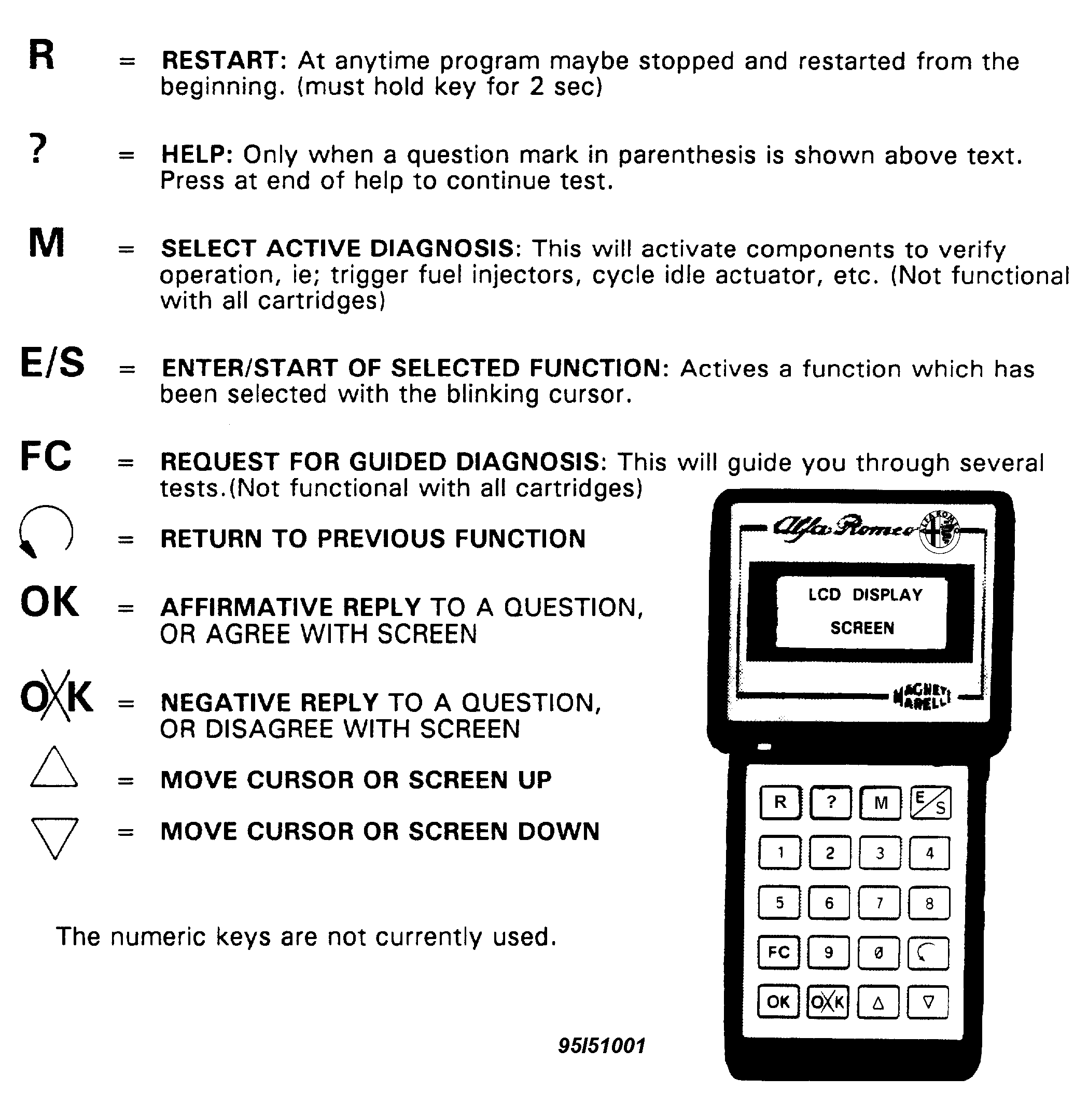

Fig 1: Marelli Tester Keyboard Functions & LCD Display Screen
