Alignment Specifications Table (21.94.01)
Publication date: 1994-10-14Reference number: 21.94.01
ALIGNMENT SPECIFICATIONS TABLE
TECHNICAL SERVICE BULLETIN
Reference Number(s): 21.94.01, Date of Issue:
October 14, 1994
ALIGNMENT SPECIFICATIONS FOR 164
Model(s): 1991-95 Alfa Romeo 164
Group: 21 - Suspension
Bulletin No.: 21.94.0l
Date: October 14, 1994
SERVICE INFORMATION
The alignment specifications for all model year 164's have been revised and simplified.
FRONT & REAR ALIGNMENT SPECIFICATION INFORMATION
FRONT ALIGNMENT SPECIFICATION
| Frt Camber | Frt Caster | Frt Total Toe |
|---|---|---|
| -1.1° to -2.4° | +1.0° to +2.6° | 0 mm to -2 mm |
REAR ALIGNMENT SPECIFICATION
| Rear Camber | Rear Total Toe |
|---|---|
| +0.1° to -1.8 | +4 mm to +6 mm |

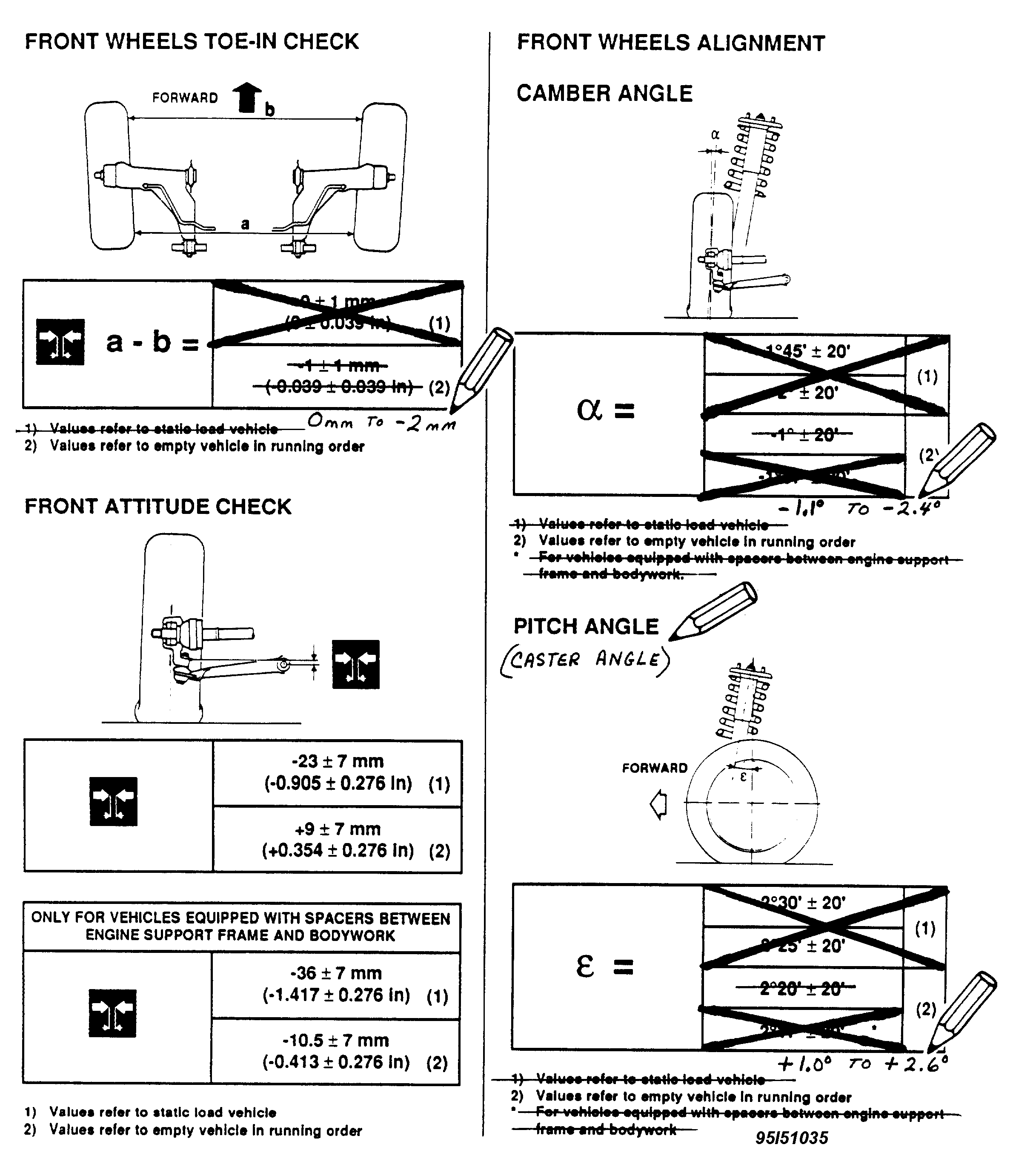

Please, update all of the 1991 & 1994 164 Service Manuals in your dealership by making the corrections within Group 21 on pages 21-12, 21-13, 21-15, 21-27, 21-28, 21-29. Please see Fig 1 .
The locations for the changes are called out by a little pencil.
ALSO:
The statements "Values refer to static load vehicle" and "For Vehicles equipped with spacers between engine support frame and bodywork" will no longer be used.
NOTE:
In the 1991 164 Service Manual the "PITCH ANGLE" is CASTER ANGLE.
