Wiring Diagrams

Fig 1: Graduate, Guadrifoglio & Veloce Ignition Wiring Diagram

G94215

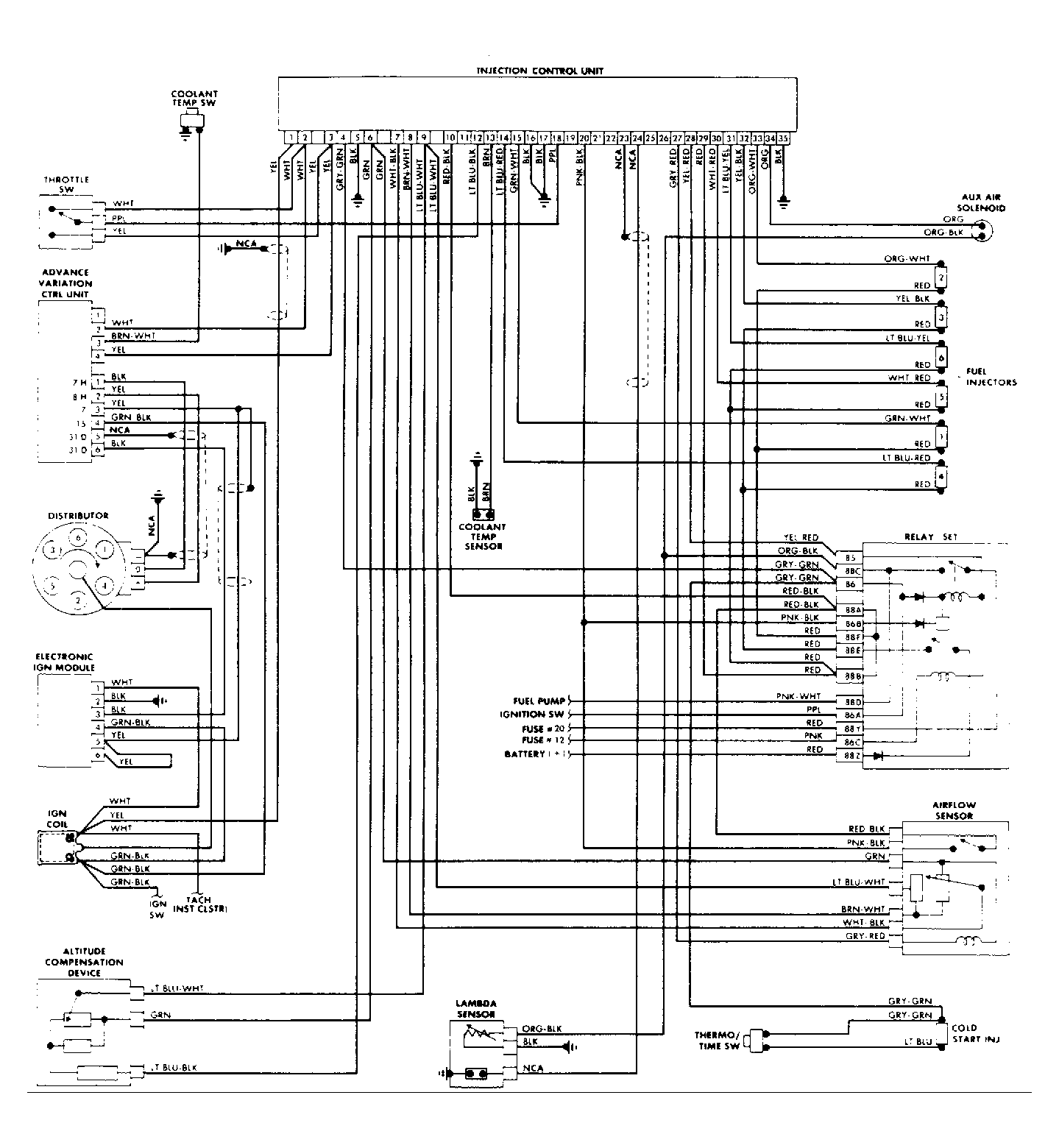

Fig 2: Milano Ignition Wiring Diagram

G94216
