Fuel Evaporation System: Maintenance

Although fuel evaporative system is maintenance-free, all hoses and lines should be checked every 15,000 miles for damage or deterioration.

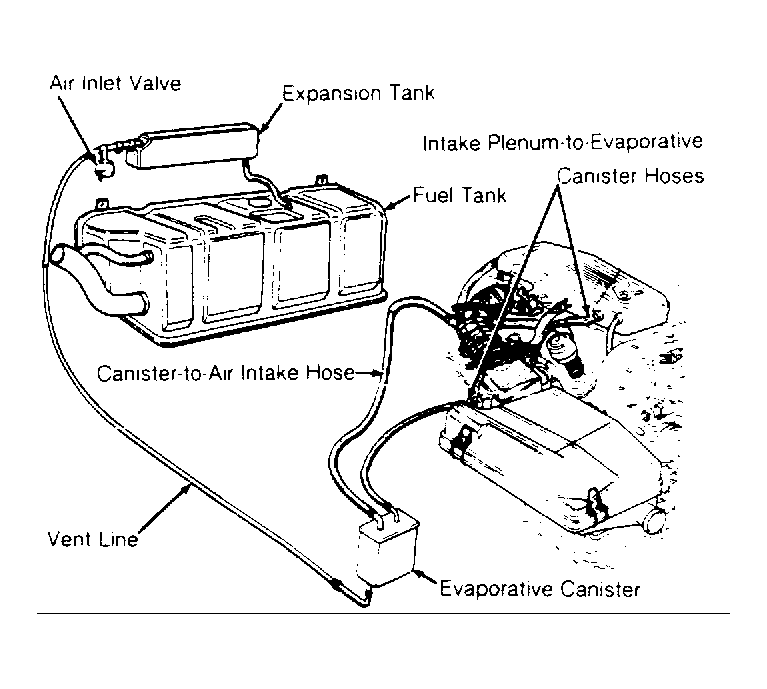

Fig 1: Evaporative System (Graduate, Quadrifoglio & Veloce)

Courtesy of ALFA ROMEO AUTO S.P.A.

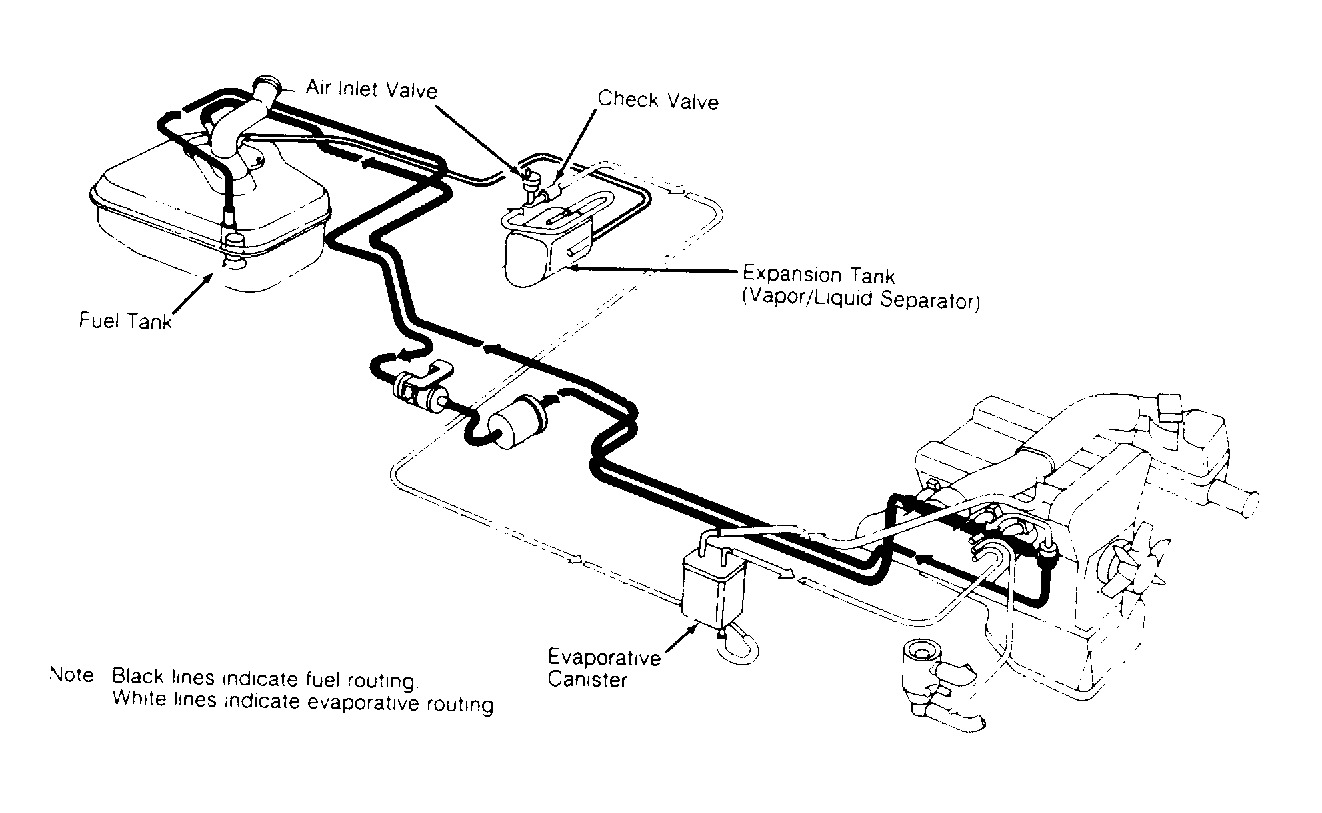

Fig 2: Fuel Evaporative System (Milano)

Courtesy of ALFA ROMEO AUTO S.P.A.
