Wiring Diagrams

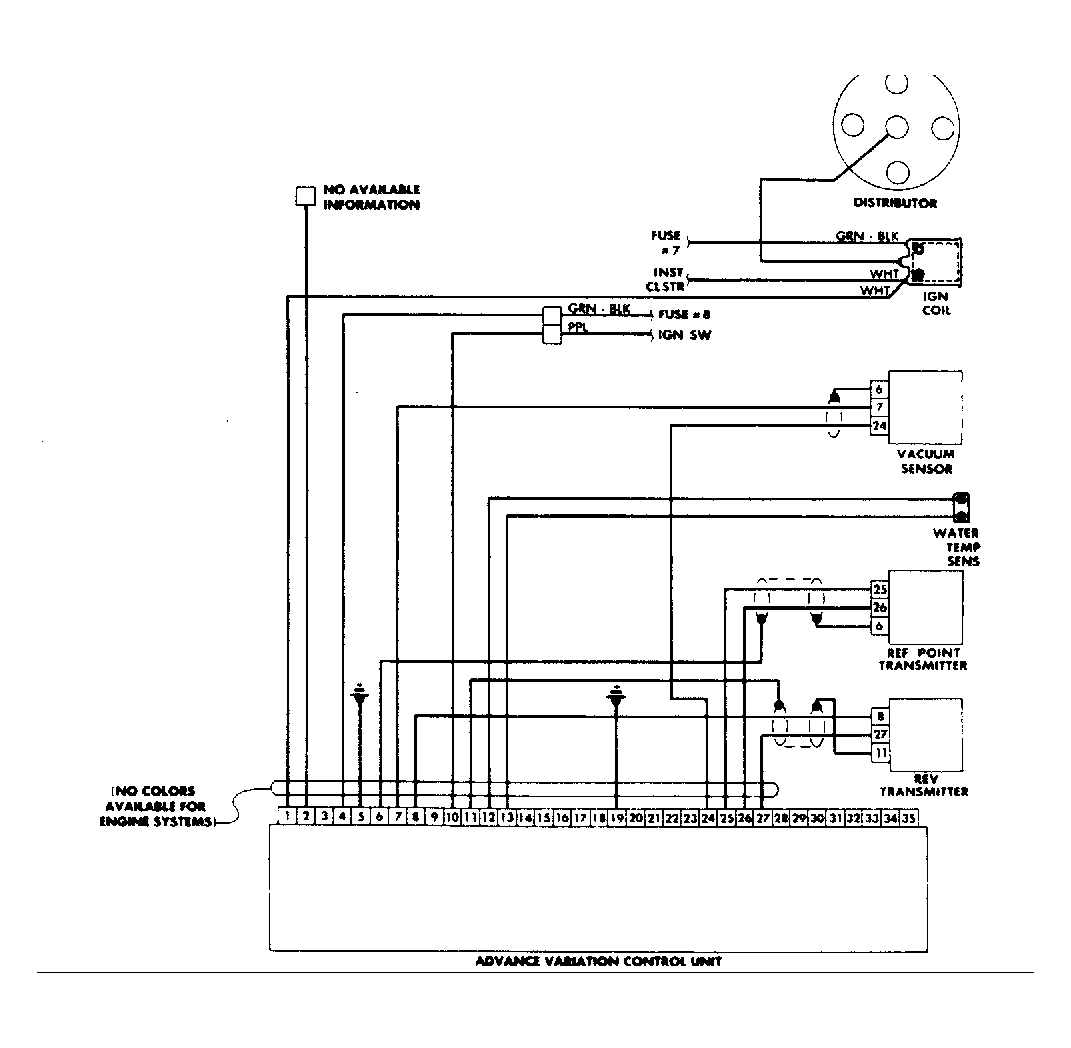

Fig 1: EFI/EZL/VSV Wiring Diagram (Graduate, Quadrifoglio & Veloce)
G61255
Fig 2: EFI/EZL/VSV Wiring Diagram (Milano)
G61257
