Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

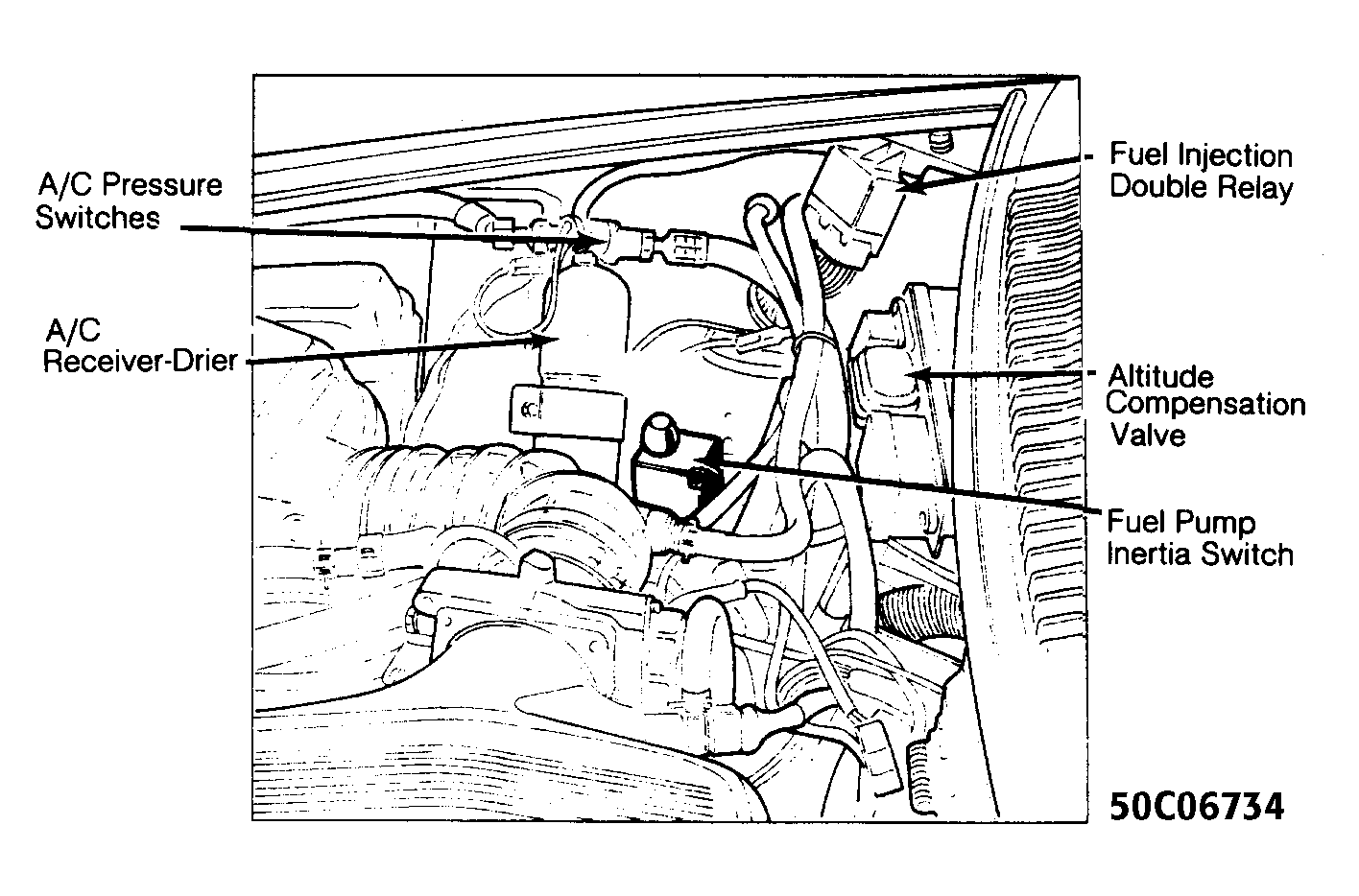

| Altitude Compensation Valve | On bracket attached to wiper motor. See Figure . |
| Battery | In trunk floor under access panel. |
| Catalytic Converter Overheat Monitor | Under right dash behind kick panel. |
| Catalytic Converter Thermocouple | In catalytic converter. |

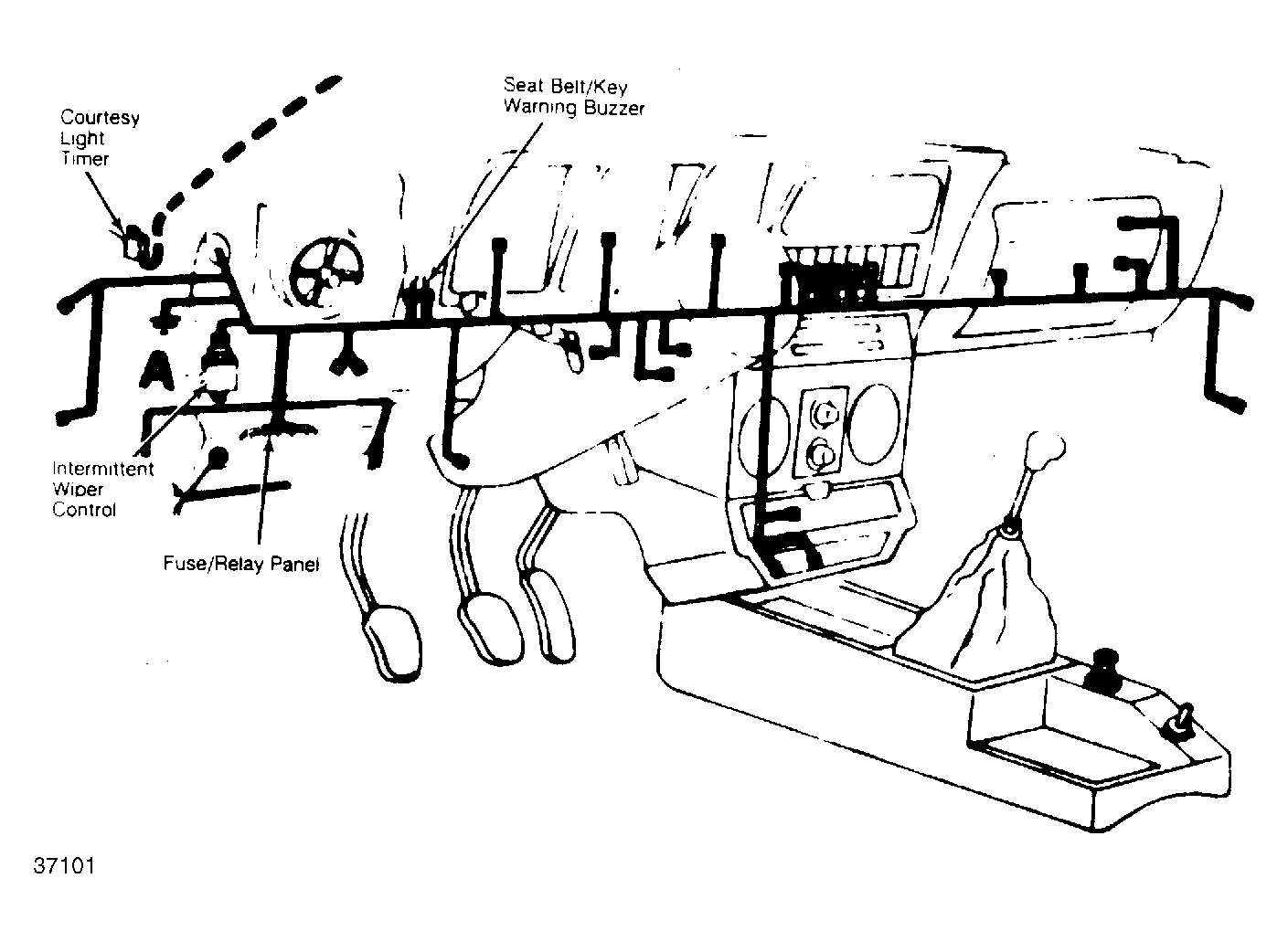

| Fuse/Relay Panel | Under dash on left side. See Figure & Figure . |
| Ignition Amplifier Module | Behind right headlights on inner fender wall. |
| Ignition Series Resistance | On right inner fender wall near ignition amplifier module. |
| Oxygen Sensor Mileage Counter | Under right dash behind kick panel. |
