Door Key Cylinder Switch Test: Test

How to use this manual .

  1. Door Key Cylinder Switch - Test

    Preconditions

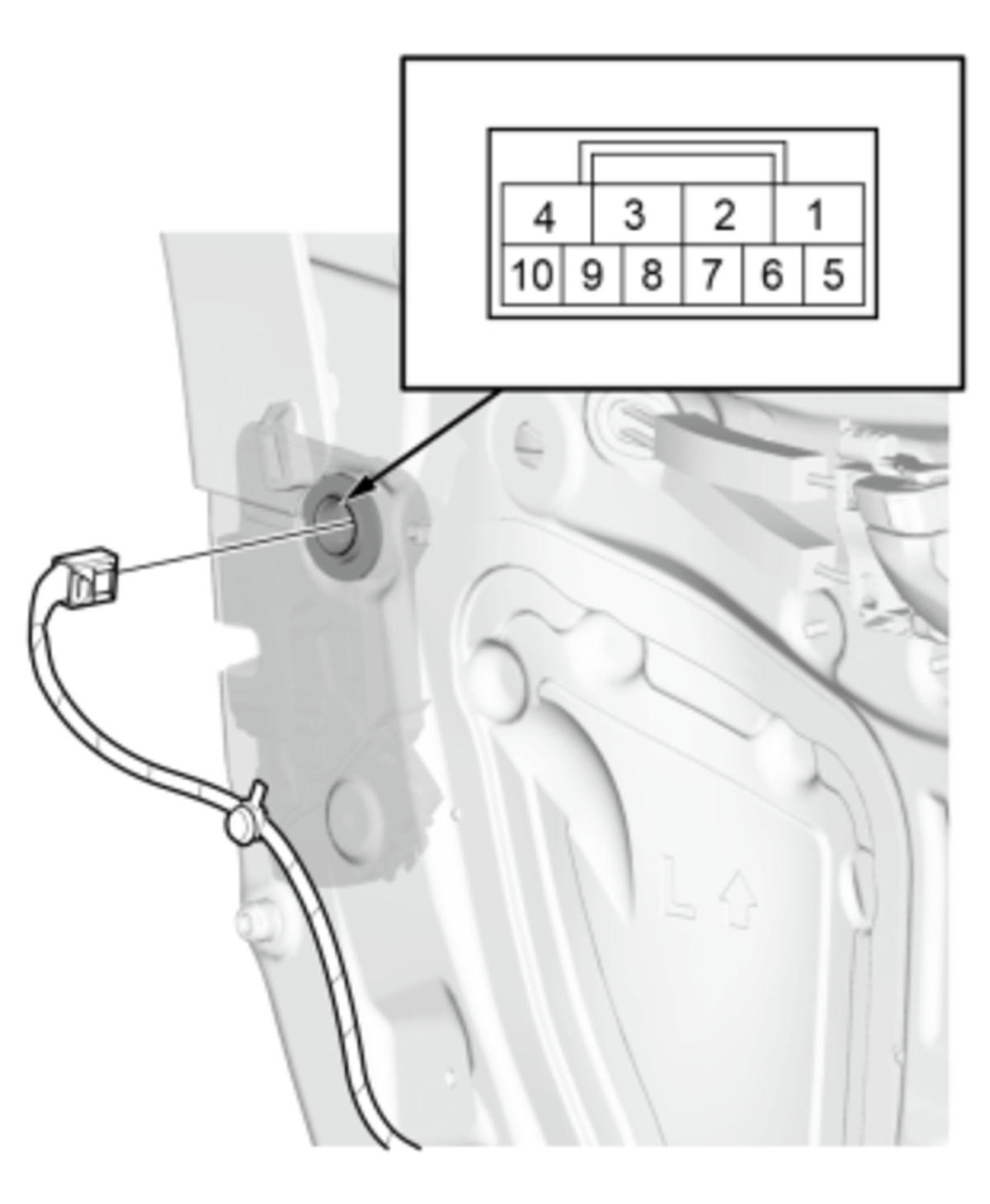

    Figure 1

    GHH562669Courtesy of HONDA, U.S.A., INC.

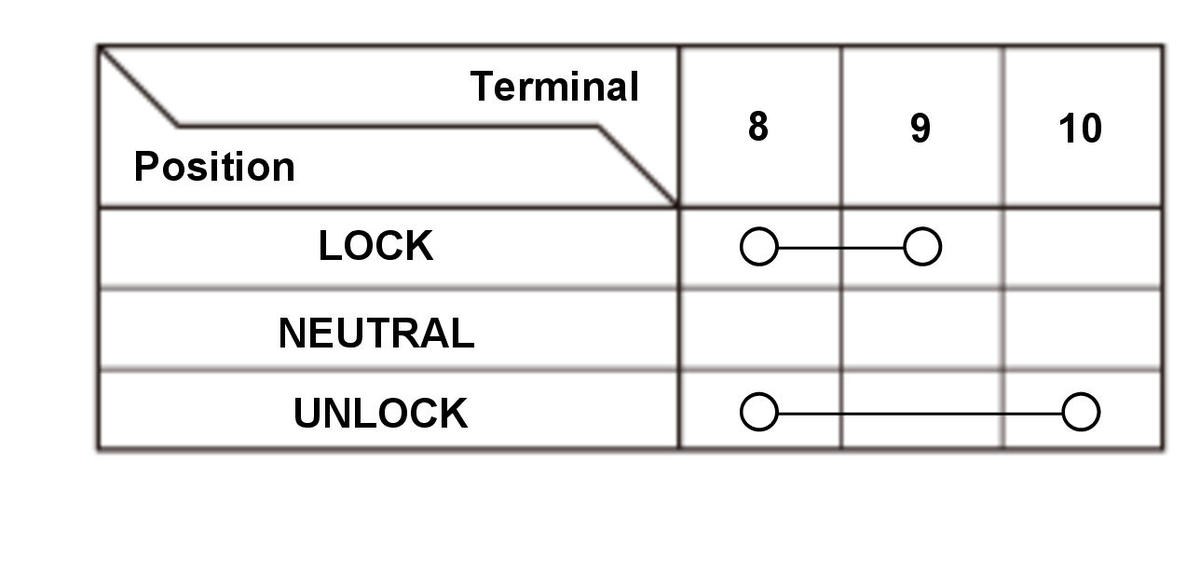

    Figure 2

    GHH562670Courtesy of HONDA, U.S.A., INC.

    Procedure/Specifications

    • Check the switch according to the table. (Figure 1 and 2)

    Result
