Repair Procedure

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

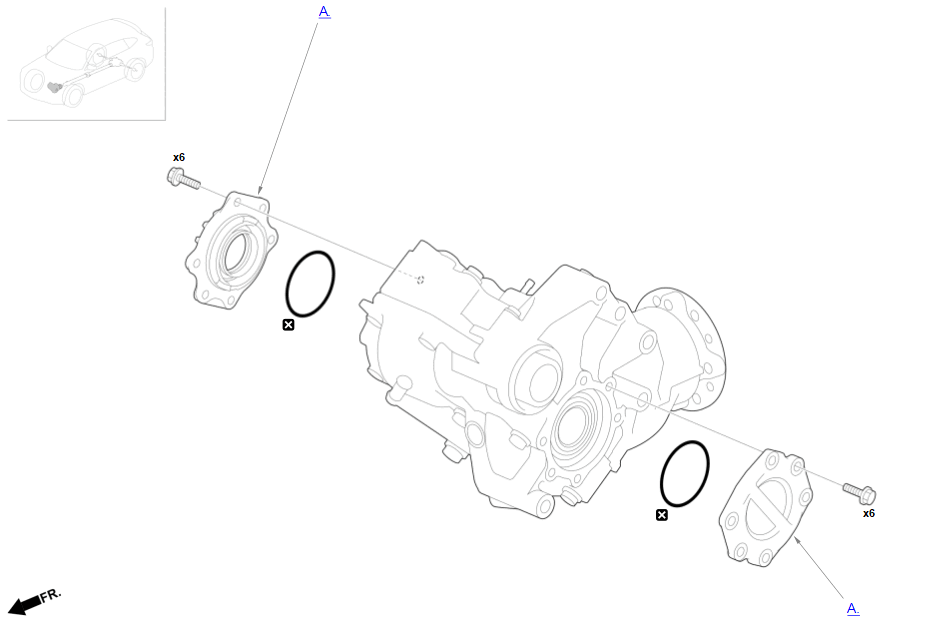

1. A.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Transfer Assembly Fluid

   Tightening Procedure

   Step	Operation	Specification
   1	Temporarily Tighten	10 N.m (7 lbf.ft)

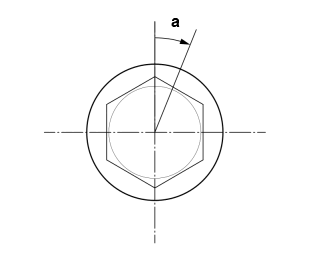

   2	Angle Tighten	a	22 deg.

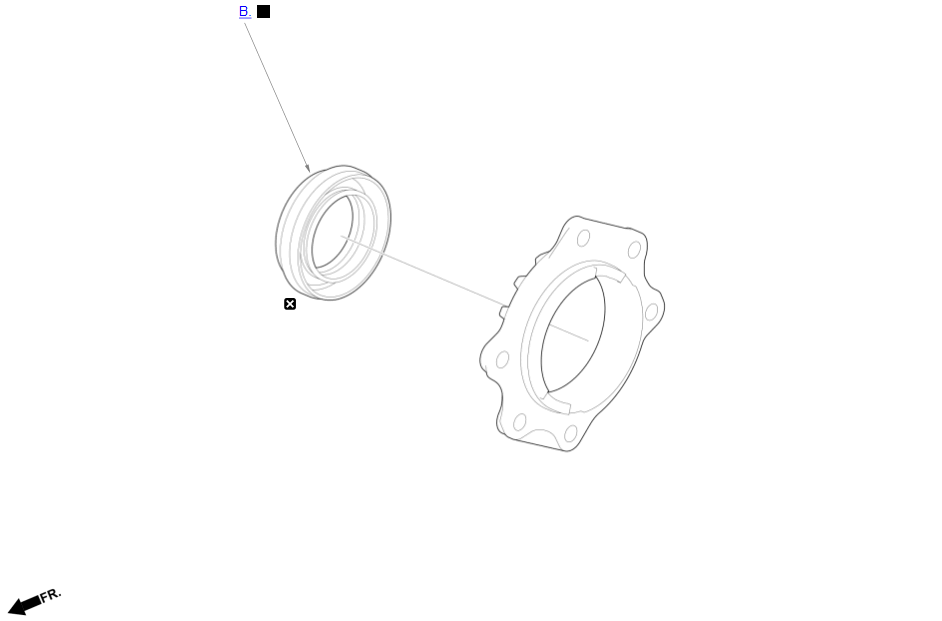

2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Lubricant Specifications

   Position	Type
   a	Transfer Assembly Fluid

   Specifications

   Specification

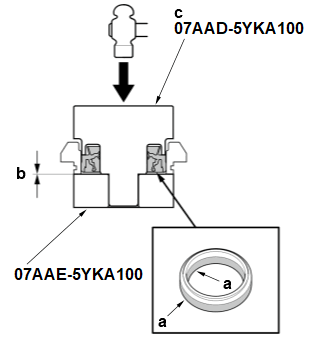

   b	Flush with Housing

   NOTICE:

   Install the oil seal until the oil seal driver (c) has been fully seated.
