Fuse/Relay Box Connector Locations

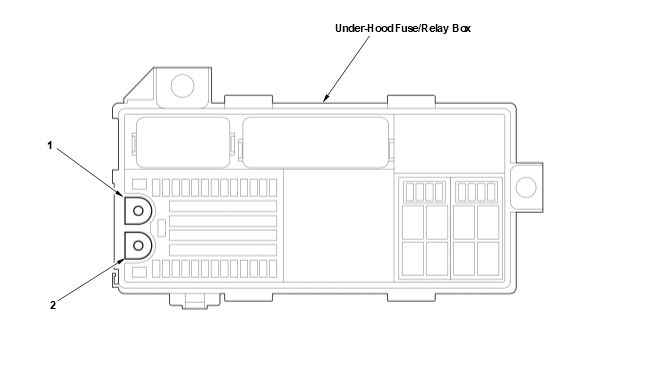

Under-Hood Fuse/Relay Box
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| T1 | 1 | --- | Jump start cable (+B) *1Starter cable *2 | |
| T4 | 2 | --- | Jump start cable (ACG) *1Engine wire harness *2 |
*1: 3.0 L Engine*2: 3.5 L Engine

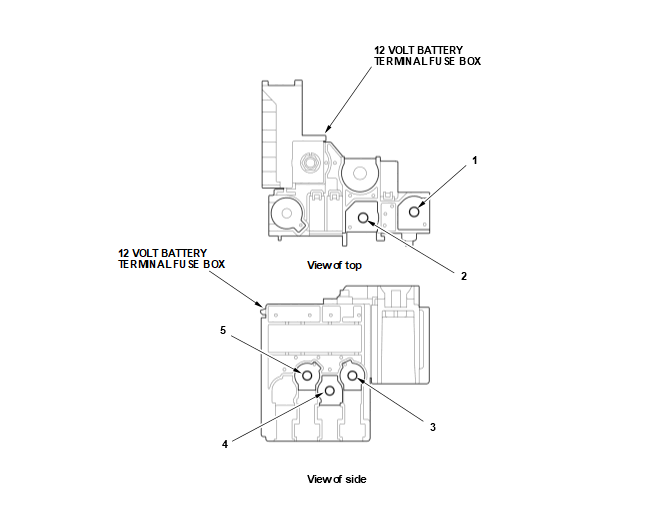

12 Volt Battery Terminal Fuse Box (3.0 L engine)
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| T8 | 1 | --- | 12 volt battery terminal cable | |
| T9 | 2 | --- | 12 volt battery terminal cable | |
| T11 | 3 | --- | Floor wire harness | |
| T12 | 4 | --- | Floor wire harness | |
| T13 | 5 | --- | Floor wire harness |

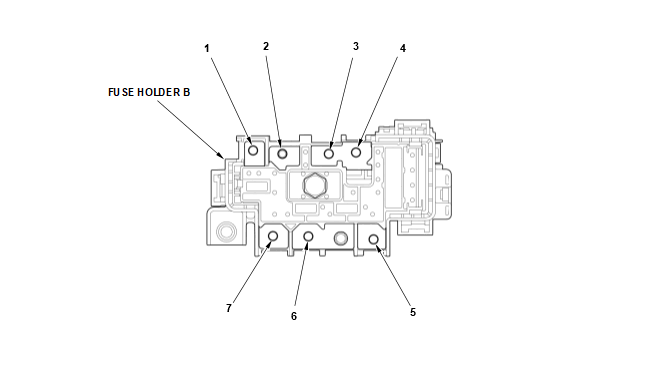

Fuse Holder B (3.0 L engine)
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| T15 | 2 | --- | 12 volt battery terminal cable | |
| T16 | 7 | --- | Starter cable | |
| T17 | 3 | --- | 12 volt battery terminal cable | |
| T18 | 6 | --- | Starter cable | |
| T19 | 5 | --- | Jump start cable (ACG) | |
| T20 | 4 | --- | Jump start cable (+B) | |
| T21 | 1 | --- | Engine compartment wire harness |

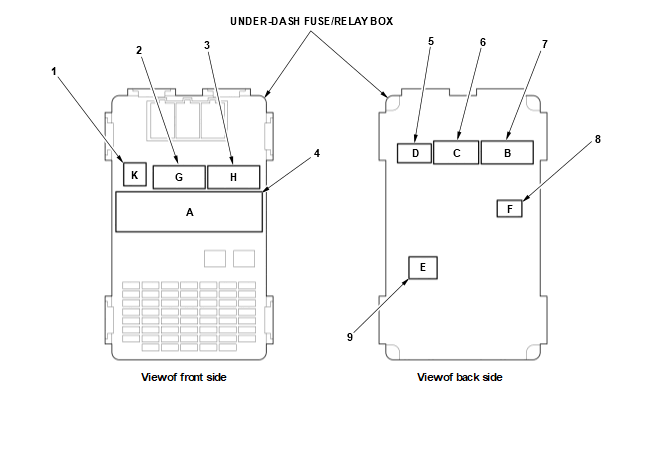

Under-Dash Fuse/Relay Box
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A | 4 | 28 | Engine compartment wire harness | |
| B | 7 | 18 | Dashboard wire harness | |
| C | 6 | 20 | Dashboard wire harness | |
| D | 5 | 16 | Dashboard wire harness | |
| E | 9 | 2 | Dashboard wire harness | |
| F | 8 | 4 | Dashboard wire harness | |
| G | 2 | 18 | Floor wire harness | |
| H | 3 | 18 | Floor wire harness | |
| K (optional connector) | 1 | 6 | Not used |

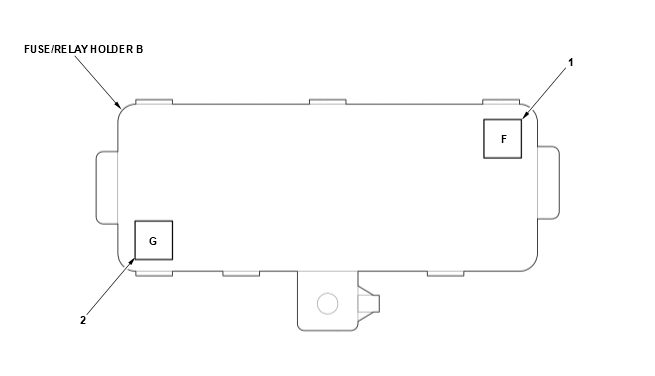

Fuse/Relay Holder B
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| F | 1 | 1 | Floor wire harness | |
| G | 2 | 1 | Floor wire harness |

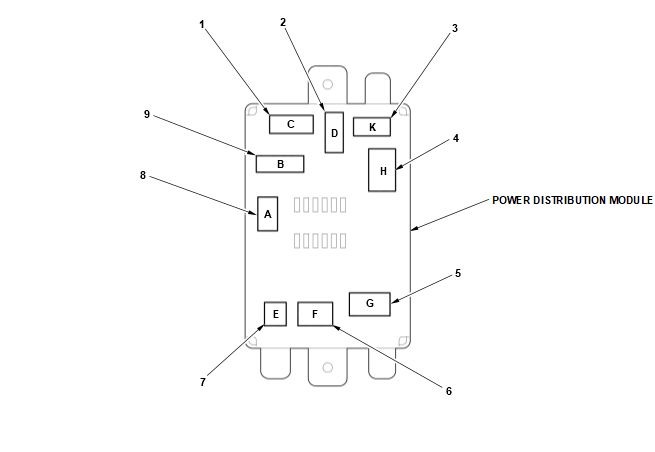

Power Distribution Module
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A | 4 | 2 | Engine compartment wire harness | |
| B | 7 | 3 | Engine compartment wire harness | |
| C | 6 | 18 | Engine compartment wire harness | |
| D | 5 | 4 | Engine compartment wire harness | |
| E | 9 | 1 | Floor wire harness | |
| F | 8 | 3 | Floor wire harness | |
| G | 2 | 5 | Floor wire harness | |
| H | 3 | 5 | Dashboard wire harness | |
| K | 1 | 8 | Dashboard wire harness |
